Center Console Rear Bezel

CENTER CONSOLE REAR BEZEL

REMOVAL

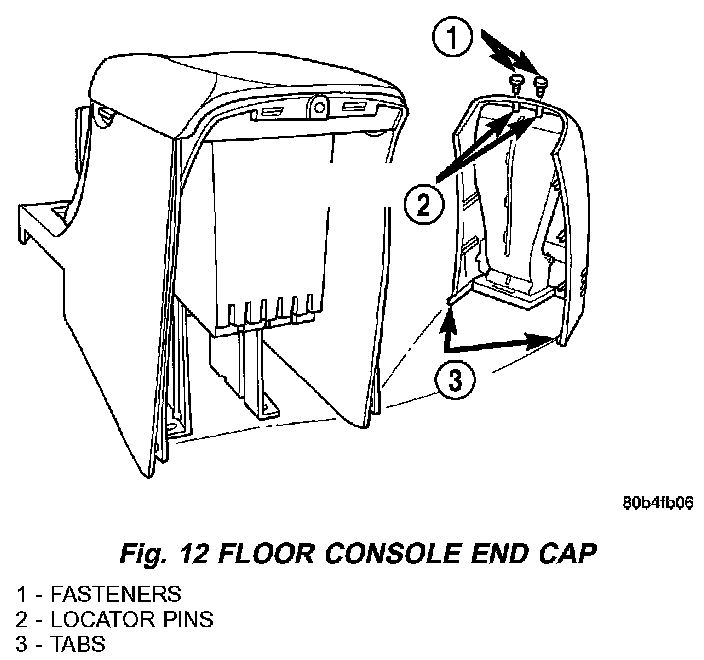

Fig. 12:

1. Disengage tabs on sides at bottom (Fig. 12)
2. Open arm rest lid and remove rear end cap attaching screws.
3. Remove rear bezel.

INSTALLATION

1. Align rear end cap in position on console.
2. Install rear end cap attaching screws.
3. Push forward at the bottom to lock tabs in position.
