Center Console Bezel - Wood Trim

CENTER CONSOLE BEZEL - WOOD TRIM

REMOVAL - WOOD TRIM

1. Remove the center console bezel.

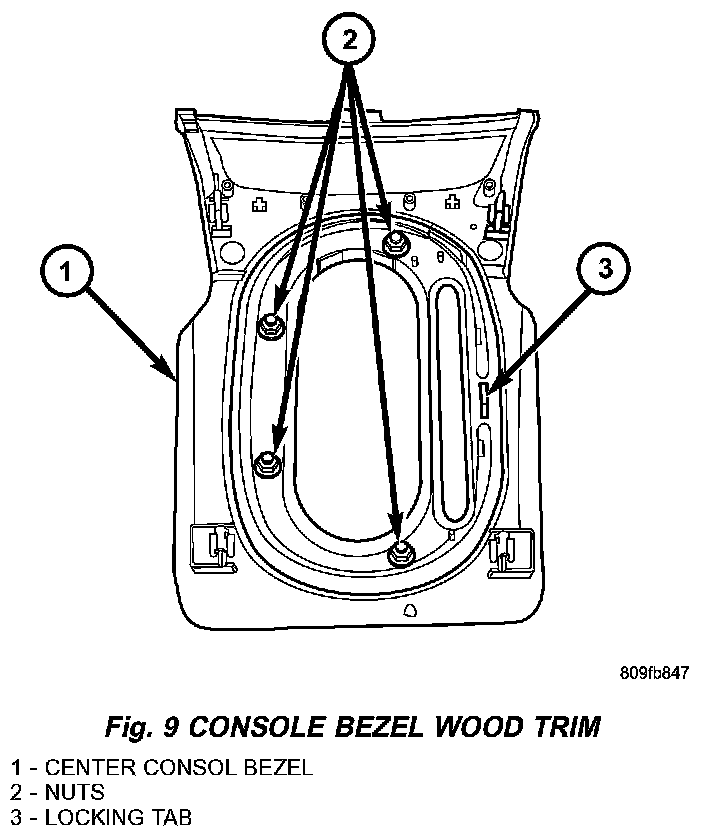

Fig. 9:

2. Remove the nuts (Fig. 9).

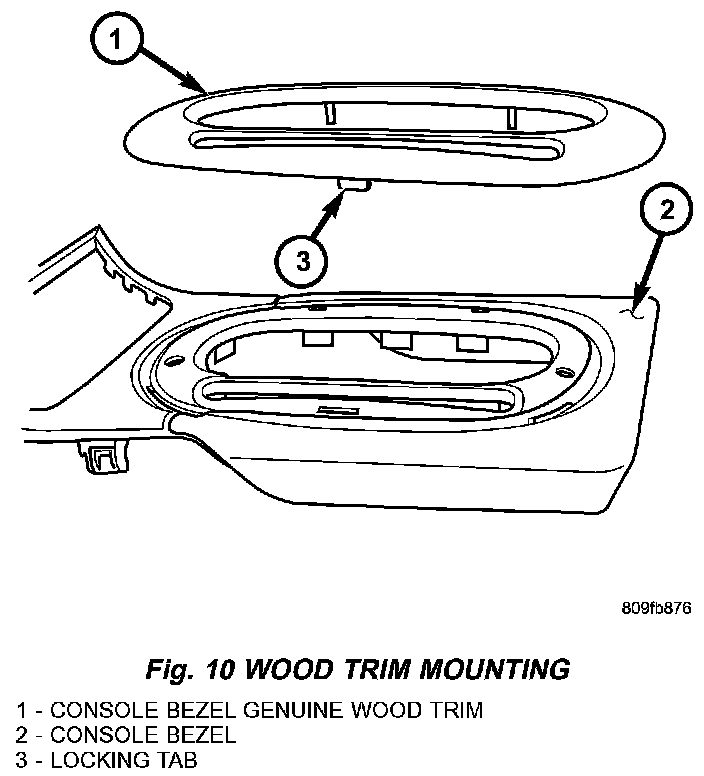

Fig. 10:

3. Remove the wood trim from the bezel (Fig. 10).

INSTALLATION - WOOD TRIM

1. Attach the wood trim to the bezel.

CAUTION: Do not over tighten the nuts or damage to the wood trim may occur.

2. Install the nuts.
3. Install the center console bezel.
