Console: Description and Operation

OVERHEAD CONSOLE SYSTEMS
There are two types of overhead consoles and two available Overhead Travel Information System (OTIS) electronic packages.

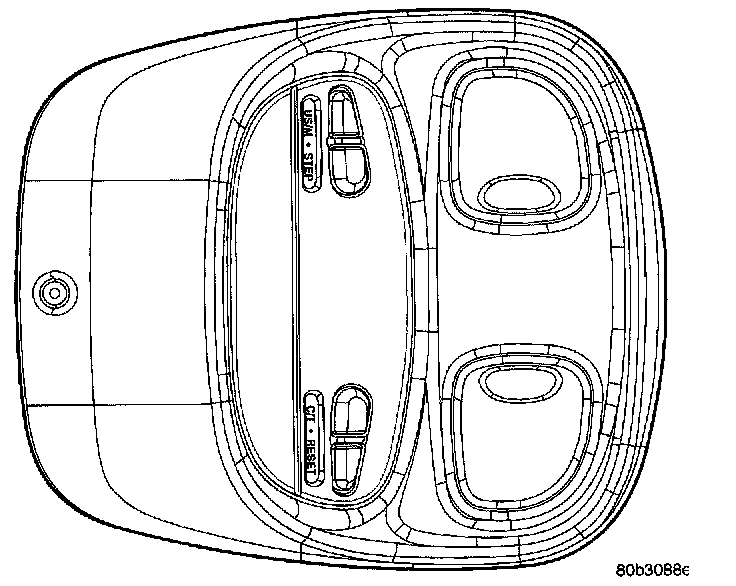

Mini Console Without Universal Transmitter:

1. Mini Console has:
- Overhead Travel Information System (OTIS) without universal Transmitter (OTIS only)
- Two map/courtesy lamps

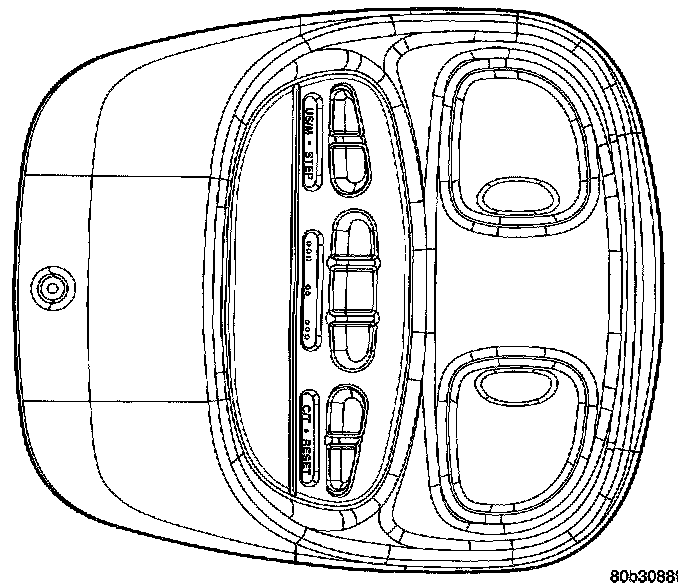

Mini Console With Universal Transmitter:

2. Mini Console has:
- Overhead Travel Information System (OTIS) with Universal Transmitter
- Two map/courtesy lamps
- Universal Transmitter

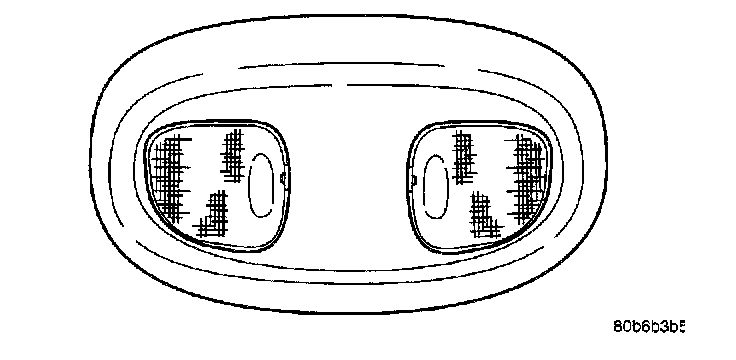

Base Console:

3. Base unit has two map/courtesy lamps.

Refer to the vehicle Owner's Manual for specific operation of each overhead console and its systems.

MAP READING LAMPS
The lamps serve as map reading lamps and also courtesy lamps whenever:
- A door is opened.
- The illuminated entry system is activated.
- The headlamp dimmer switch is rotated up to the courtesy lamp detent.

The map lamps are actuated by pressing on the lens to turn ON the lamp and a second time turn OFF the lamp.

OVERHEAD TRAVEL INFORMATION SYSTEM (OTIS)
Overhead Travel Information System (OTIS) is a module with six informational displays which can be displayed using the four outer buttons. When the vehicle is first turned ON:

- OTIS blanks the display for a half second
- Illuminates all segments of the vacuum fluorescent display (VFD) at full brightness for one and a half seconds
- Displays whatever was being viewed when the ignition was last turned OFF
OTIS may also be integrated with the Universal Transmitter. If so, your OTIS module will have three buttons centered together between the outer four buttons. Below the three buttons are corresponding dots to indicate which button you are using.

THERE ARE 6 DISPLAYS:
- Compass/Temperature
- Average fuel economy
- Distance to empty
- Instantaneous fuel economy
- Trip odometer
- Elapsed time

There are 4 buttons for OTIS operations
The buttons operate when the ignition is in the ON position. The VFD will display the last display before ignition was turned OFF. The four outer buttons operate:
- STEP
- C/T - Compass/Temperature
- US/M - English/Metric
- RESET

1. STEP BUTTON
Pressing the STEP button selects one of the following 5 displays:
- Average fuel economy
- Distance to empty
- Instantaneous fuel economy
- Trip odometer
- Elapsed time
2. C/T (COMPASS/TEMPERATURE) BUTTON
Pressing the C/T button selects the Compass/Temperature display.
3. US/M (ENGLISH/METRIC MEASUREMENT) BUTTON
Pressing the US/M button switches the display units between English and Metric readings.
4. RESET BUTTON
Pressing the RESET button resets the function on the display, provided that function can be reset. The functions which can be reset are Average fuel economy, Trip odometer and Elapsed time.

The RESET button is also used to set the variance and/or calibrate the compass. Refer to the Variance Procedure and Calibration Procedure.

There are three buttons for Universal Transmitter operations
Each button controls an independent channel for transmitter operations. A house shaped icon will be illuminated along with the corresponding number of dots located at the bottom of the icon.

The Universal Transmitter will operate most:
- Garage door opener (rolling code and non-rolling code)
- Gate openers
- Home/Office lighting and/or security system(s)

The transmitter is powered by the M1 circuit.
