Rear Fender Liner: Service and Repair

REAR WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Hoist and support vehicle on safety stands.
2. Remove rear wheel.

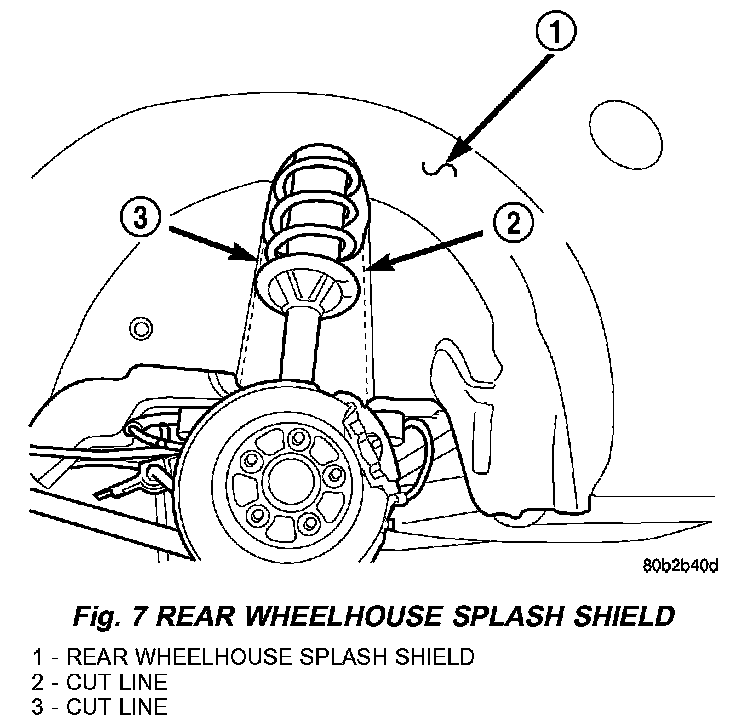

Fig. 7:

3. Remove fasteners attaching splash shield. (Fig. 7)
4. The shock tower area will have to be cut out of the splash shield. This will ease the removal or Installation of the slash shield.
5. Remove splash shield from vehicle.

INSTALLATION

1. Place splash shield in position on vehicle with the shock tower cut out.
2. Install fasteners to hold splash shield place.
3. Install rear wheel.
4. Lower vehicle.
