Cowl Moulding / Trim: Service and Repair

COWL GRILLE AND SCREEN

REMOVAL

1. Release hood latch and open hood.
2. Remove wiper arms.

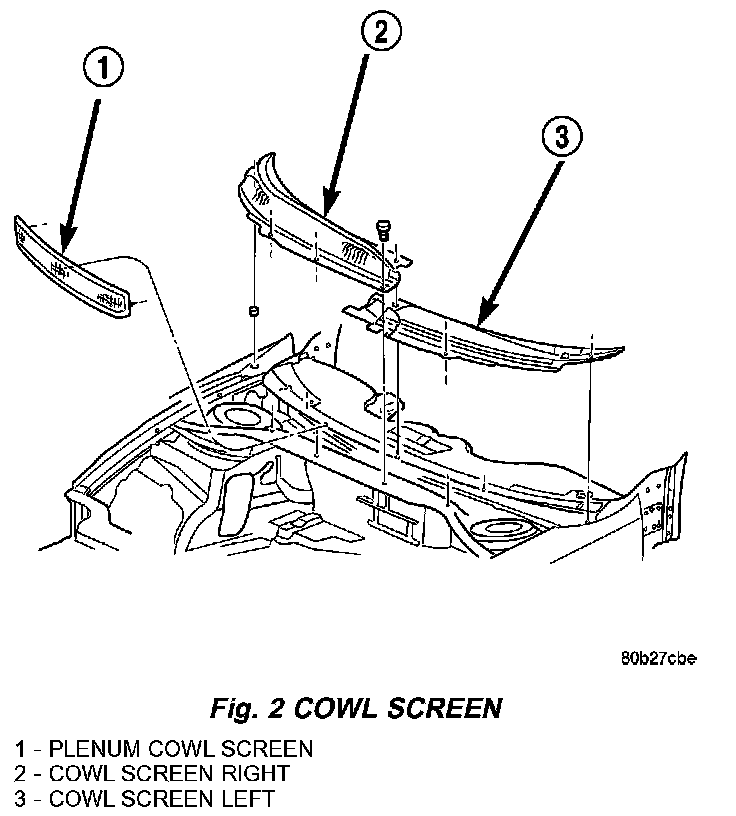

Fig. 2:

3. Remove screws attaching cowl screen at the windshield and under hood (Fig. 2).
4. Remove cowl screen from vehicle.

INSTALLATION

1. Place cowl screen in position on vehicle.
2. Install cowl screen screws, starting at fender moving inboard.
3. Install wiper arms.
