Trunk / Liftgate Lock Cylinder: Service and Repair

LOCK CYLINDER

REMOVAL

1. Open decklid.
2. Remove fasteners attaching decklid lining to rear of decklid.

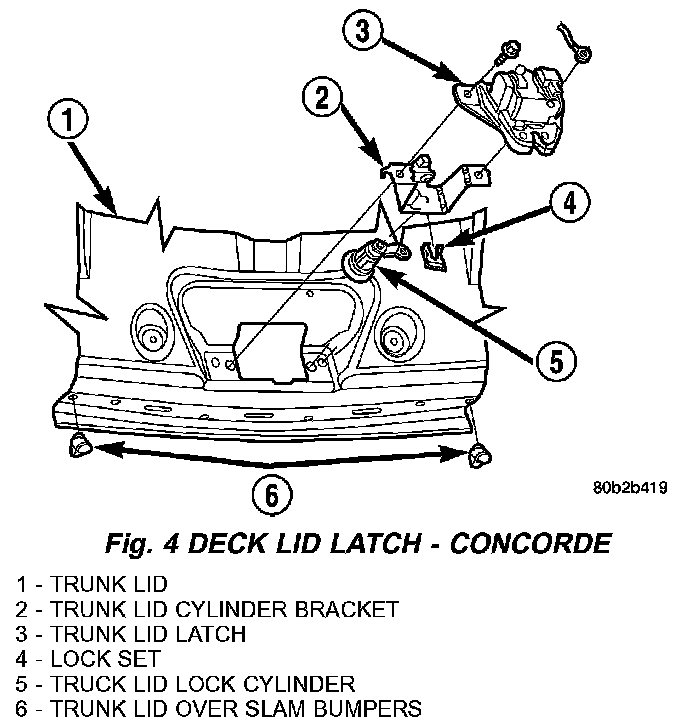

Fig. 4:

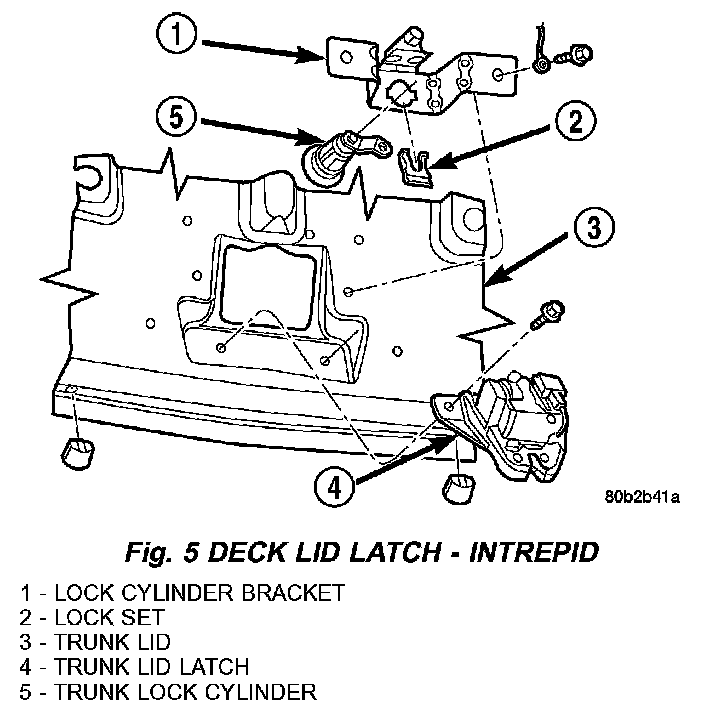

Fig. 5:

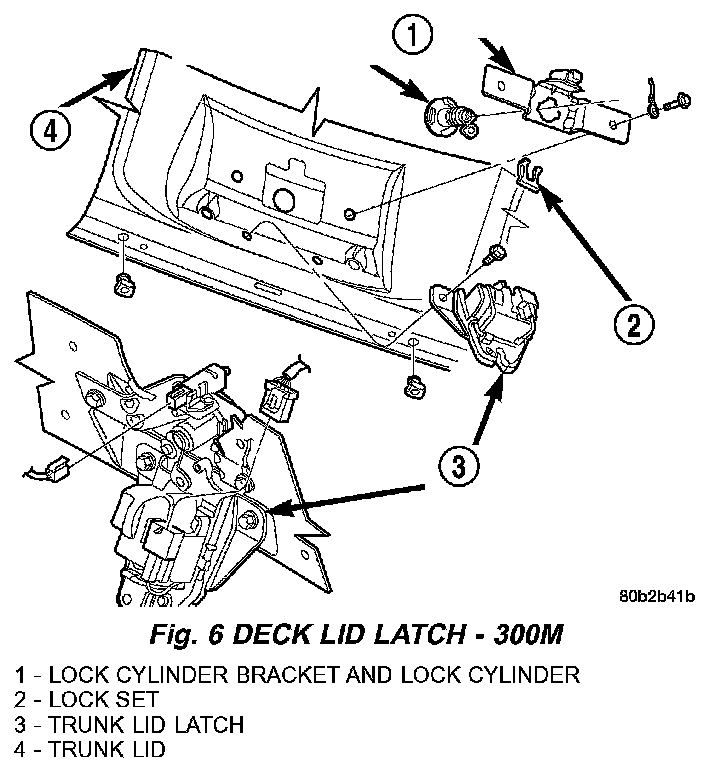

Fig. 6:

3. Remove bolts attaching decklid latch to decklid (Fig. 4) , (Fig. 5) or (Fig. 6).
4. Remove decklid latch from decklid.
5. Disconnect power lock connector from latch solenoid.
6. Disconnect decklid ajar switch connector from latch.
7. Remove latch from vehicle.
8. Remove decklid lock set.
9. Remove decklid lock cylinder.

INSTALLATION

1. Install decklid lock cylinder.
2. Install decklid lock set.
3. Place latch in position on vehicle.
4. Connect decklid ajar switch connector on latch.
5. Connect power lock connector on latch solenoid.
6. Place decklid latch in position on decklid.
7. Install bolts to attach decklid latch to decklid.
8. Adjust decklid latch for proper decklid to quarter panel alignment and weatherstrip sealing.
9. Install fasteners to attach decklid lining to rear of decklid.
10. Verify decklid latch operation.
