Trunk / Liftgate Interior Trim Panel: Service and Repair

WHEELHOUSE SILENCER

REMOVAL

1. Remove rear seat back.
2. Remove lower quarter trim. Refer to Trim Panel.
3. Remove front trunk push pin and fold trunk carpet down.
4. Remove fasteners attaching silencer to wheel house.

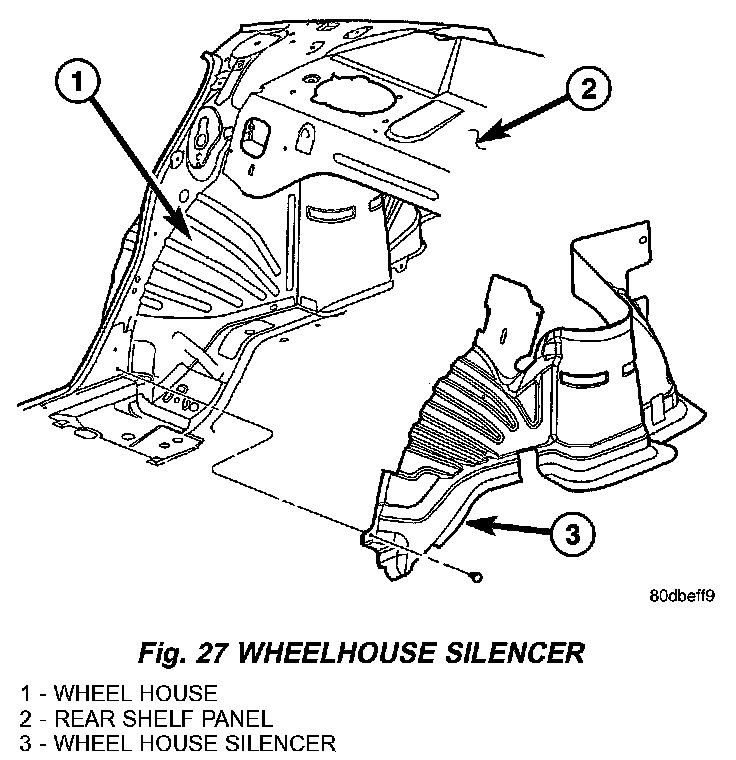

Fig. 27:

5. Remove silencer from vehicle (Fig. 27).

INSTALLATION

1. Place silencer into position on the wheel house (Fig. 27).
2. Install fasteners attaching silencer to wheel house.
3. Install lower quarter trim.
4. Install rear seat back.
