Removal and Replacement

DECKLID

REMOVAL

1. Release decklid latch and open decklid.
2. Mark hinge locations on inside of decklid to aid installation.
3. Disconnect the wire harness connector, if equipped.
4. Remove bolts attaching top of hinge to decklid.

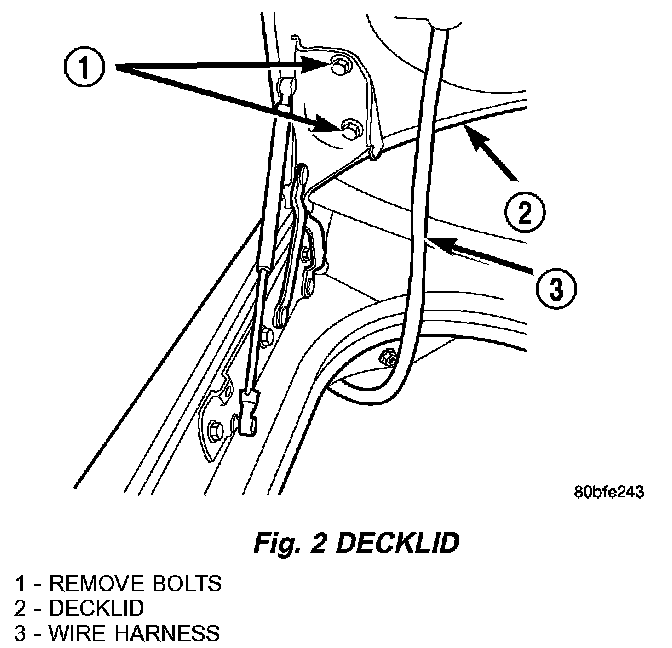

Fig. 2:

5. Remove bolts attaching bottom of hinge to decklid (Fig. 2).
6. With aid from a helper, remove decklid from vehicle.

INSTALLATION

1. With aid from a helper, place decklid in position on vehicle.
2. Install bolts attaching bottom of hinge to deck-lid.
3. Install bolts to attach top of hinge to decklid.
4. Connect wire harness connector.
5. Align decklid to achieve equal spacing on all sides and flush across gaps.
6. Verify decklid operation and sealing.
