Rear Door Limiter: Service and Repair

CHECK STRAP

REMOVAL

1. Raise door glass.
2. Remove door trim panel.
3. Remove watershield as necessary.
4. Remove bolt and nut attaching check strap to door end and body.

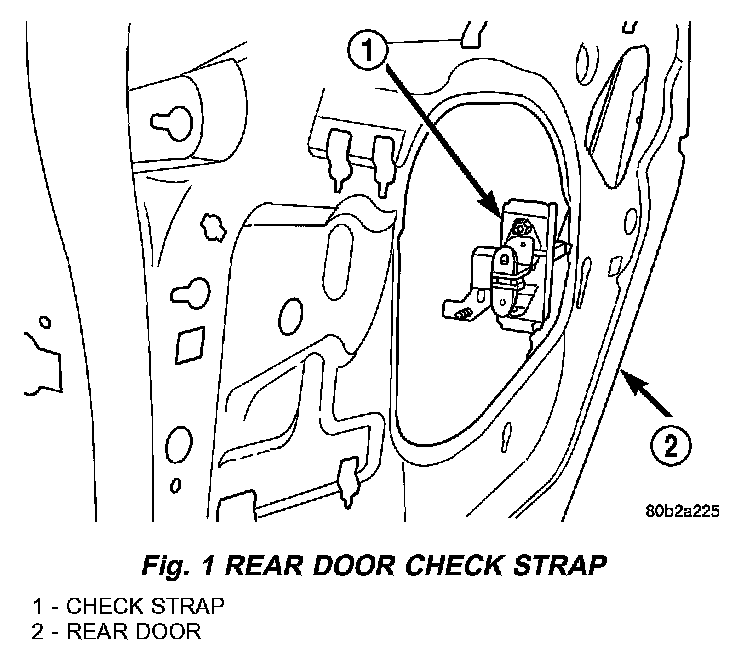

Fig. 1:

5. Remove check strap from vehicle (Fig. 1).

INSTALLATION

1. Place check strap in position on vehicle.
2. Install bolt and nut attaching check strap to door end and body.
3. Verify check strap operation.
4. Install watershield.
5. Install door trim panel.
