Rear Door Latch: Service and Repair

LATCH

REMOVAL

1. Close door glass.
2. Remove door trim panel.
3. Remove rear glass channel.
4. Disconnect lock button link from door latch.
5. Disconnect outside door handle link from door latch.

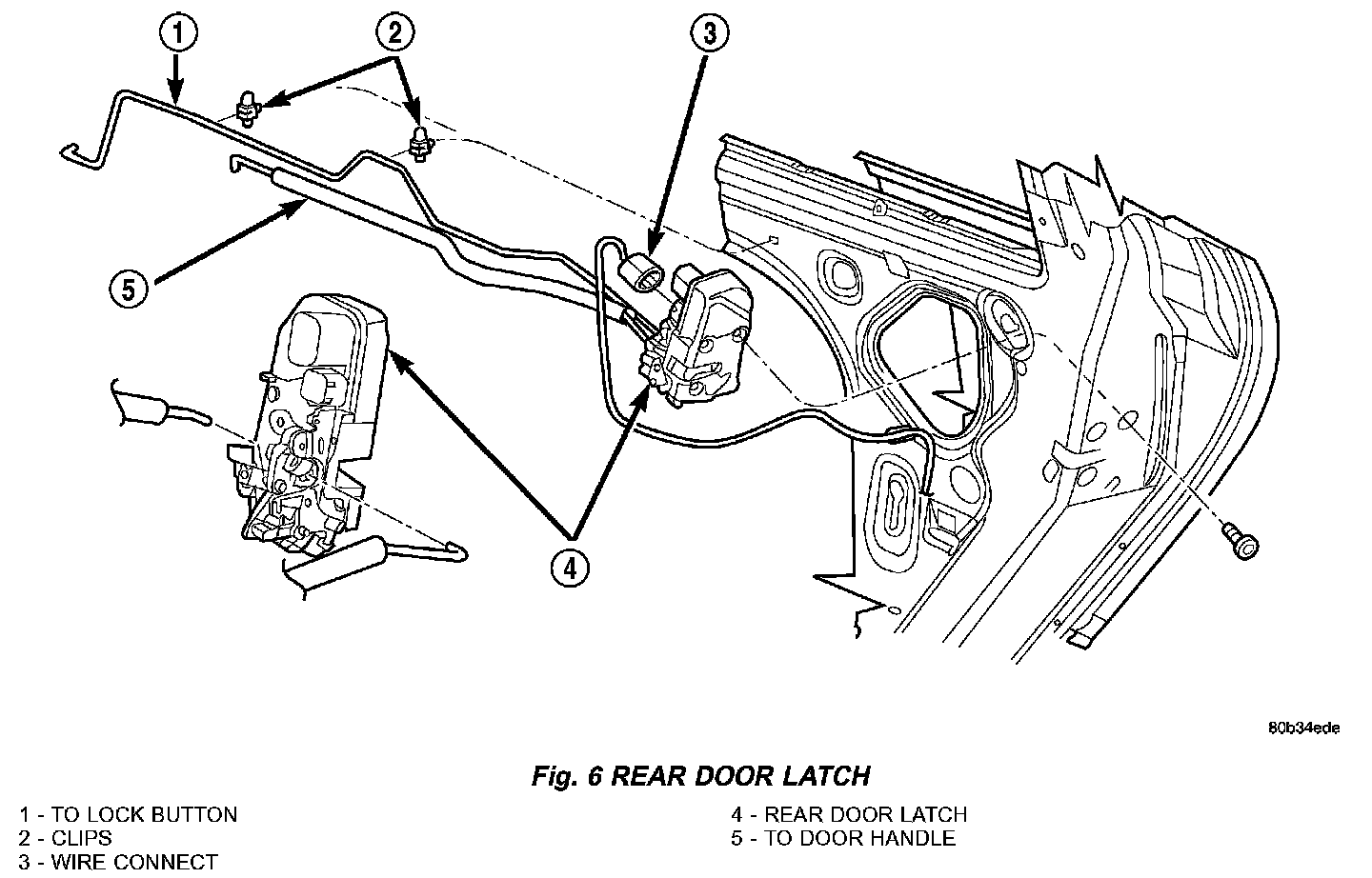

Fig. 6:

6. Remove screws attaching door latch to door end frame (Fig. 6).
7. Remove latch from door.

INSTALLATION

1. Place latch in position in door.
2. Install screws attaching door latch to door end frame.
3. Connect outside door handle link to door latch.
4. Connect lock button link to door latch.
5. Install rear glass channel.
6. Verify door latch operation.
7. Install door trim panel.
