Front Door Striker: Service and Repair

LATCH STRIKER

REMOVAL

1. Open front door.
2. Mark location of door latch striker on B-pillar to assist installation alignment.

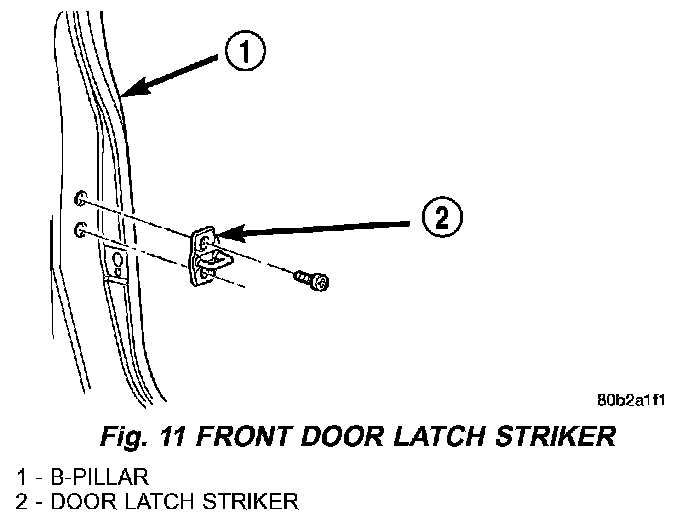

Fig. 11:

3. Remove bolts holding striker to B-pillar (Fig. 11).
4. Remove door latch striker from vehicle.

INSTALLATION

1. Place door latch striker in position on vehicle.
2. Install bolts attaching striker to B-pillar.
3. Verify alignment and operation of door, adjust as necessary.
