Front Door Limiter: Service and Repair

CHECK STRAP

REMOVAL

1. Place door glass in the full up position.
2. Remove door trim panel.
3. Remove watershield as necessary.
4. Remove bolts attaching check strap to door end frame and body.

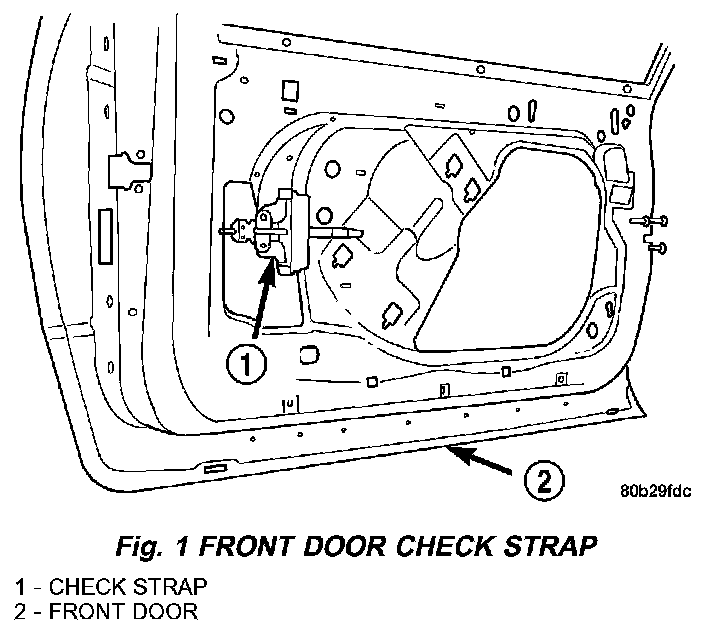

Fig. 1:

5. Remove check strap from vehicle (Fig. 1).

INSTALLATION

1. Place check strap in position on vehicle.
2. Install bolts attaching check strap to door end frame and body.
3. Install watershield.
4. Install door trim panel.
