Overhead Travel Information System (OTIS) Module Replacement

REMOVAL
1. Remove overhead console, refer to Console Removal and Installation.

OTIS Removal:

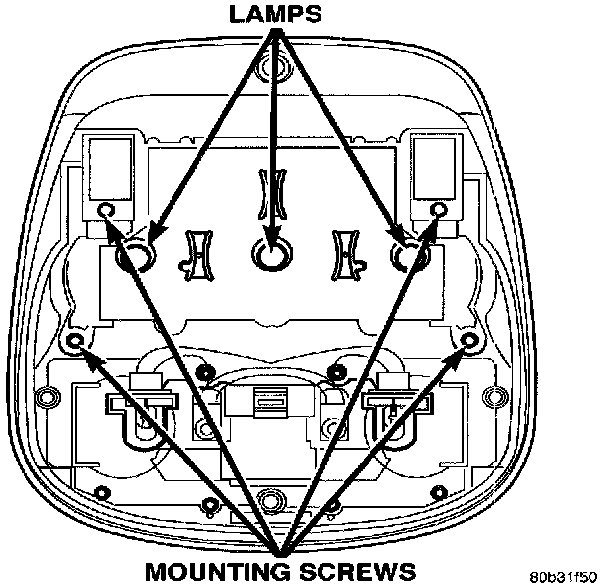

2. Remove mounting screws and release the map lamp wire connector from the OTIS.
3. Remove the OTIS from overhead console.

INSTALLATION
For installation, reverse the above procedures. Align the OTIS guides on the housing with the grooves of the console. Make sure the LOOP of wire that was clipped into the OTIS module housing is properly clipped into the new module before the console is placed back into the headliner.
