Rear Door Speakers (Infinity II)

Rear Door Speaker:

REMOVAL

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Open rear door.

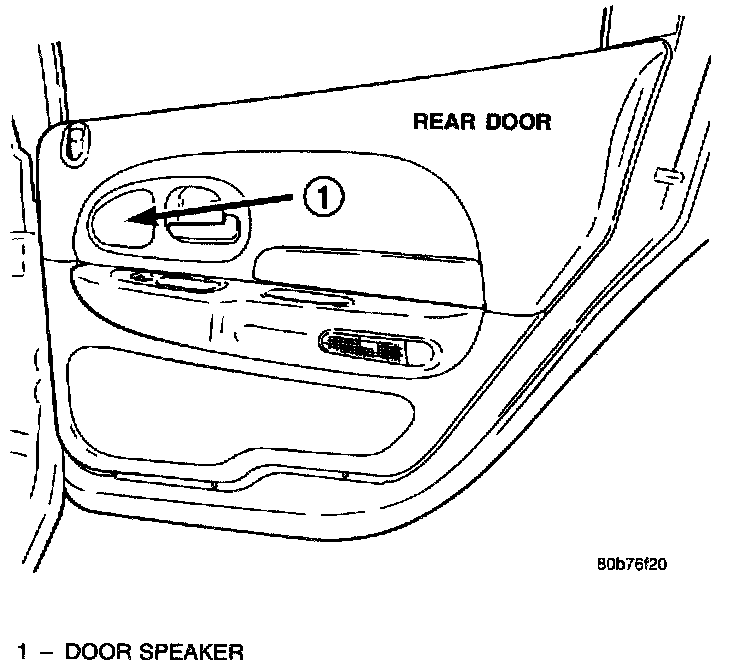

3. Using a trim stick (special tool # C-4755), carefully pry speaker grille away from door trim panel.
4. Remove two speaker retaining screws.
5. Pull speaker away from door and disconnect wiring.

INSTALLATION
For installation, reverse the above procedures.
