P1799

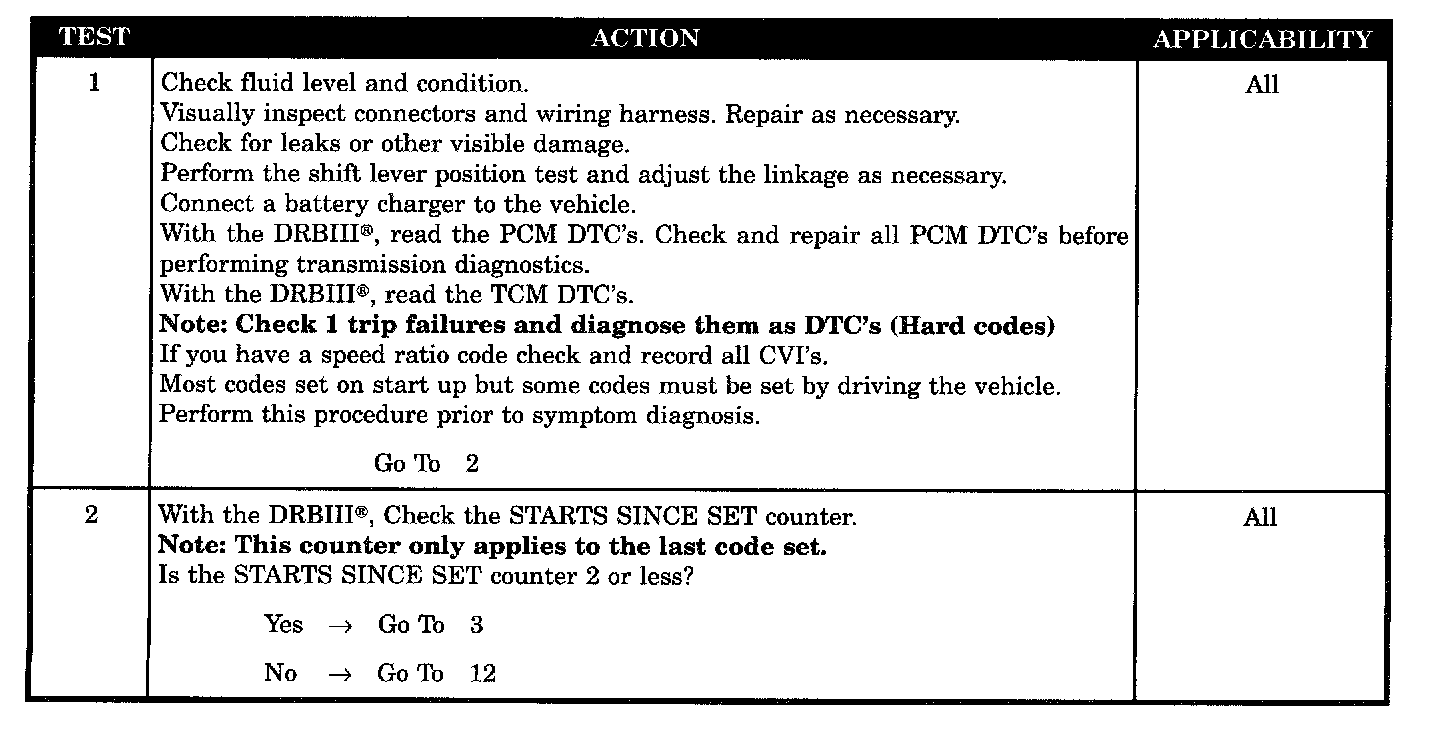

Test 1 Through 2:

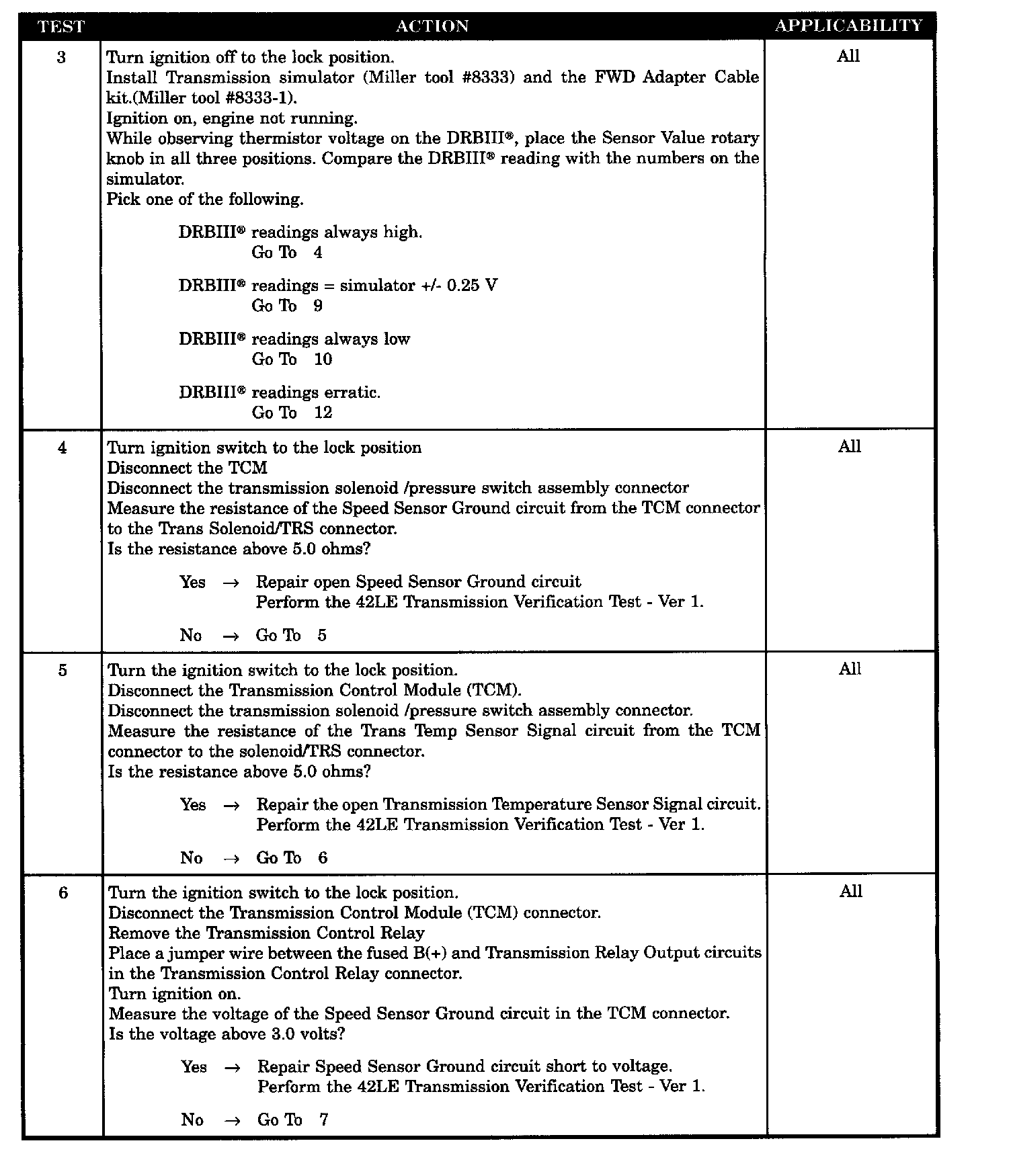

Test 3 Through 6:

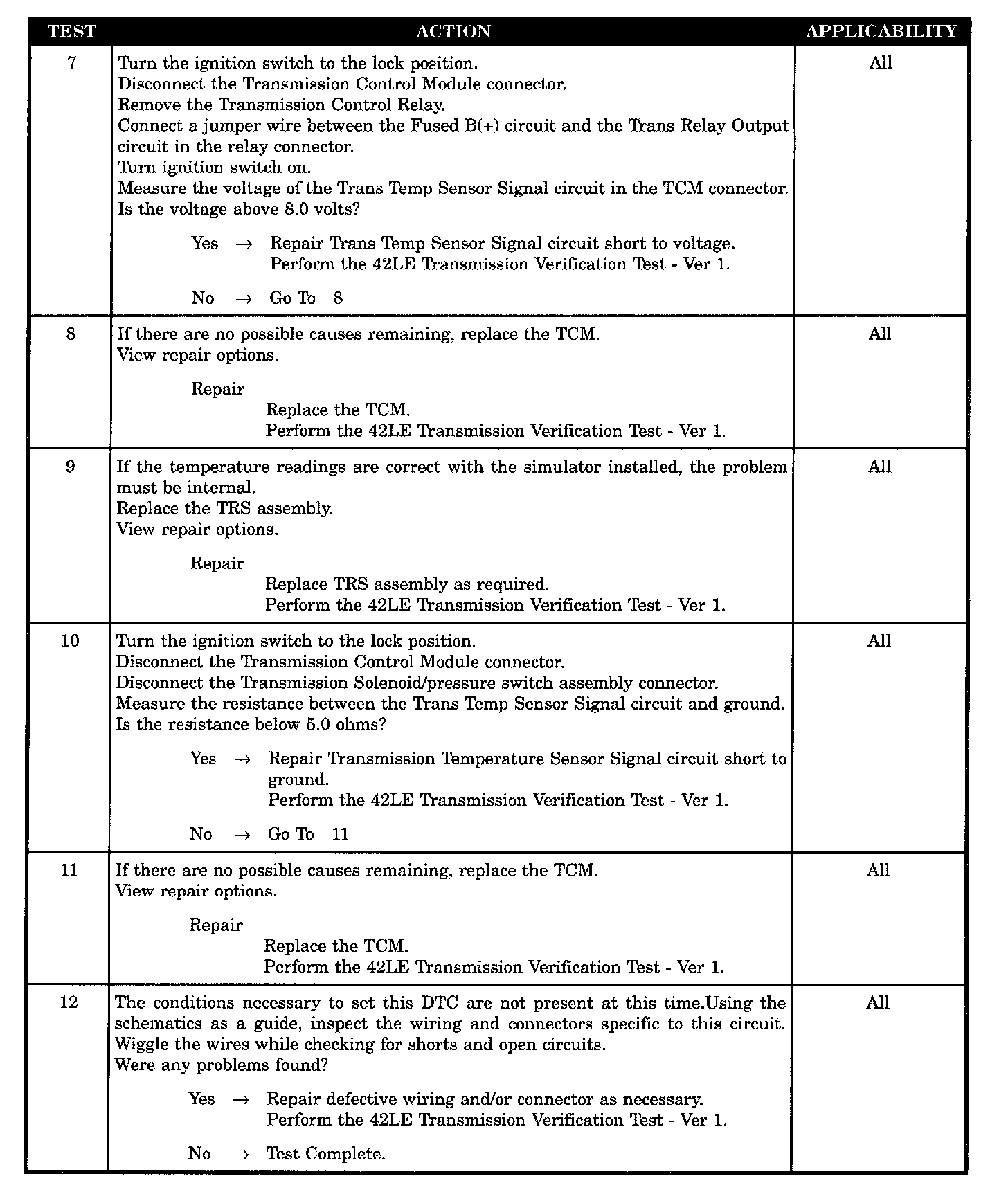

Test 7 Through 12:

SYMPTOM:
P1799-CALCULATED OIL TEMP IN USE

When Monitored and Set Condition:
P1799-CALCULATED OIL TEMP IN USE

When Monitored:
Whenever the engine is running. The code is set if any of the following conditions exist for three consecutive key starts: The thermistor voltage is out of range (below 0.70 volts or greater than 4.94 volts)

Set Condition:
If continuous erratic thermistor voltage is sensed. The thermistor temperature stays below 80°F for an extended period time.

POSSIBLE CAUSES
INTERMITTENT WIRING & CONNECTORS CONDITIONS
TRANSMISSION TEMPERATURE SENSOR INOPERATIVE
SPEED SENSOR GROUND CIRCUIT OPEN
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN
SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
REPLACE TCM HI (TTS)
REPLACE TCM LO (TTS)
