P1798

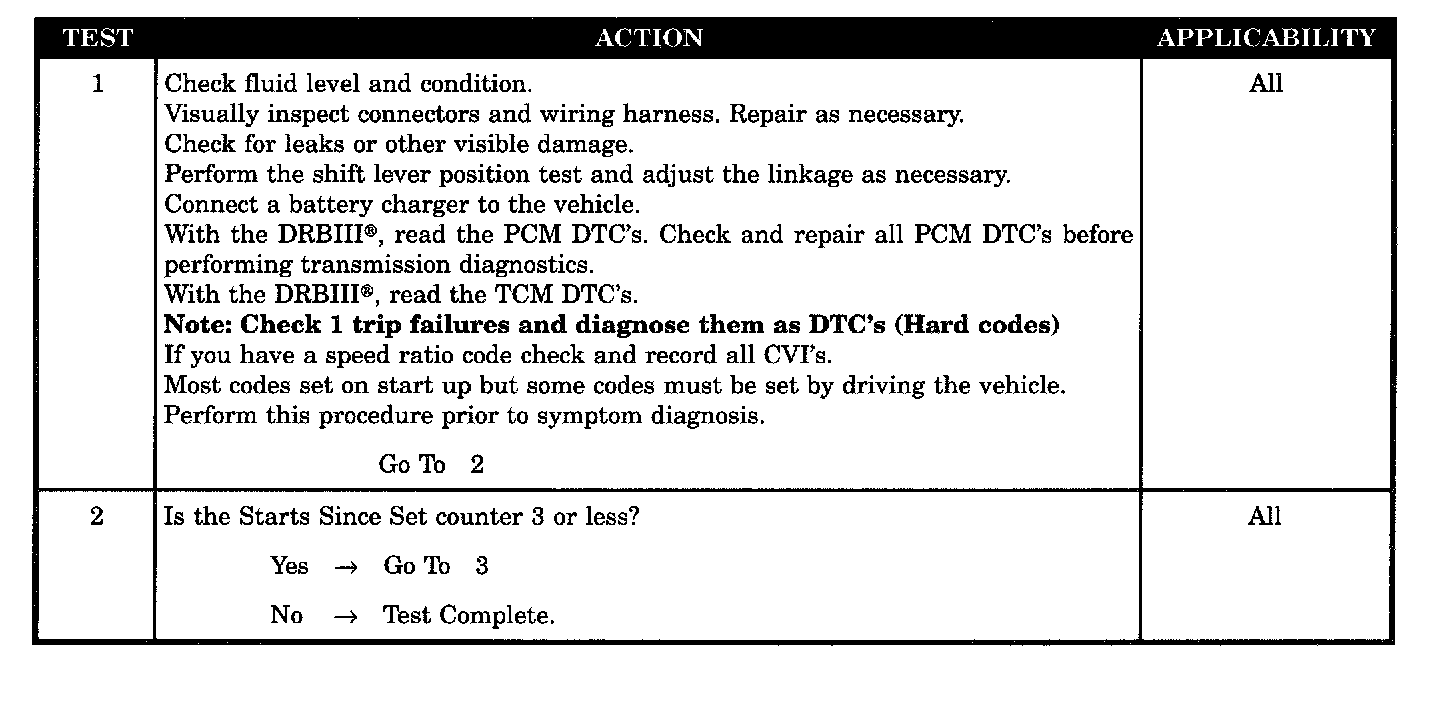

Test 1 Through 2:

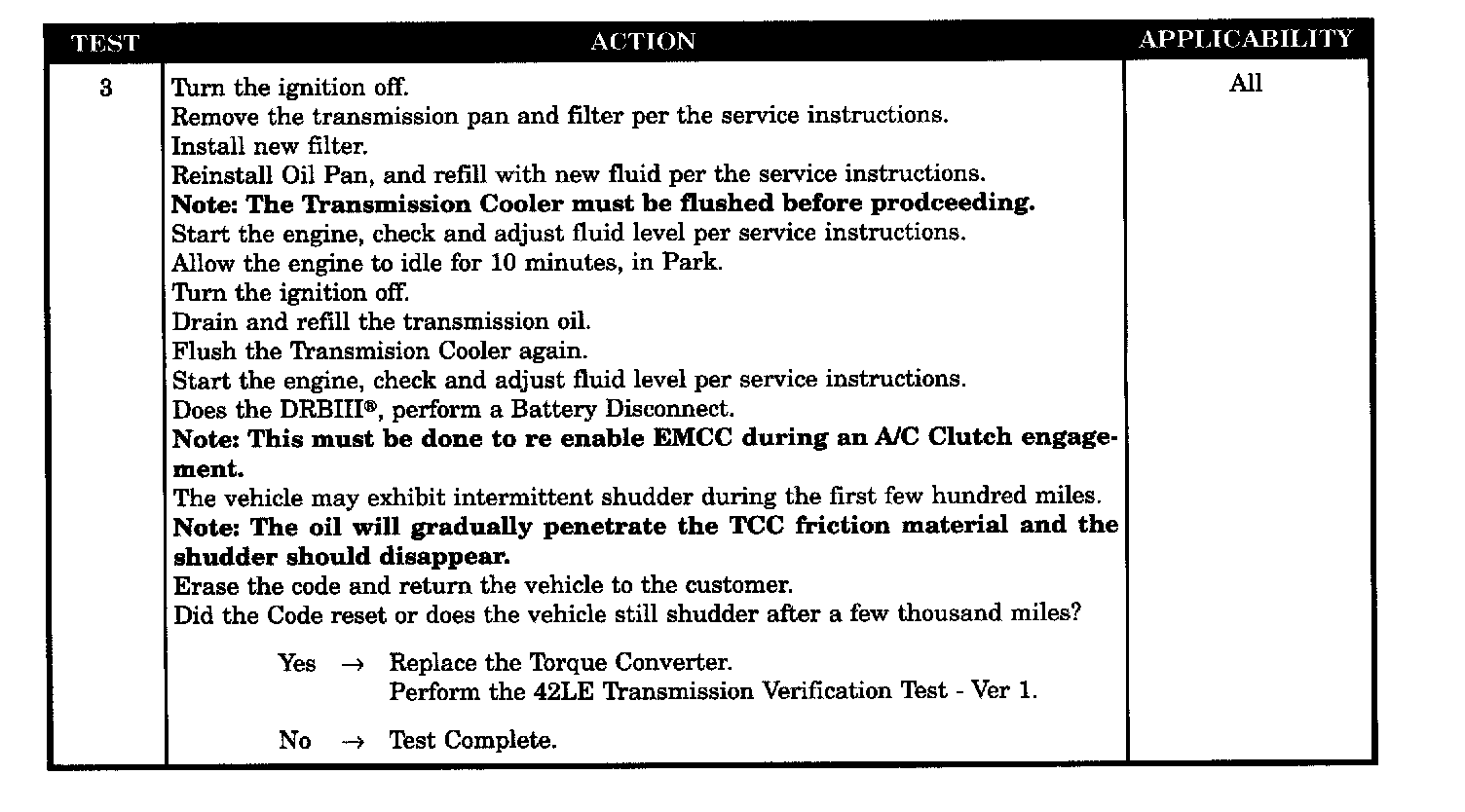

Test 3:

SYMPTOM:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored and Set Condition:
P1798-WORN OUT/BURNT TRANSAXLE FLUID

When Monitored:
With each transition from full Torque Convertor to partial Torque Convertor engagement for A/C bump prevention.

Set Condition:
When vehicle shudder is detected during partial engagement (PEMCC).

POSSIBLE CAUSES
WORN OUT/ BURNT TRANS FLUID
