P1797

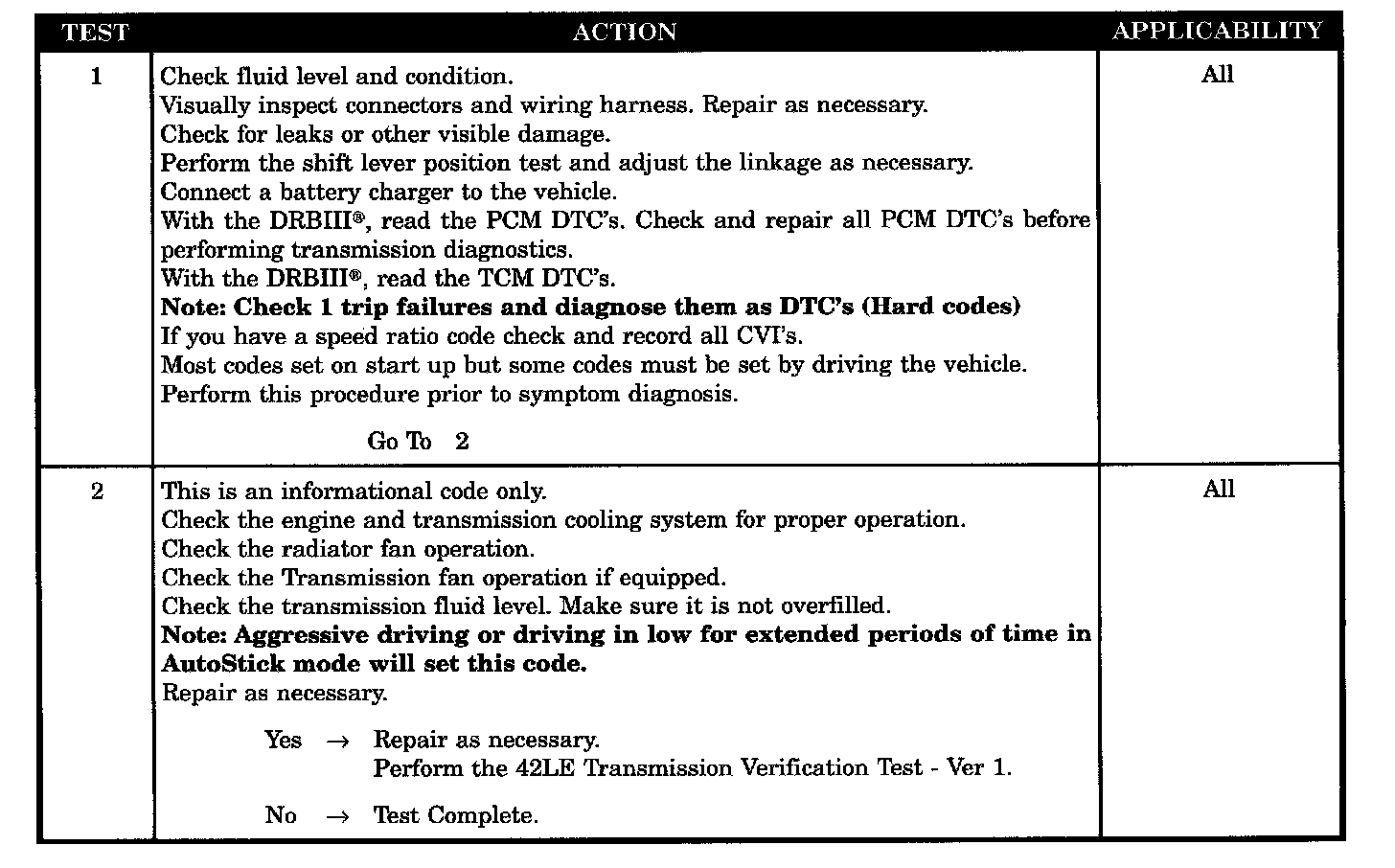

Test 1 Through 2:

SYMPTOM:
P1797-MANUAL SHIFT OVERHEAT

When Monitored and Set Condition:
P1797-MANUAL SHIFT OVERHEAT

When Monitored:
Whenever engine is running and transmission is in the AutoStick mode.

Set Condition:
If the engine temperature exceeds 255°F or the transmission temperature exceeds 275°F while in AutoStick mode. note: Aggressive driving or driving in low for extended periods of time in AutoStick mode will set this code.

POSSIBLE CAUSES
MANUAL SHIFT OVERHEAT
