P1796

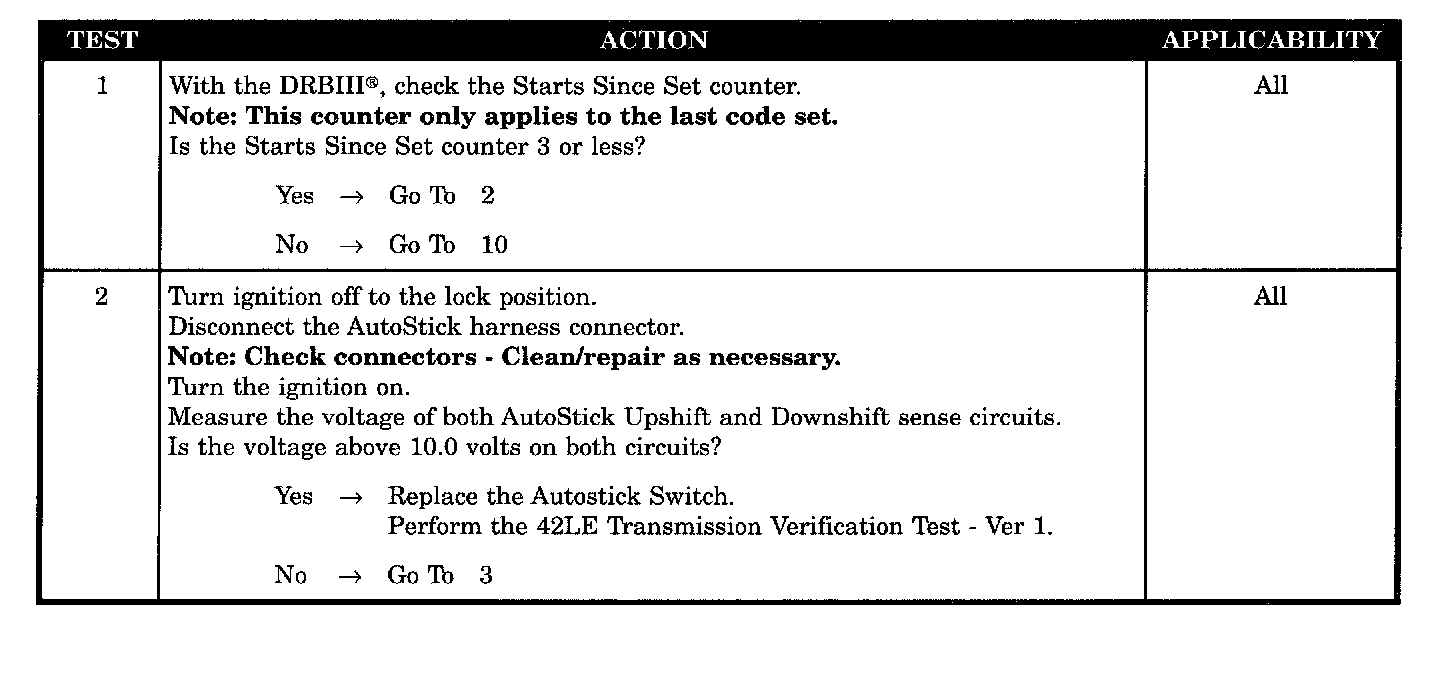

Test 1 Through 2:

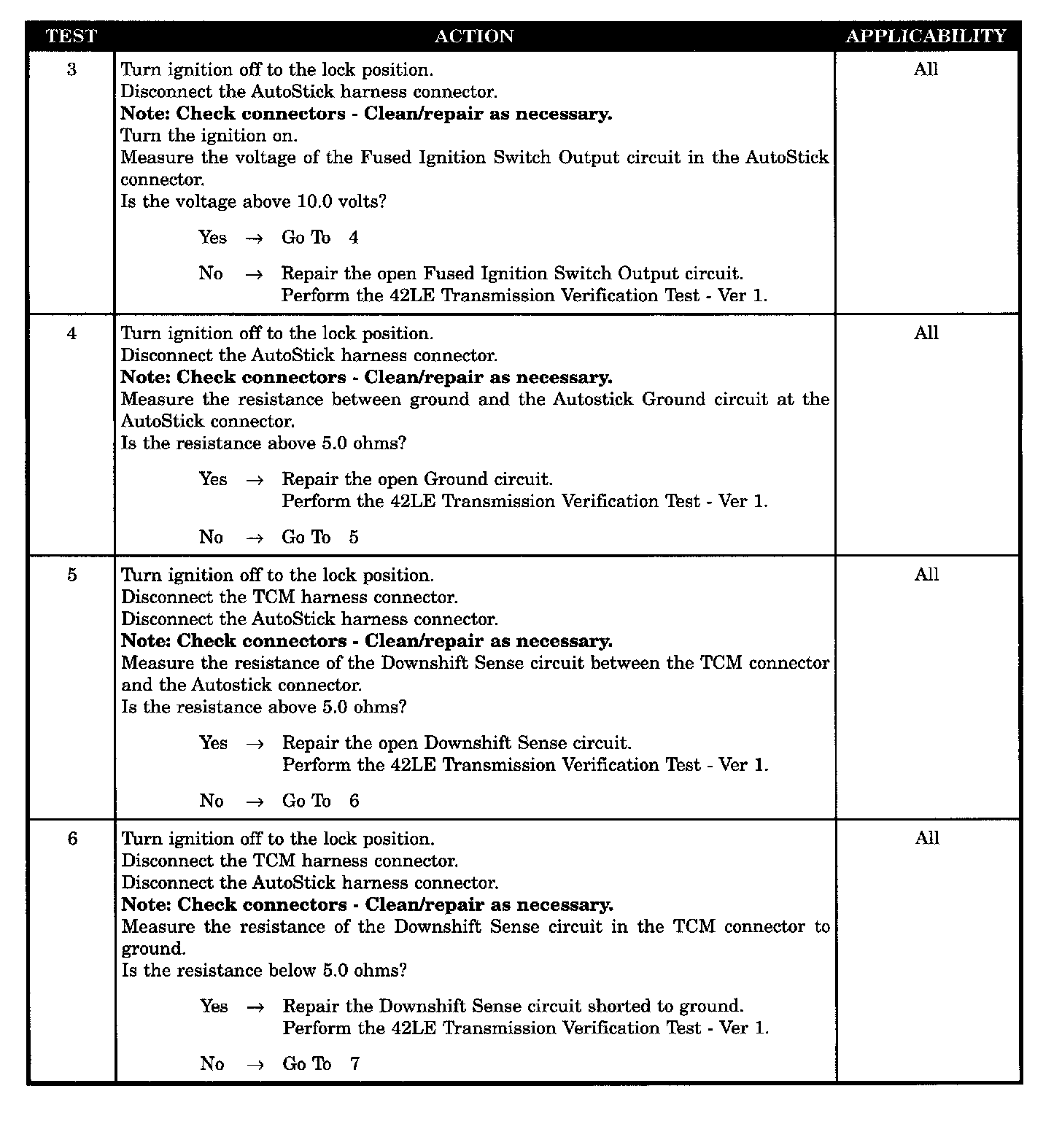

Test 3 Through 6:

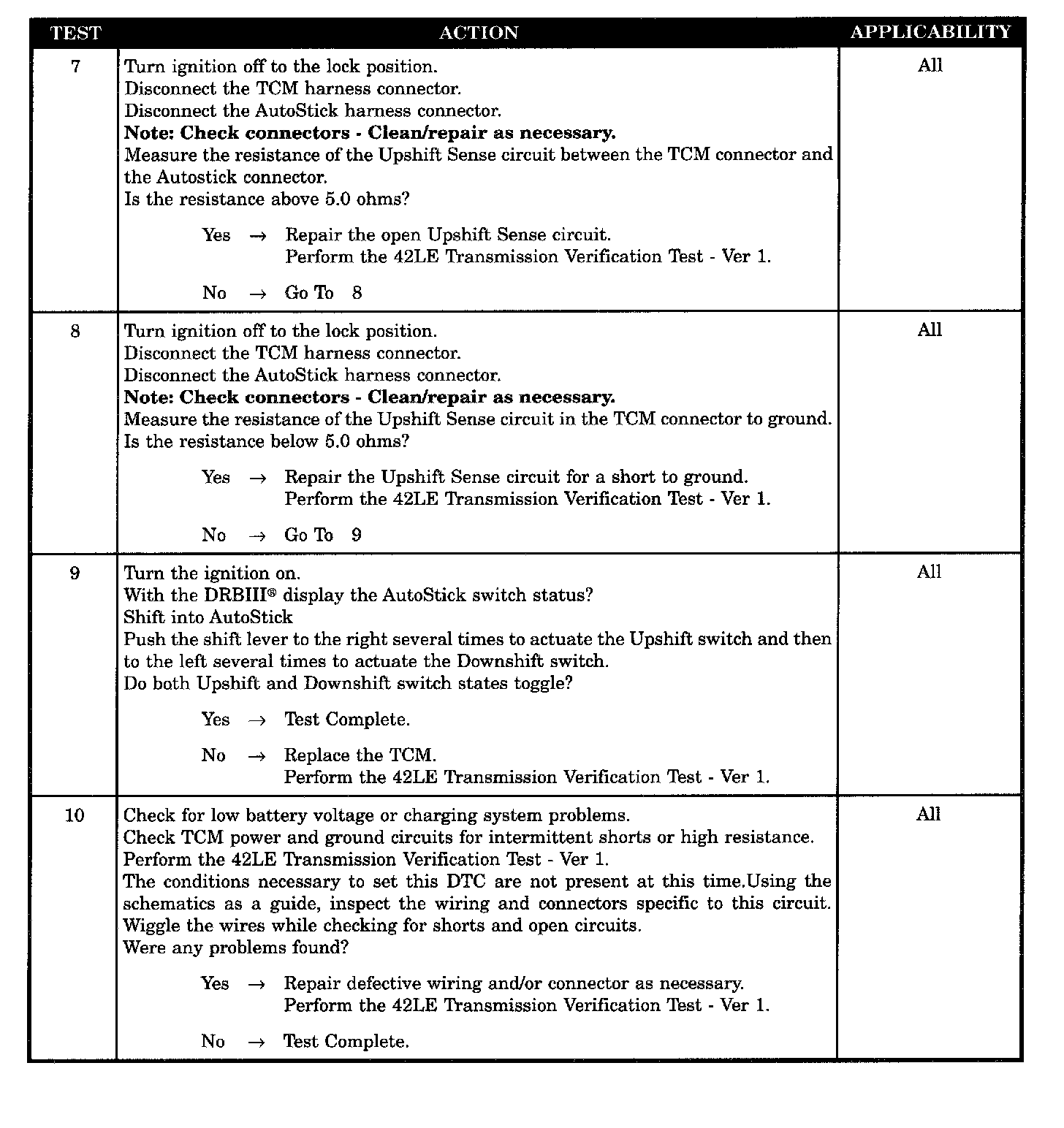

Test 7 Through 10:

SYMPTOM:
P1796-AUTOSTICK SENSOR CIRCUIT

When Monitored and Set Condition:
P1796-AUTOSTICK SENSOR CIRCUIT

When Monitored:
Whenever the engine is running.

Set Condition:
The transmission shift lever is not in the AutoStick and either the upshift or downshift switch is closed. Both the upshift and downshift switches are closed at the same time.

POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
- GROUND CIRCUIT OPEN
- DOWNSHIFT SENSE CIRCUIT OPEN
- DOWNSHIFT SENSE CIRCUIT SHORT TO GROUND
- UPSHIFT SENSE CIRCUIT OPEN
- UPSHIFT SENSE CIRCUIT SHORTED TO GROUND
- AUTOSHIFT SWITCH STUCK OPEN OR CLOSED
- TCM-AUTOSTICK
