P1790

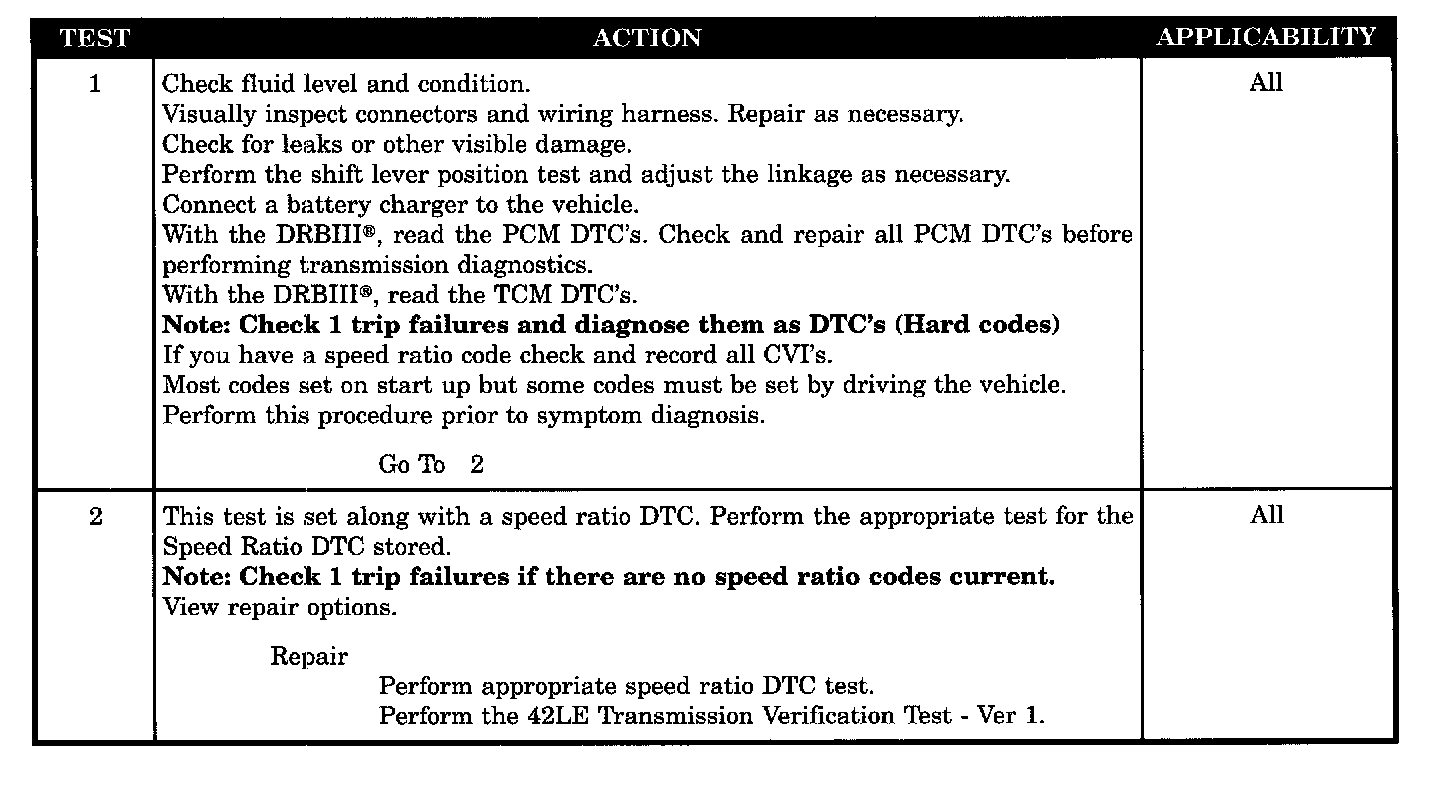

Test 1 Through 2:

SYMPTOM:
P1790-FAULT IMMEDIATELY AFTER SHIFT

When Monitored and Set Condition:
P1790-FAULT IMMEDIATELY AFTER SHIFT

When Monitored:
After a speed ratio error is stored.

Set Condition:
This code is set if the associated speed ratio code is stored within 1.3 seconds after a shift.

POSSIBLE CAUSES
FAULT AFTER SHIFT
