P1781

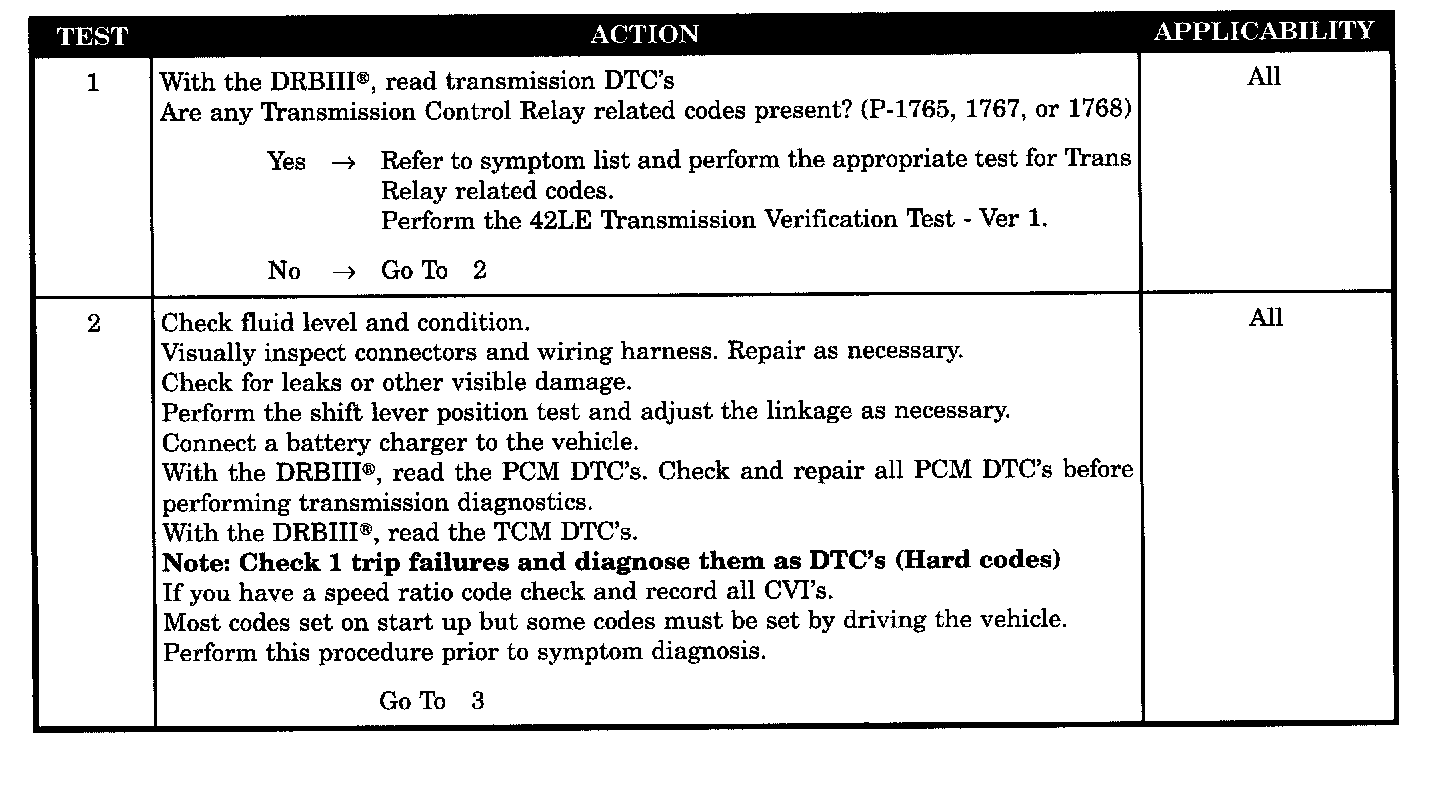

Test 1 Through 2:

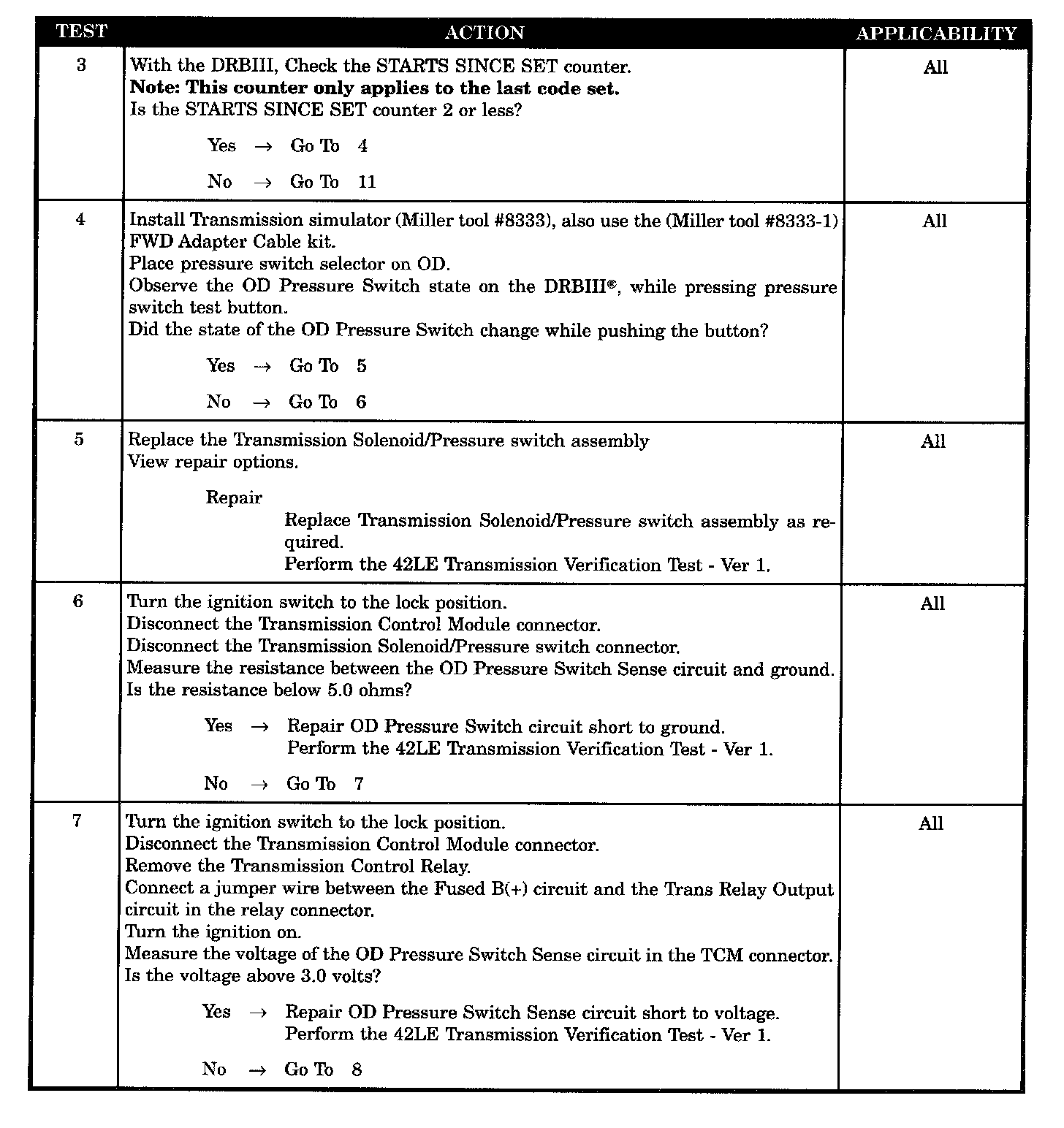

Test 3 Through 7:

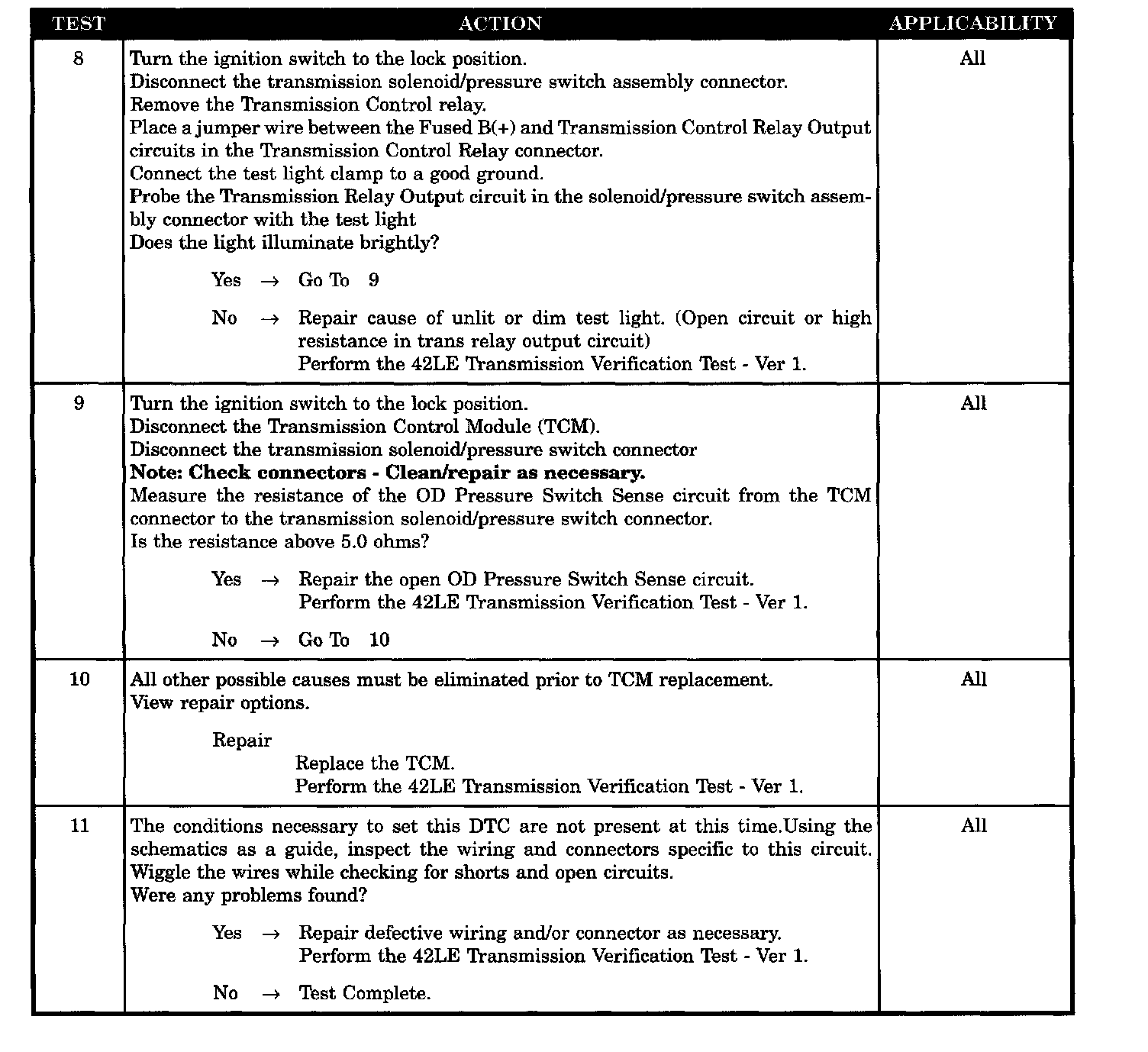

Test 8 Through 11:

SYMPTOM:
P1781-OD PRESSURE SWITCH SENSE CIRCUIT

When Monitored and Set Condition:
P1781-OD PRESSURE SWITCH SENSE CIRCUIT

When Monitored:
Whenever the engine is running.

Set Condition:
The appropriate code is set if one of the pressure switches are open or closed at the wrong time in a given gear.

POSSIBLE CAUSES
RELATED RELAY DTC'S PRESENT
TRANSMISSION RELAY OUTPUT CIRCUIT OPEN
PRESSURE SWITCH INOPERATIVE
OD PRESSURE SWITCH SENSE CIRCUIT OPEN
OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
INTERMITTENT WIRING & CONNECTORS CONDITIONS
OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
TCM- (OD)
