P1775

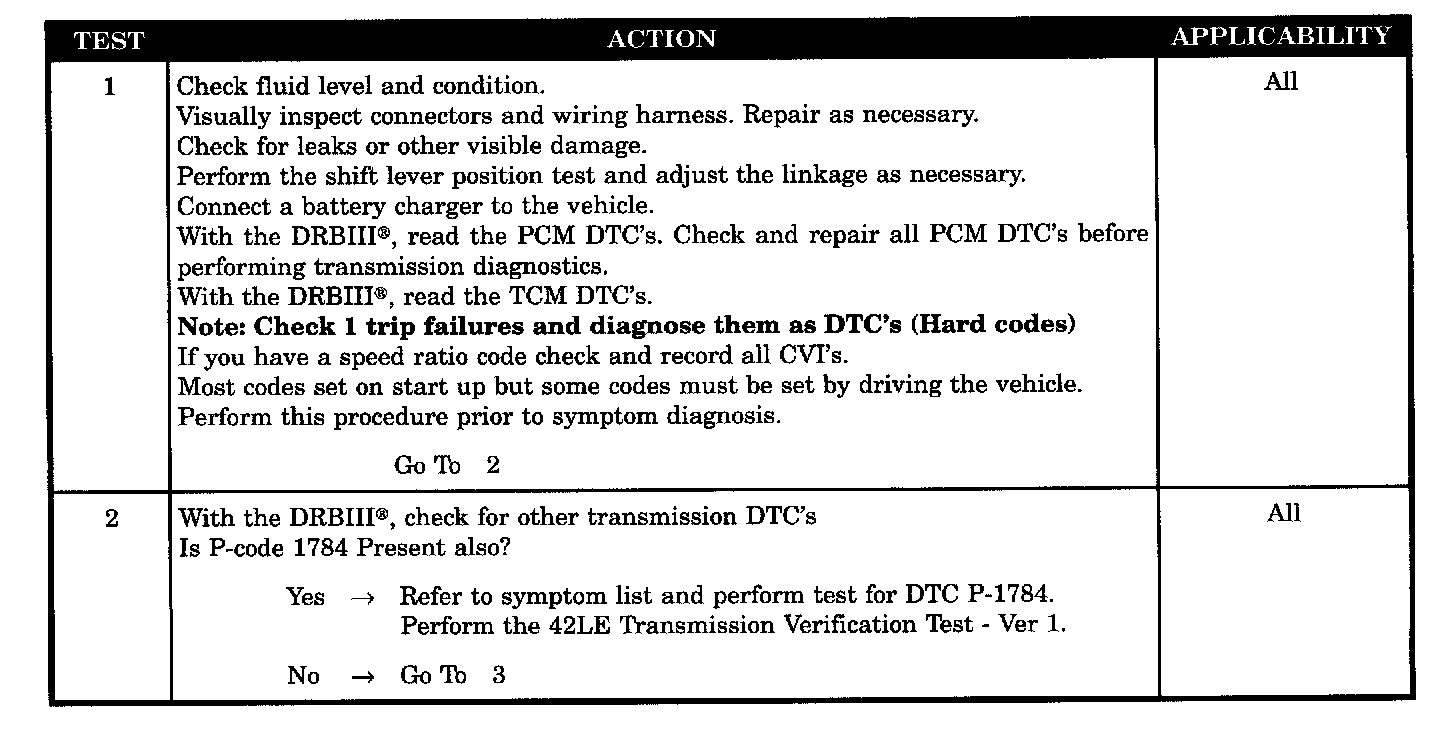

Test 1 Through 2:

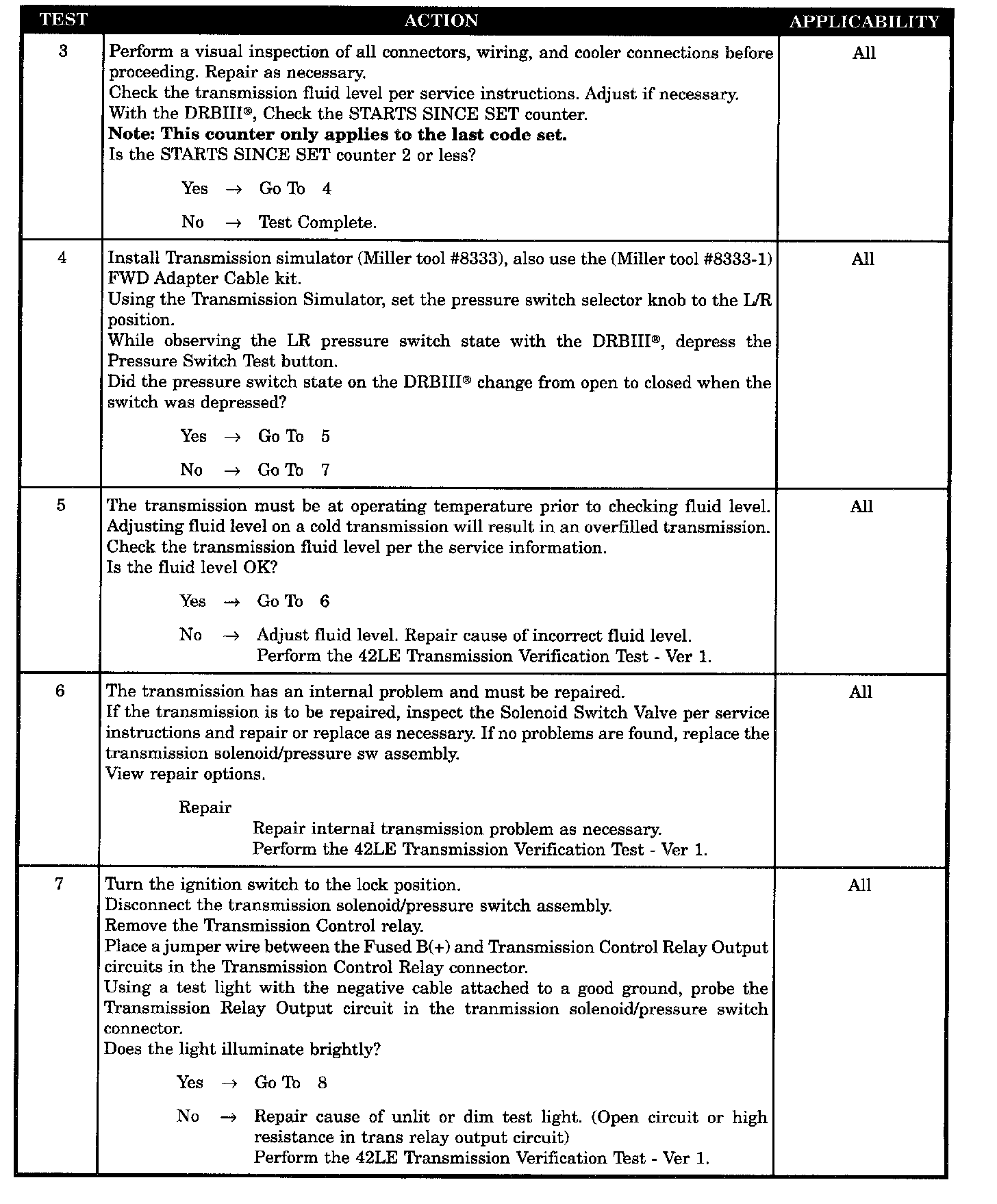

Test 3 Through 7:

Test 8 Through 11:

SYMPTOM:
P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION

When Monitored and Set Condition:
P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION

When Monitored:
During an attempted shift into 1st gear.

Set Condition:
This code is set if three unsuccessful attempts are made to get into 1st gear in one given key start.

POSSIBLE CAUSES
TRANSMISSION RELAY OUTPUT CIRCUIT OPEN
L/R PRESSURE SWITCH SENSE CIRCUIT OPEN
L/R PRESSURE SWITCH CIRCUIT SHORT TO GROUND
L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
REPLACE THE TCM (L/R)
RELATED DTC P-1784 PRESENT
INCORRECT FLUID LEVEL
INTERMITTENT OPERATION
INTERNAL TRANSMISSION PROBLEM - SSV STUCK
