P1765

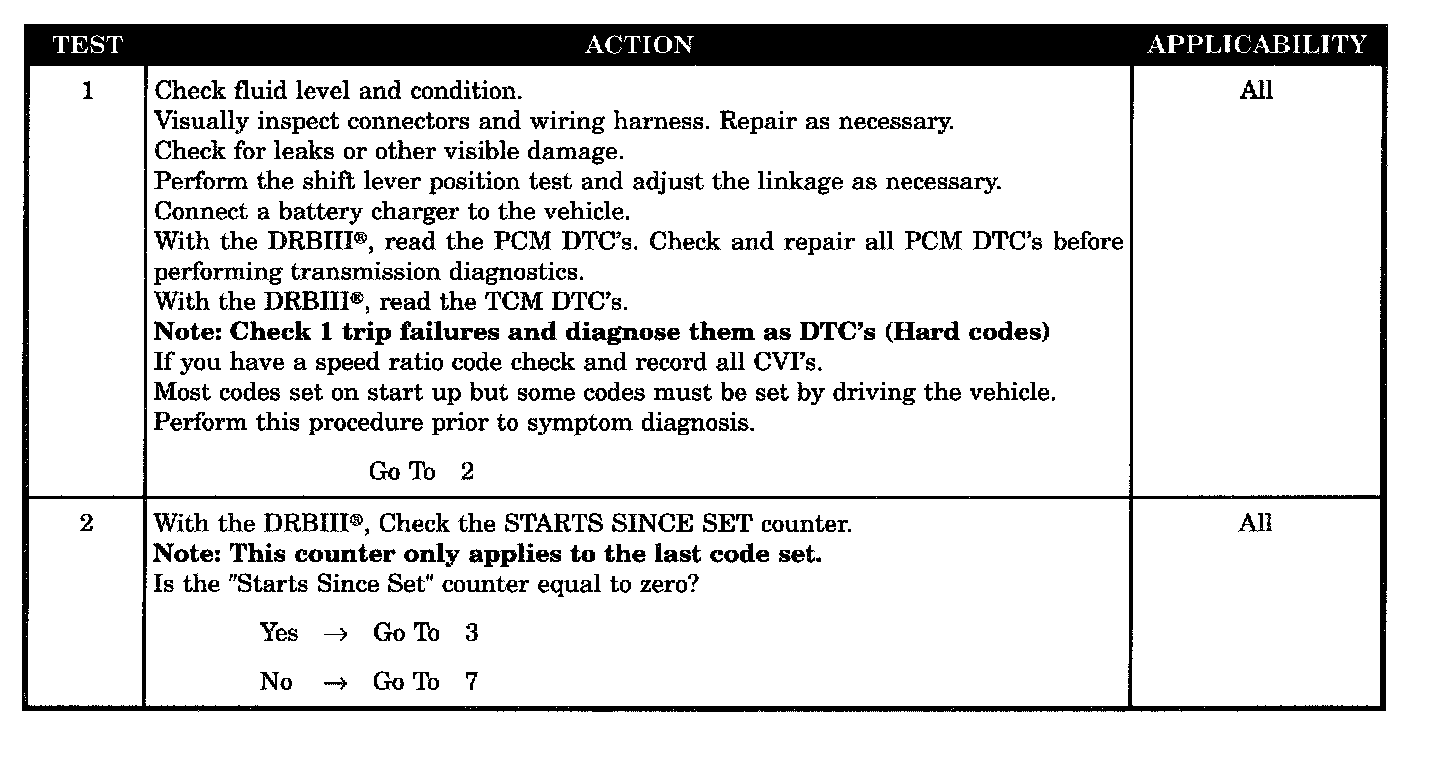

Test 1 Through 2:

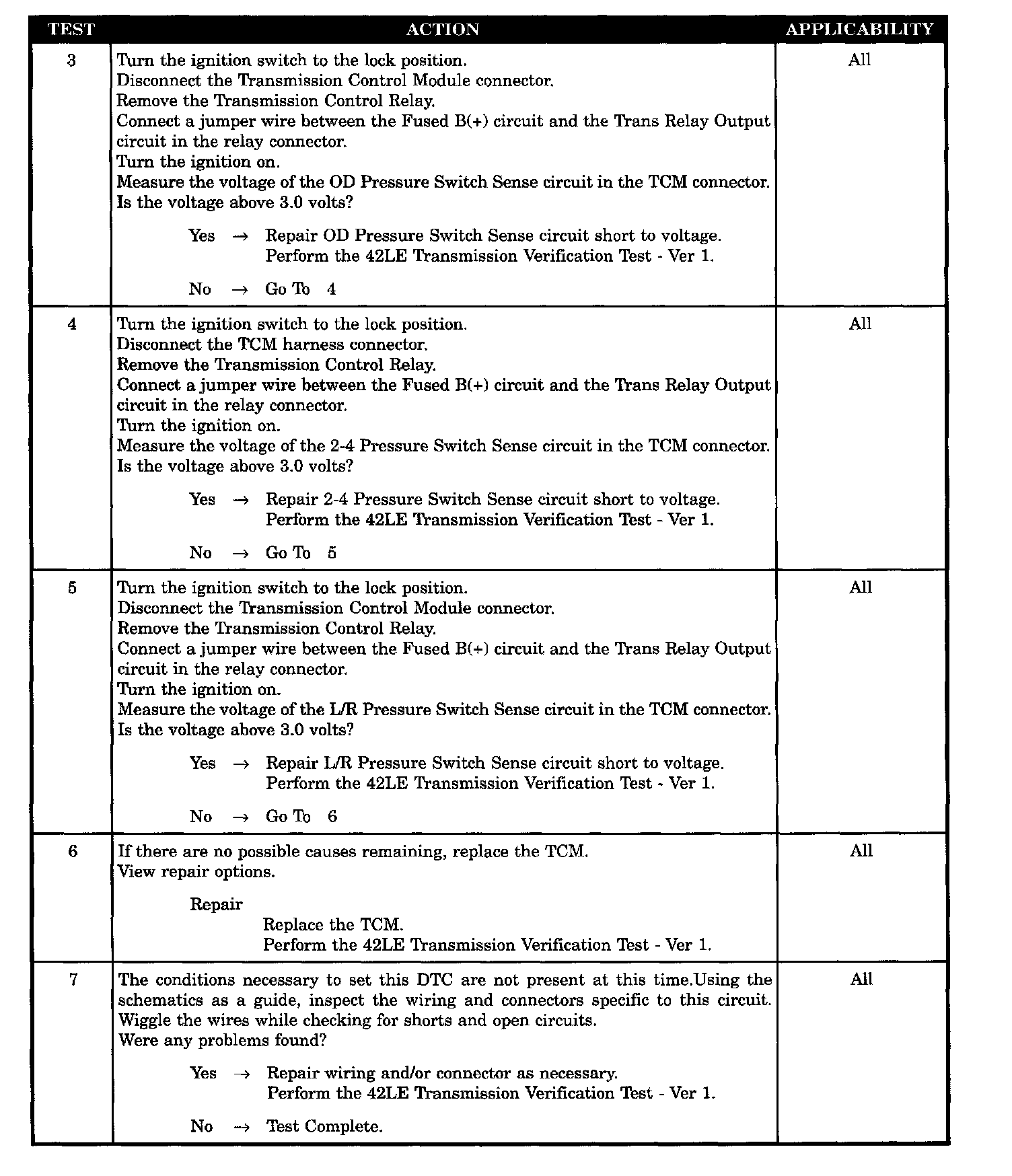

Test 3 Through 7:

SYMPTOM:
P1765-SWITCHED BATTERY

When Monitored and Set Condition:
P1765-SWITCHED BATTERY

When Monitored:
Ignition key is turned from "off' position to "run" position and/or ignition key is turned from "crank" position to "run" position.

Set Condition:
This code is set if the Transmission Control Module (TCM) senses voltage on any of the pressure switch inputs prior to the TCM energizing the relay.

POSSIBLE CAUSES
INTERMITTENT WIRING & CONNECTORS CONDITIONS
2-4 PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
OD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
TCM ERROR P-1765
