P1697

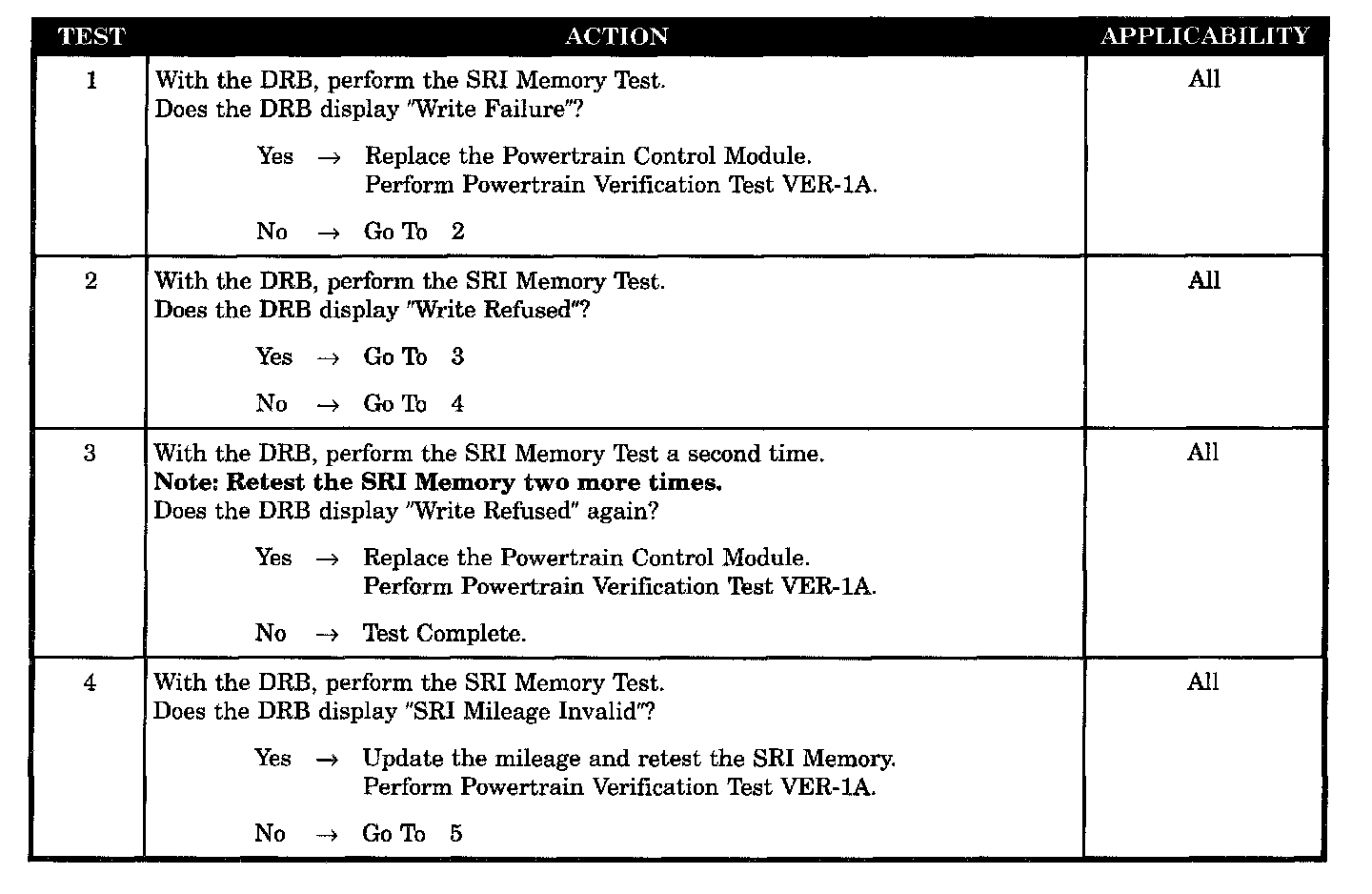

Tests 1 - 4:

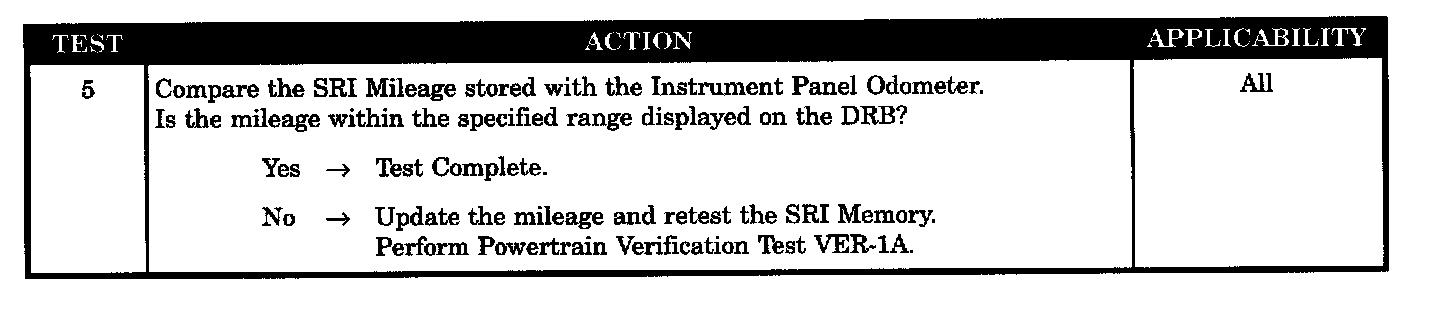

Test 5:

SYMPTOM
P1697 - PCM FAILURE SRI MILE NOT STORED

WHEN MONITORED
Ignition key ON, Continuous.

SET CONDITION
An attempt to program/write to the internal EEPROM failed, Also checks at powerdown.

POSSIBLE CAUSES
- DRB displays "WRITE FAILURE"
- Compare SRI mileage with odometer
- DRB displays "SRI MILEAGE INVALID"
- DRB displays write refused 2nd time
