P1490

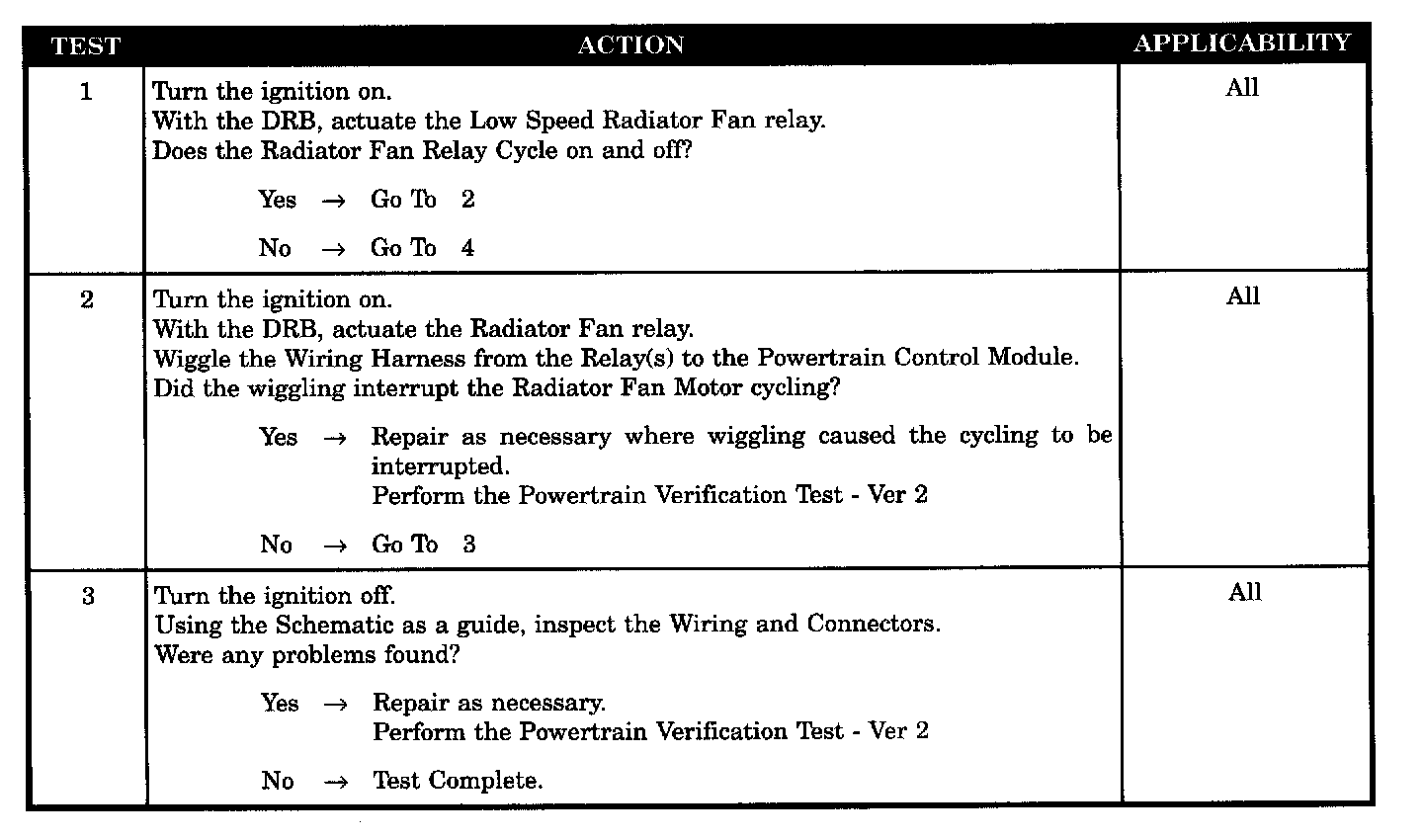

Tests 1 - 3:

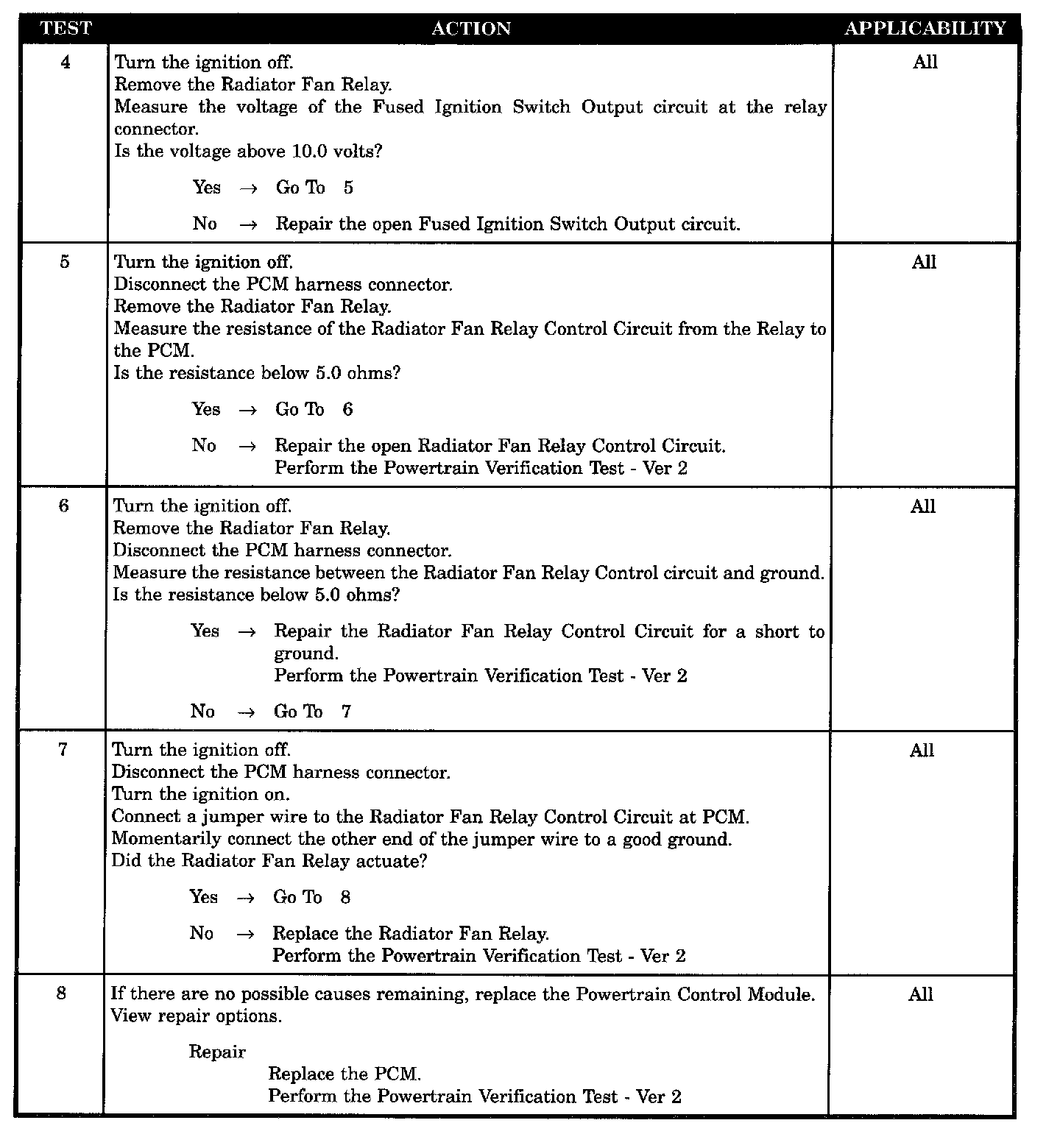

Tests 4 - 8:

SYMPTOM
P1490 - LOW SPEED FAN CONTROL RELAY CIRCUIT

WHEN MONITORED
With the ignition key ON, battery voltage greater than 10.0 volts and the PCM requests the radiator fan to be turned ON.

SET CONDITION
An open or shorted circuit is detected in the radiator fan relay control circuit.

POSSIBLE CAUSES
- Radiator fan control relay circuit wire harness intermittent problem
- Radiator fan control relay circuit wire harness observable problem
- Fused ignition switch output circuit open
- Radiator fan relay control circuit open
- Radiator fan relay control circuit short to ground
- Radiator fan control relay
- PCM
