P1391

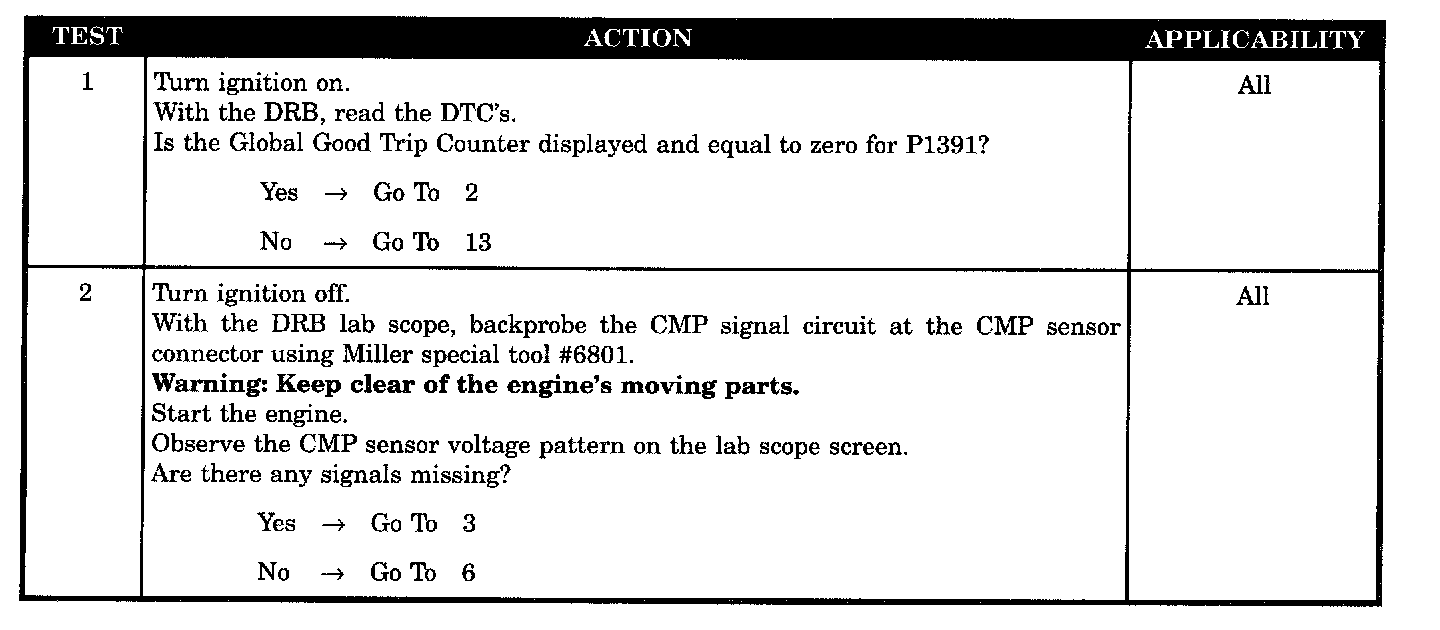

Tests 1 - 2:

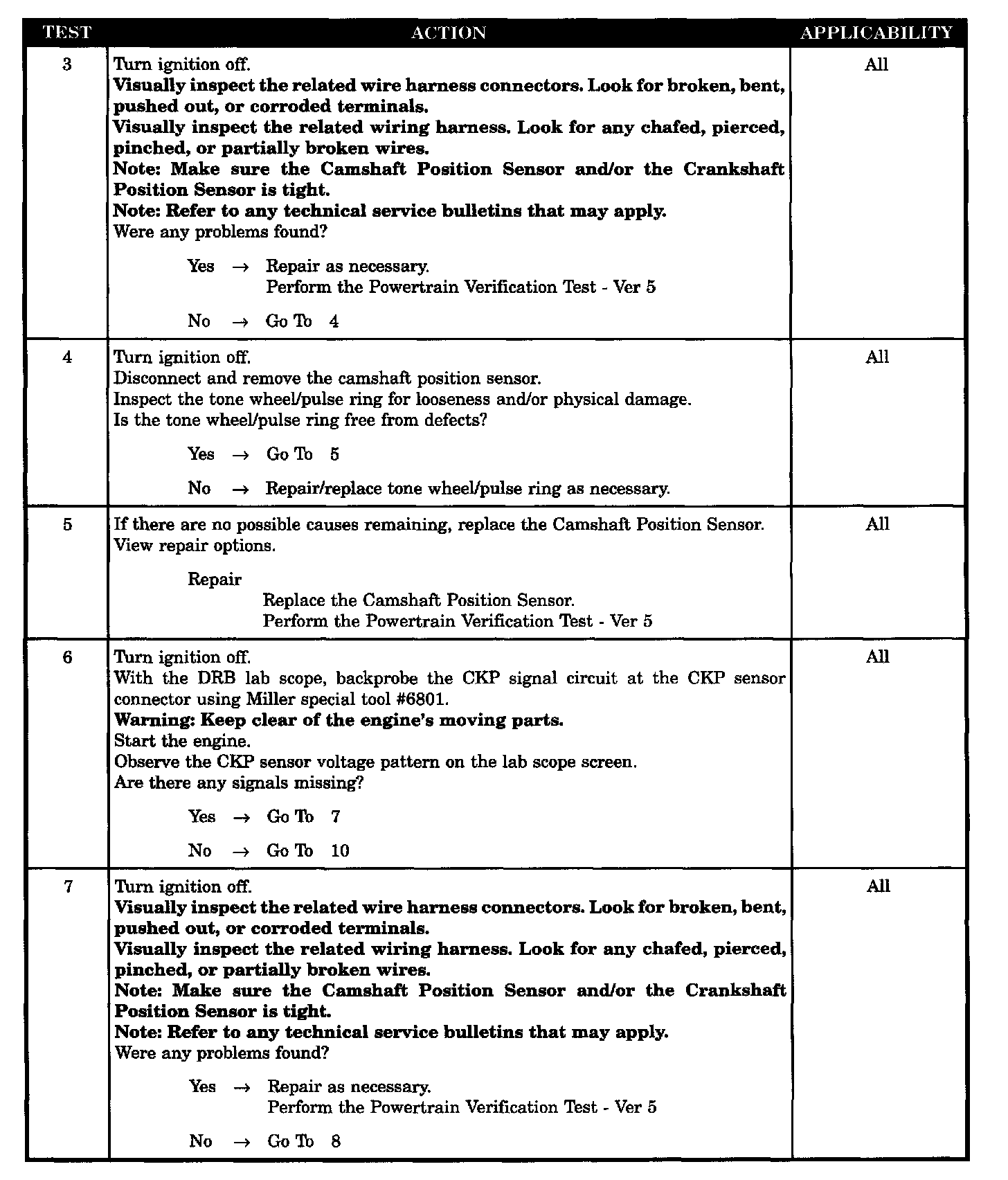

Tests 3 - 7:

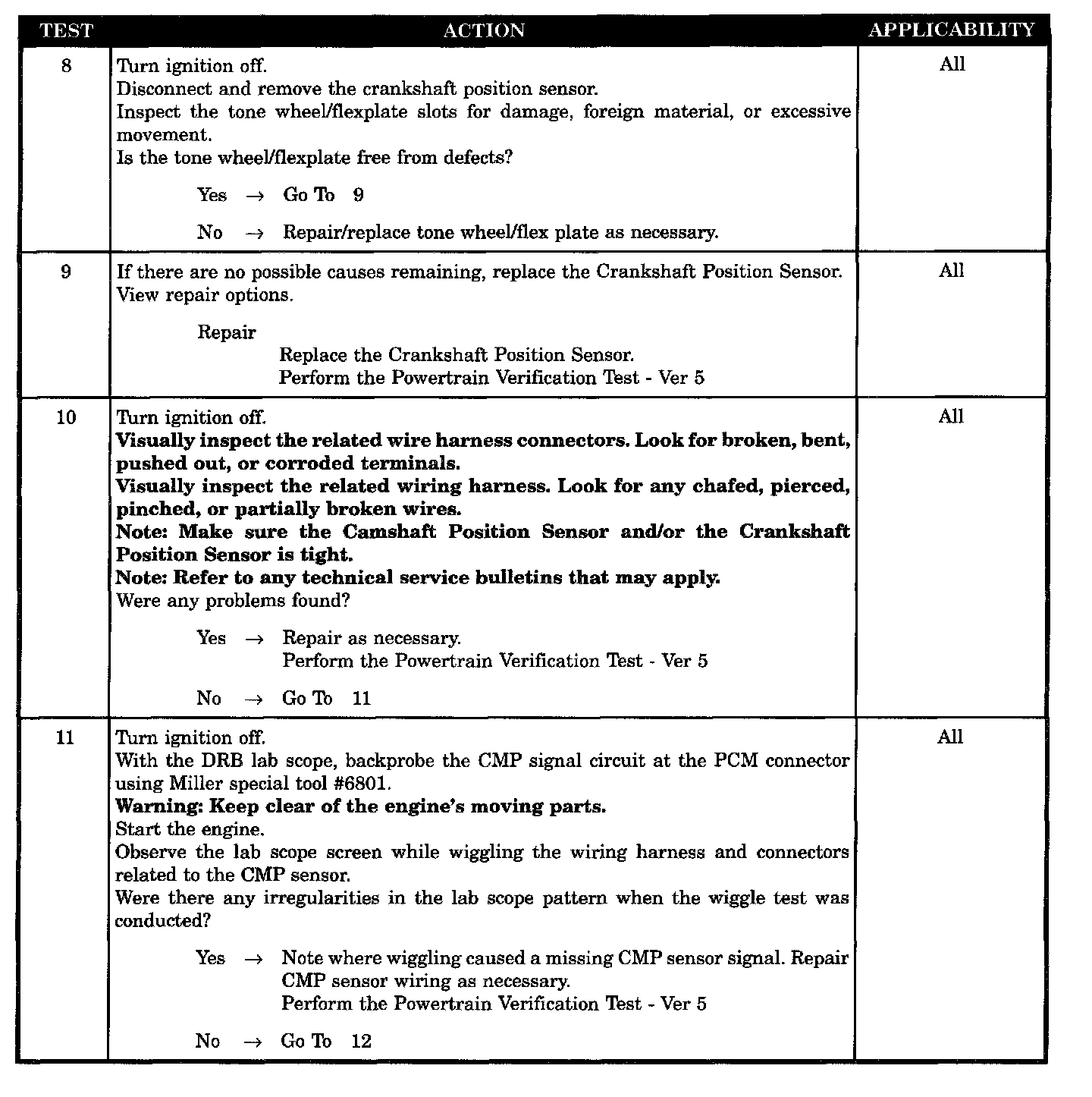

Tests 8 - 11:

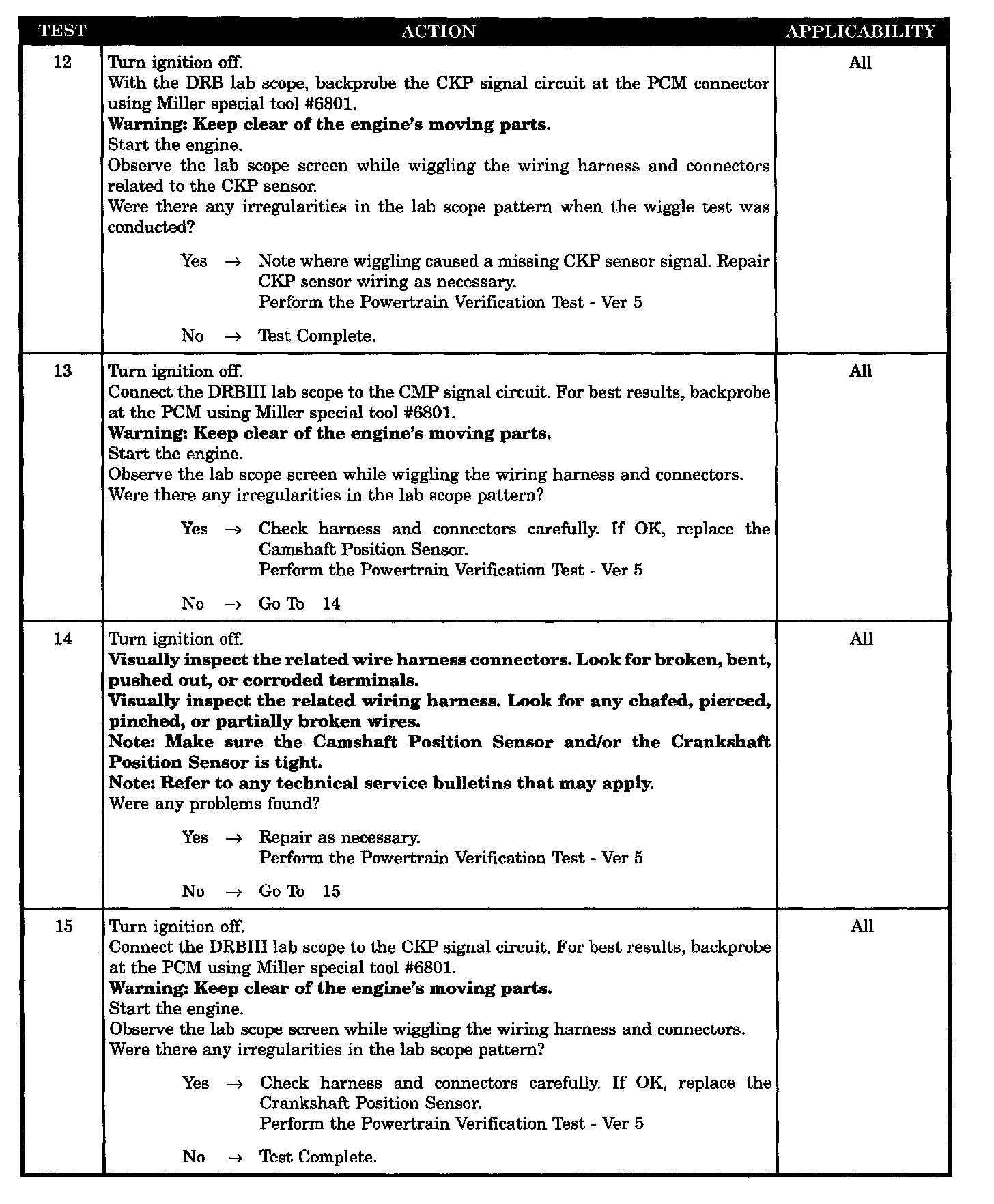

Tests 12 - 15:

SYMPTOM
P1391 - INTERMITTENT LOSS OF CMP OR CKP

WHEN MONITORED
Engine running or cranking.

SET CONDITION
When the failure counter reaches 20 for 2 consecutive trips.

POSSIBLE CAUSES
- Damaged tone wheel/flexplate (crankshaft)
- Damaged tone wheel/pulse ring (camshaft)
- Intermittent CMP signal loss when wiring is wiggled
- Intermittent CKP signal loss when wiring is wiggled
- Irregular lab scope pattern of CKP signal
- Irregular lab scope pattern of CMP signal
- Camshaft position sensor
- Sensor connector/wiring
- Crankshaft position sensor
