P1288

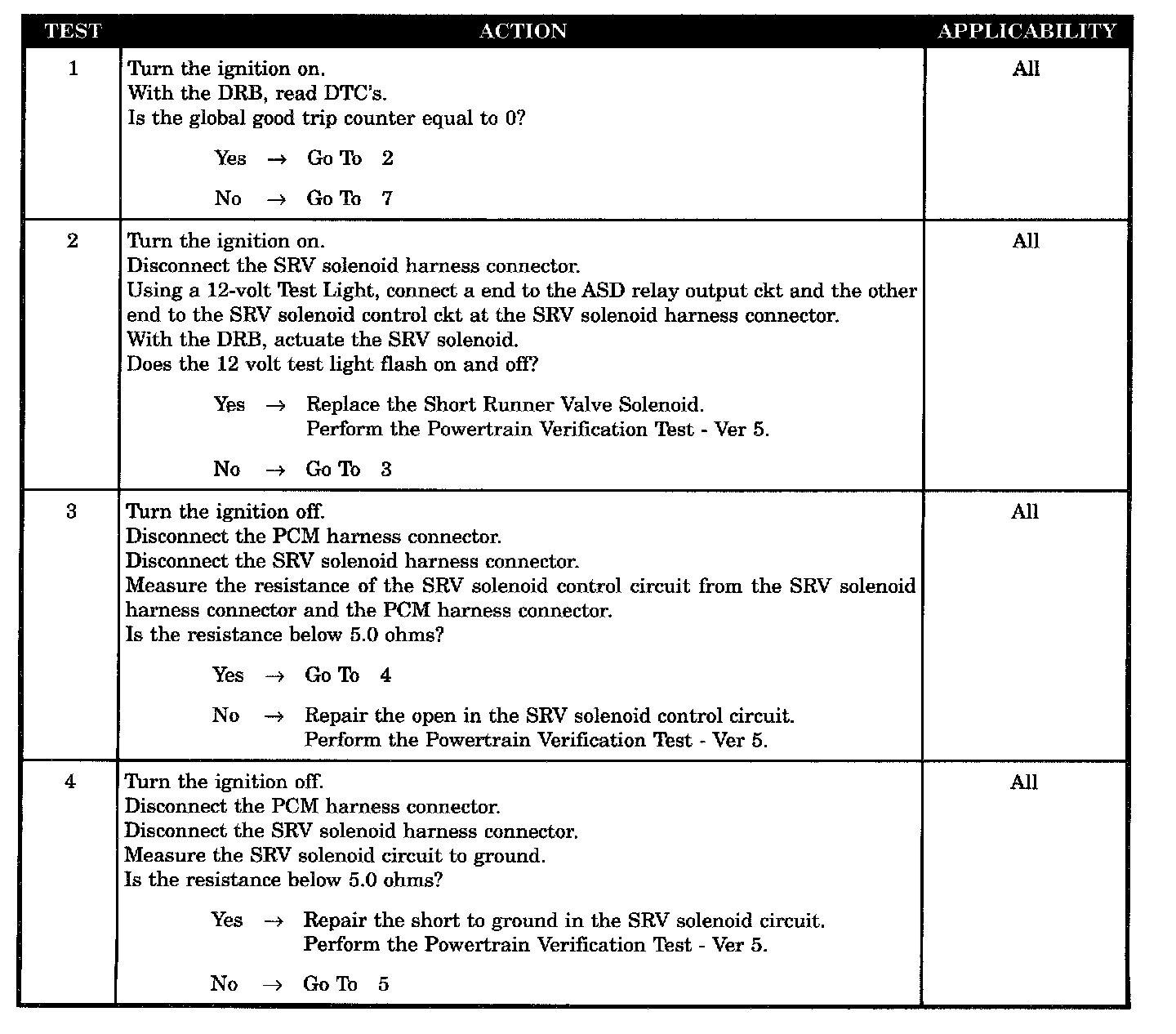

Tests 1 - 4:

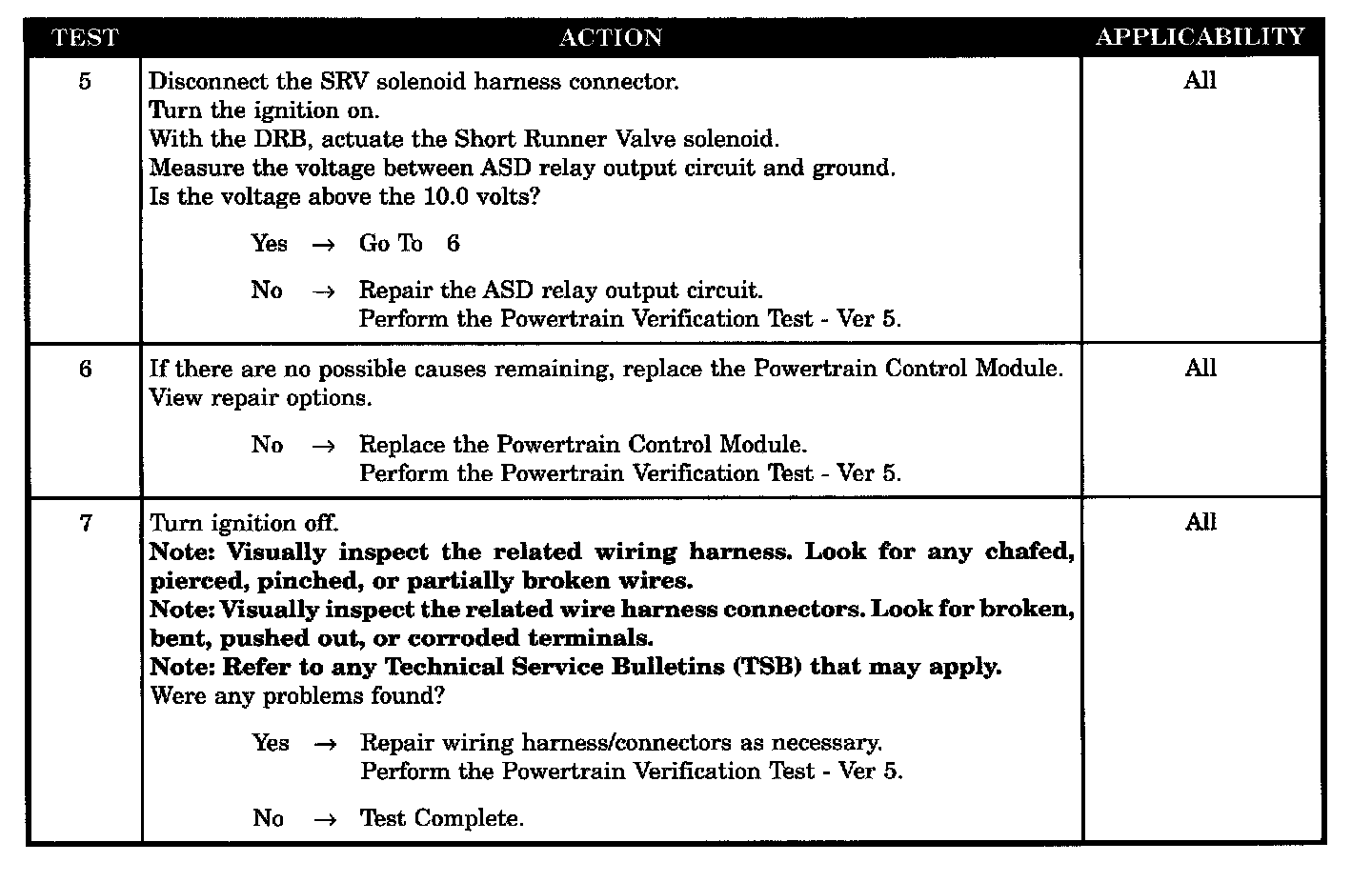

Tests 5 - 7:

SYMPTOM
P1288 - SHORT RUNNER SOLENOID CIRCUIT

POSSIBLE CAUSES
- PCM
- SRV solenoid
- SRV solenoid control circuit open
- SRV solenoid shorted to ground
- ASD relay output circuit
- Wiring harness intermittent problem
