P0760

Test 1 Through 2:

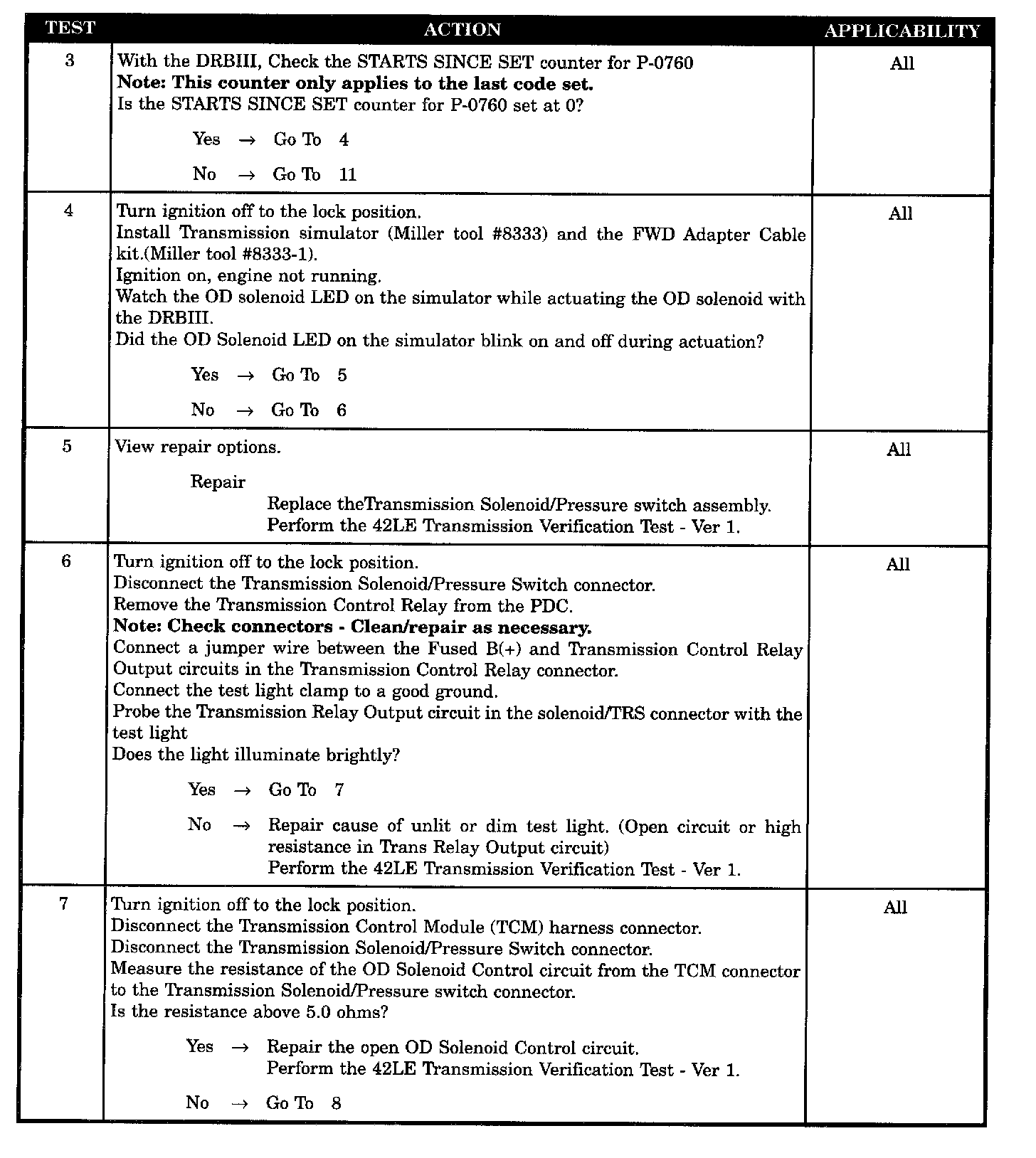

Test 3 Through 7:

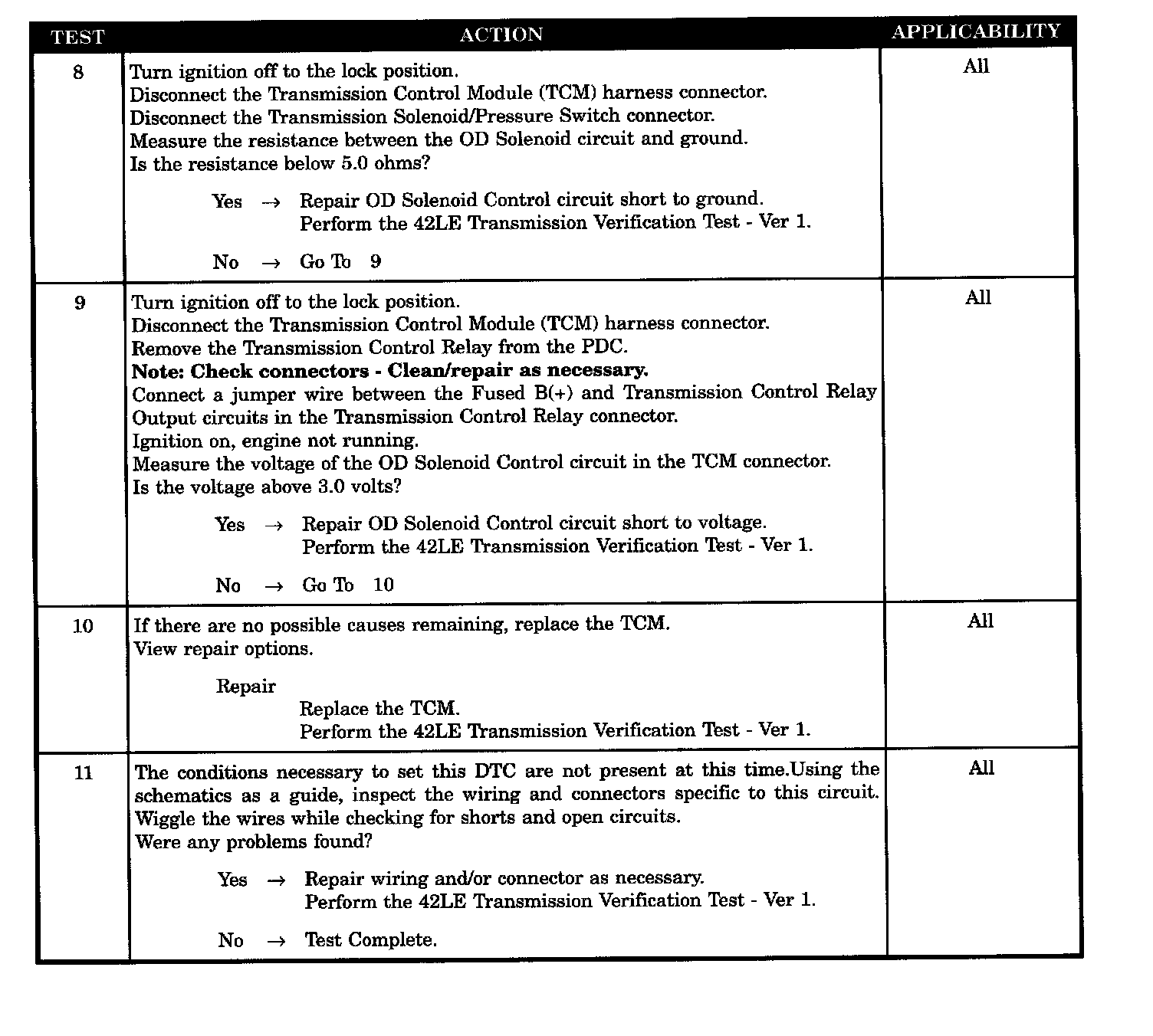

Test 8 Through 11:

SYMPTOM:
P0760-OD SOLENOID CIRCUIT

When Monitored and Set Condition:
P0760-OD SOLENOID CIRCUIT

When Monitored:
Initially at power-up, then every 10 seconds thereafter. They will also be tested immediately after a gear ratio or pressure switch error is detected.

Set Condition:
Three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or pressure switch error.

POSSIBLE CAUSES
RELATED RELAY DTC'S PRESENT
INTERMITTENT WIRING & CONNECTORS
OD SOLENOID CONTROL CIRCUIT OPEN
OD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
OD SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
TRANSMISSION RELAY OUTPUT CIRCUIT OPEN
OD SOLENOID INOPERATIVE
TCM (O/D SOLENOID CIRCUIT)
