P0731

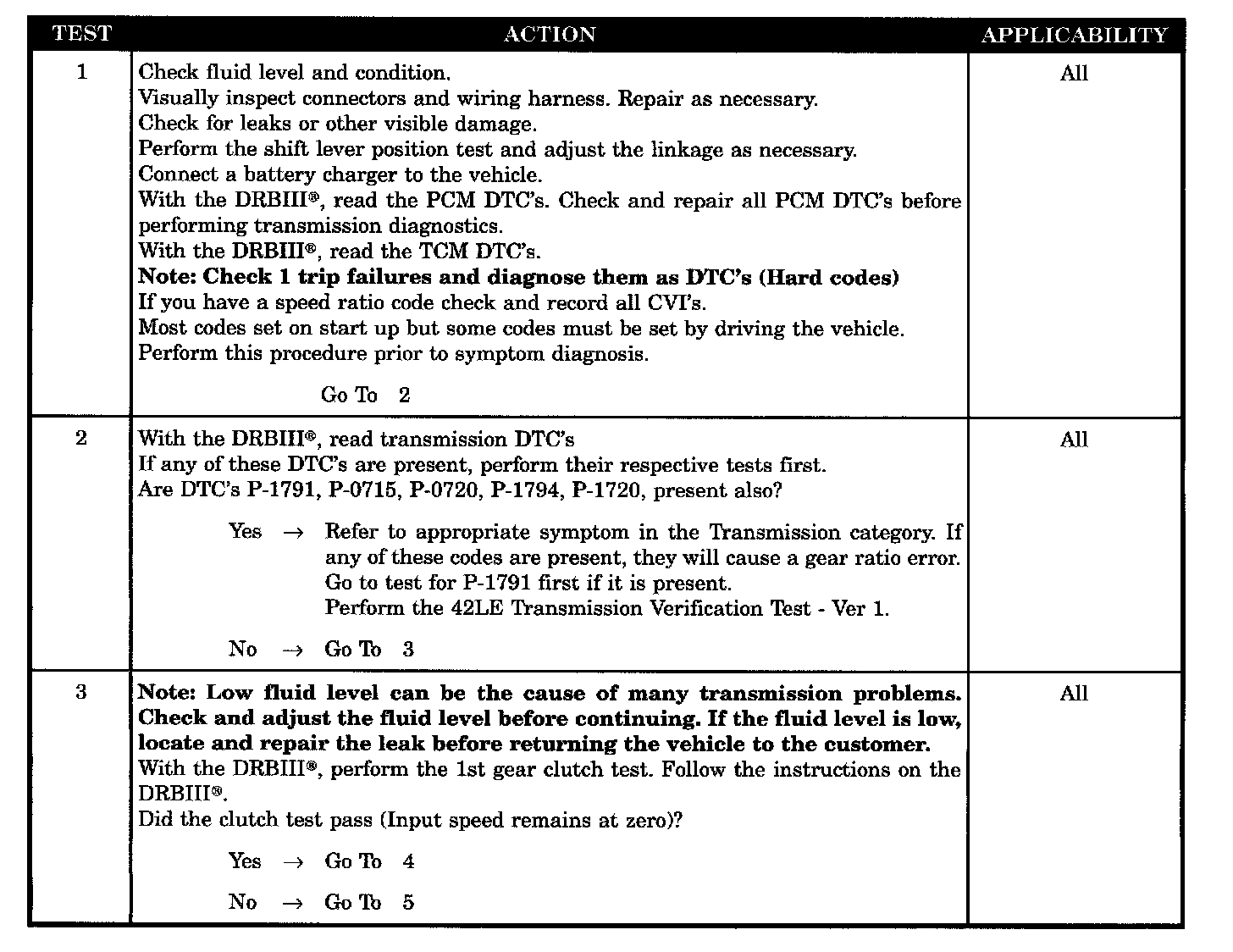

Test 1 Through 3:

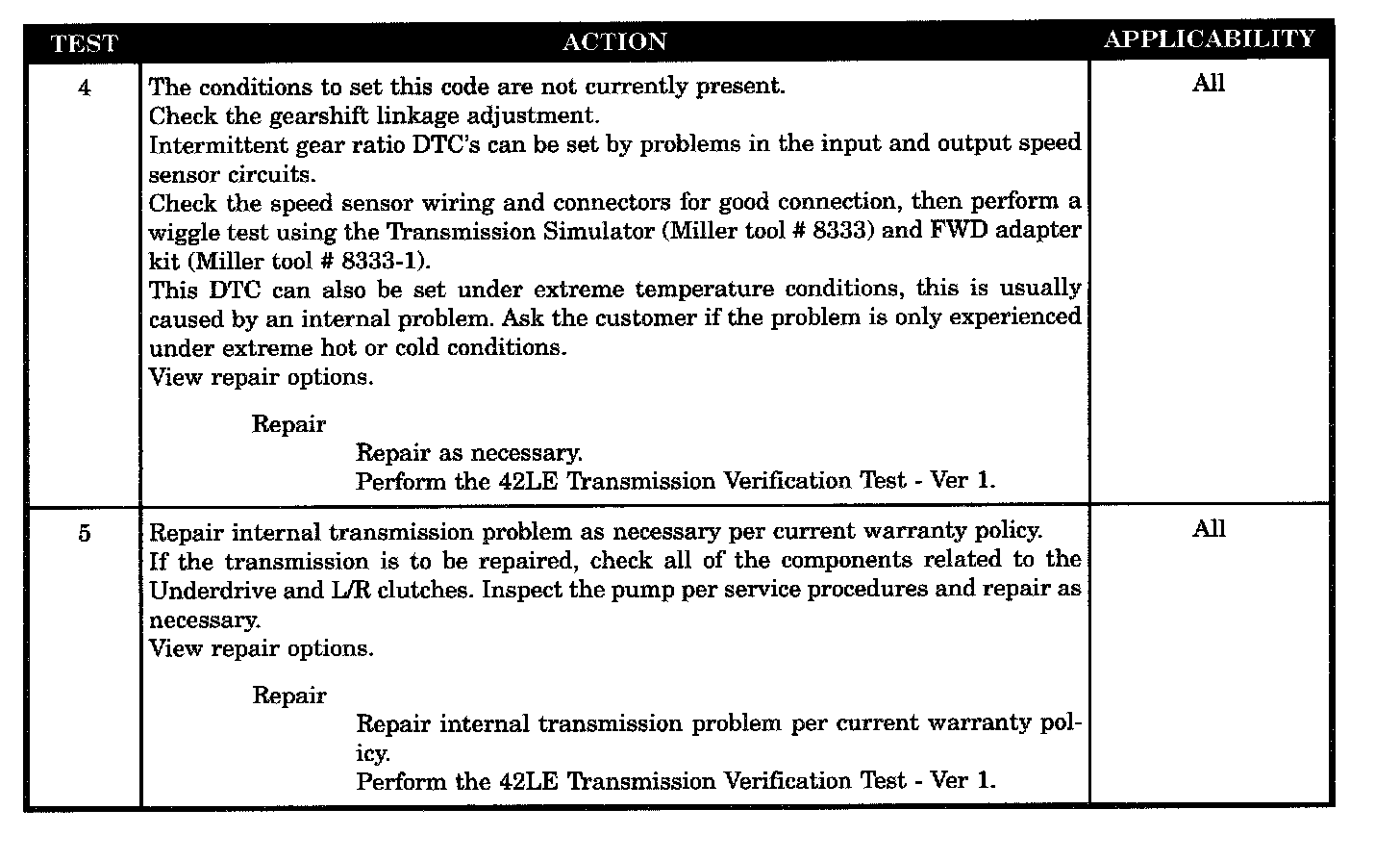

Test 4 Through 5:

SYMPTOM:
P0731-GEAR RATIO ERROR IN 1ST

When Monitored and Set Condition:
P0731-GEAR RATIO ERROR IN 1ST
When Monitored:
The transmission gear ratio is monitored continuously while the transmission is in gear.

Set Condition:
If the ratio of the input RPM to the output RPM does not match the current gear ratio.

POSSIBLE CAUSES
INTERMITTENT GEAR RATIO ERRORS
RELATED DTC'S PRESENT
REPAIR TRANSMISSION
