P0715

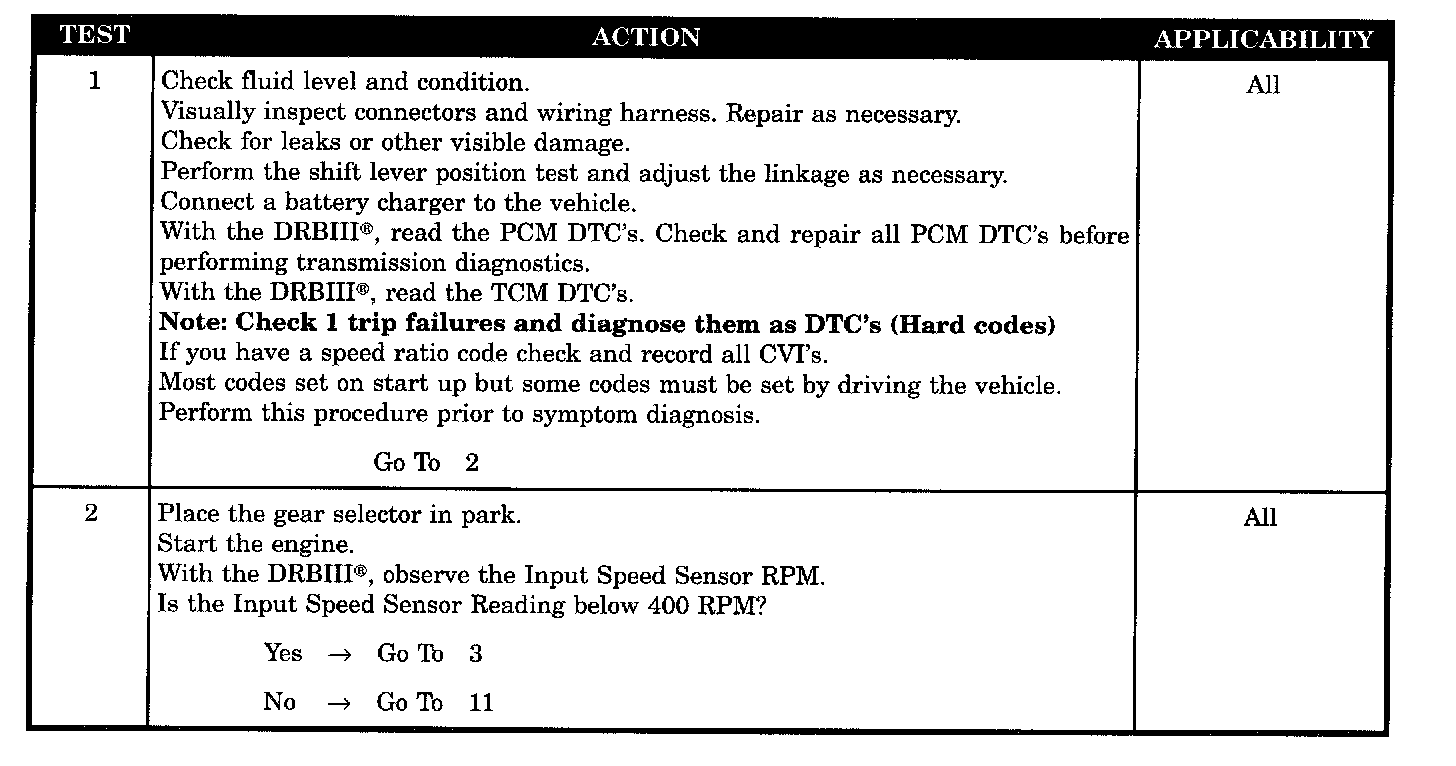

Test 1 Through 2:

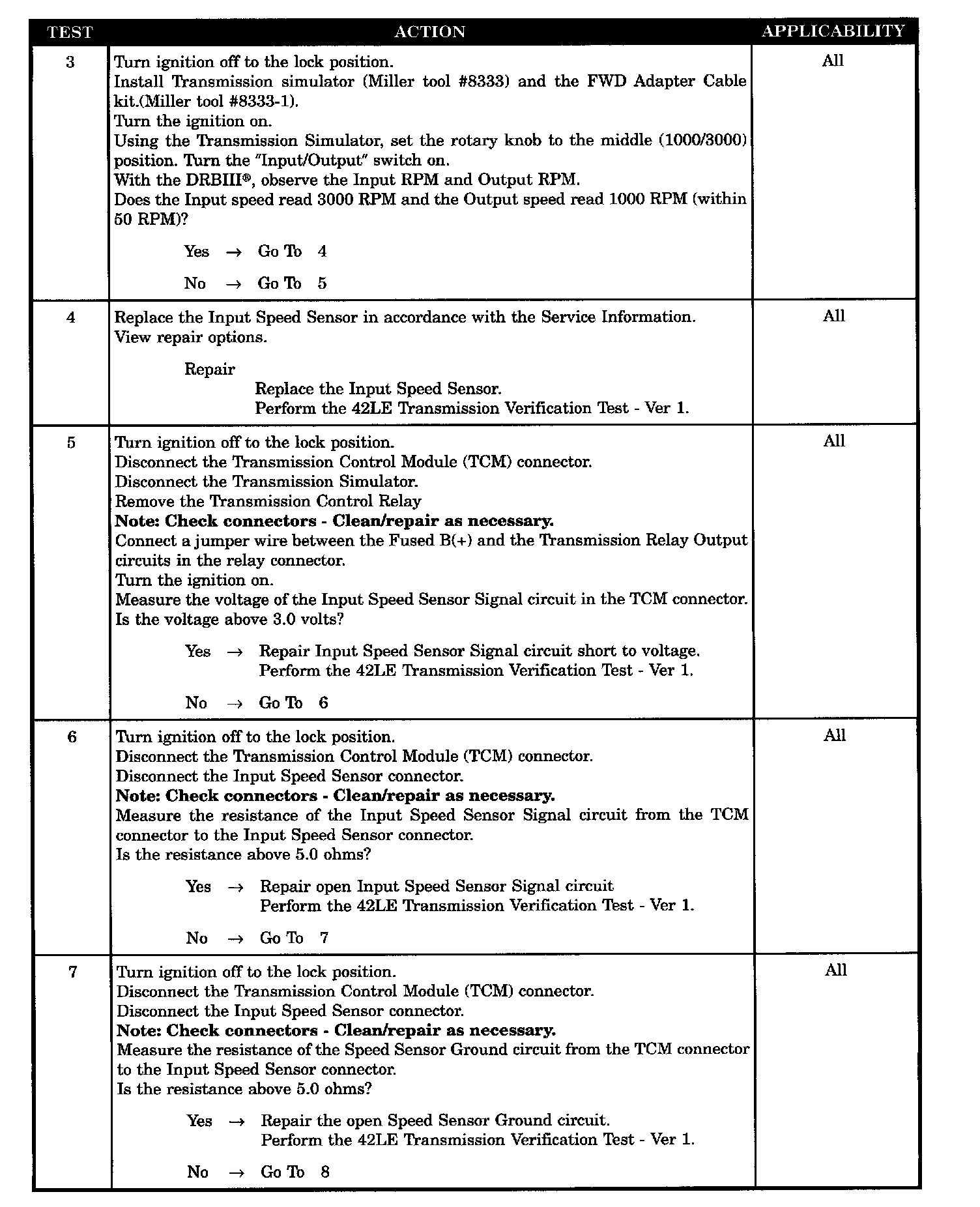

Test 3 Through 7:

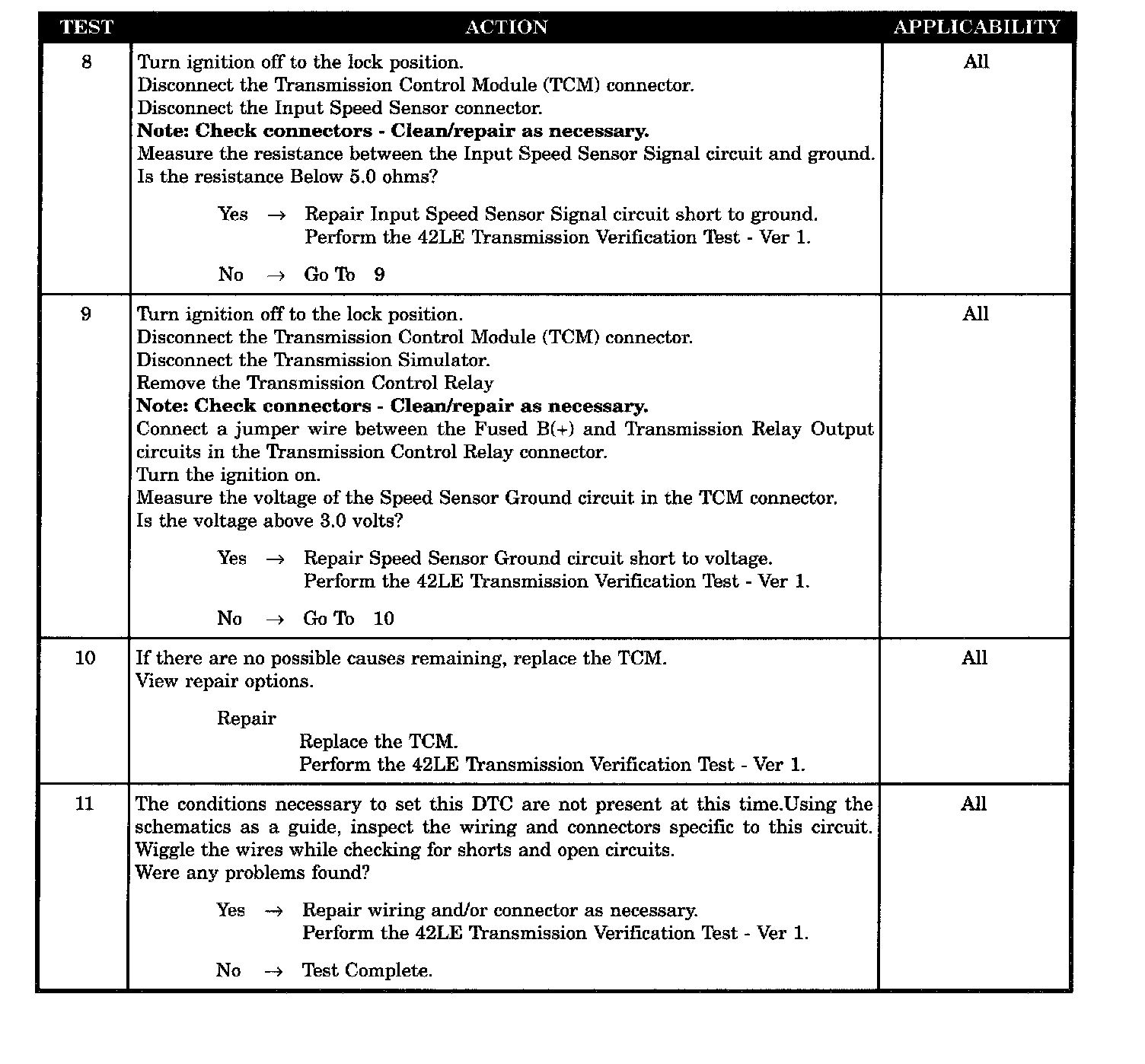

Test 8 Through 11:

SYMPTOM:
P0715-INPUT SPEED SENSOR ERROR

When Monitored and Set Condition:
P0715-INPUT SPEED SENSOR ERROR

When Monitored:
The transmission gear ratio is monitored continuously while the transmission is in gear.

Set Condition:
If there is an excessive change in input RPM in any gear.

POSSIBLE CAUSES
INTERMITTENT WIRING & CONNECTORS
INPUT SPEED SENSOR ERROR
INPUT SPEED SENSOR SIGNAL CIRCUIT OPEN
SPEED SENSOR GROUND CIRCUIT OPEN
INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND
INPUT SPEED SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
TCM (INPUT SPEED SENSOR)
