P0705

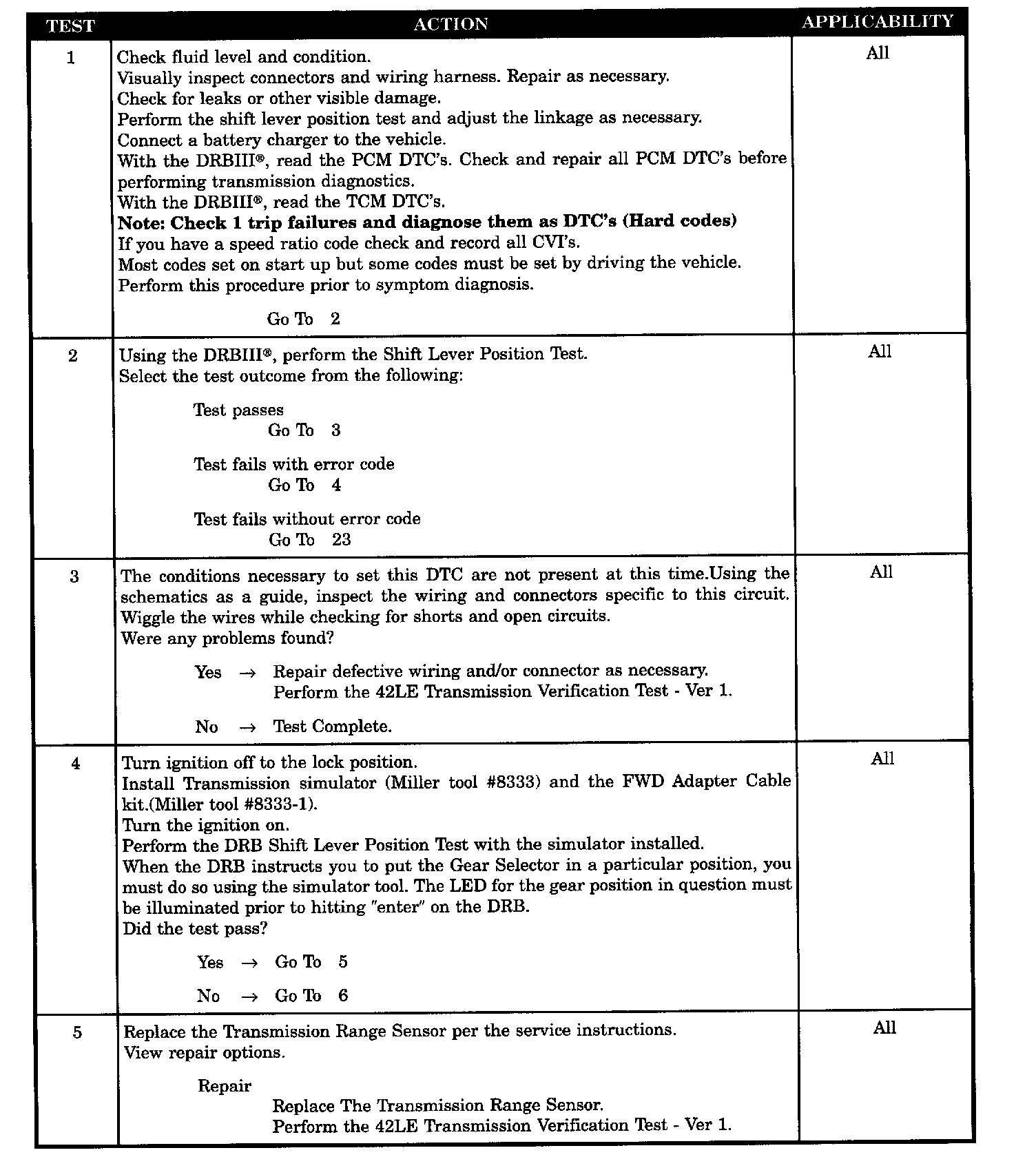

Test 1 Through 5:

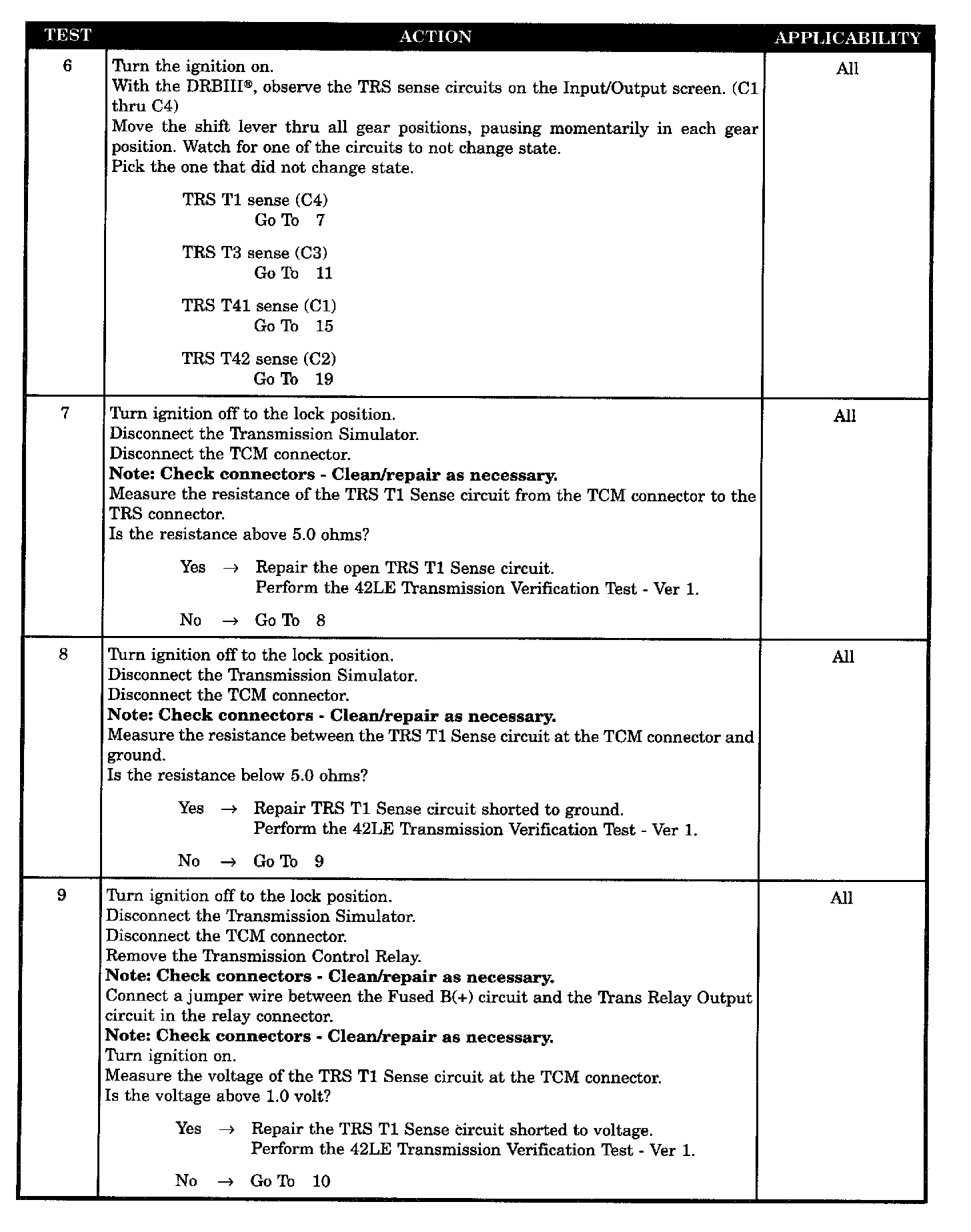

Test 6 Through 9:

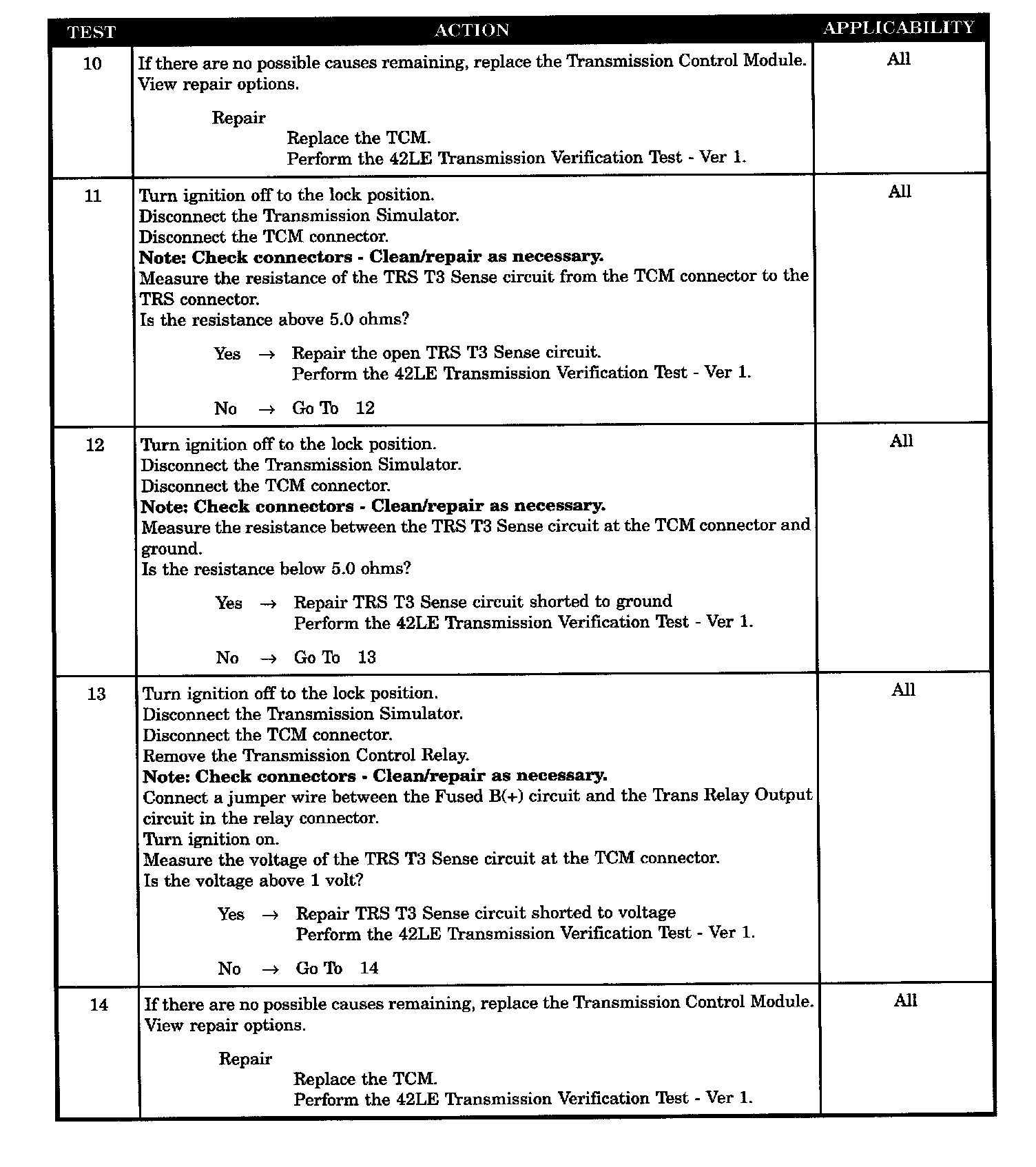

Test 10 Through 14:

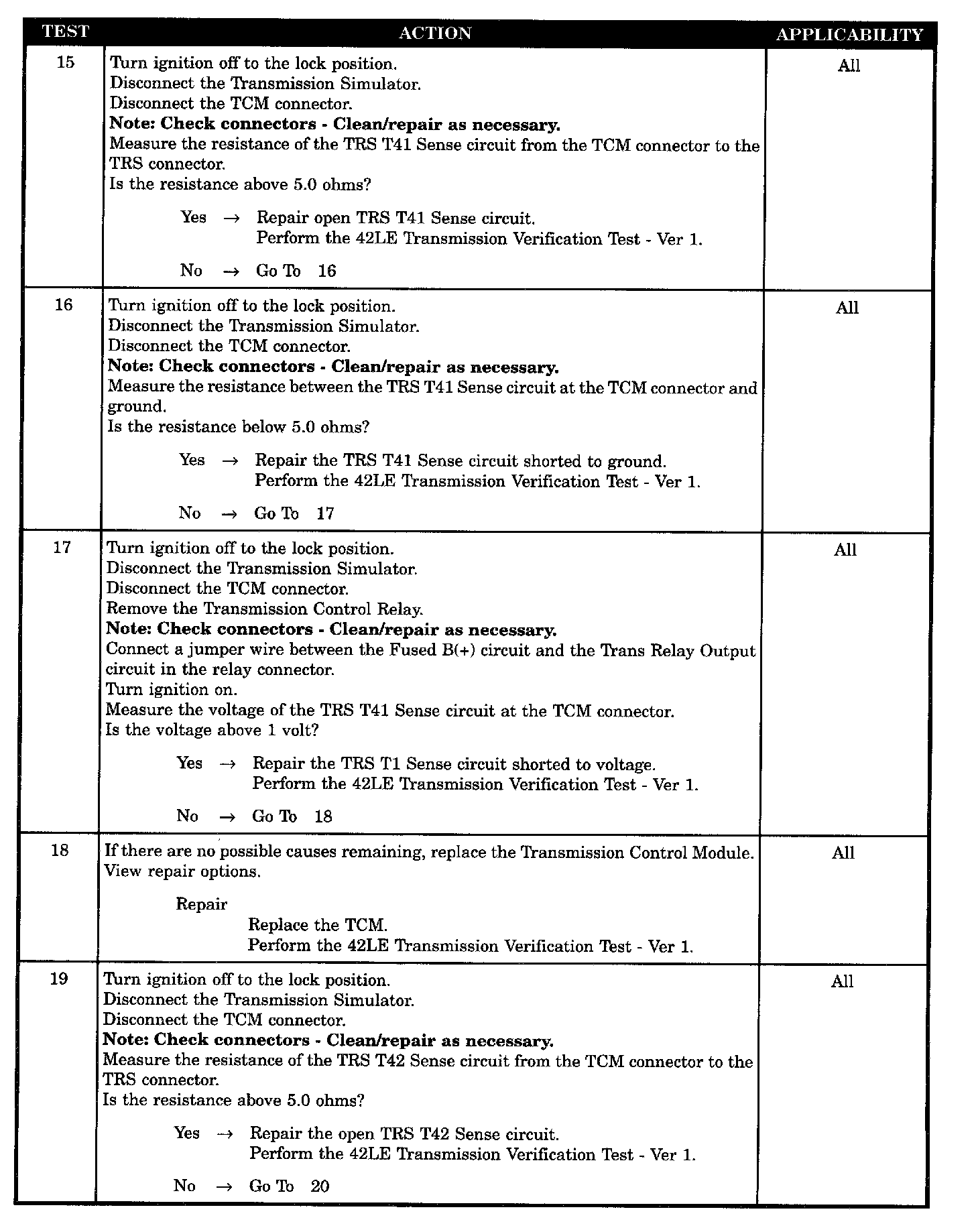

Test 15 Through 19:

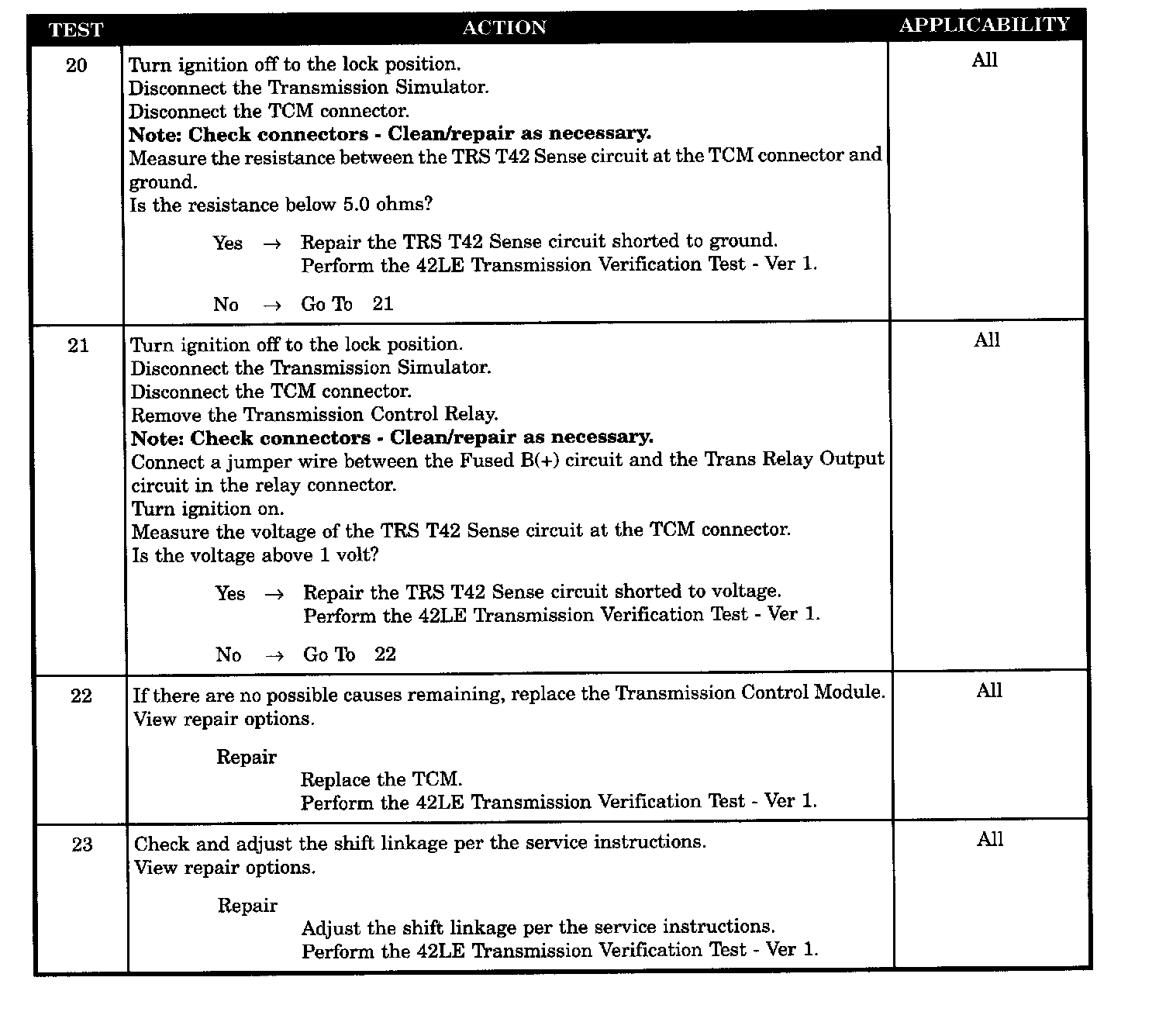

Test 20 Through 23:

SYMPTOM:
P0705-CHECK SHIFTER SIGNAL

When Monitored and Set Condition:
P0705-CHECK SHIFTER SIGNAL

When Monitored:
Continuously with the ignition key on.

Set Condition:
3 occurrences in one key start of an invalid PRNDL code which lasts for more than 0.1 second.

POSSIBLE CAUSES
TRANSMISSION RANGE SENSOR
INTERMITTENT WIRING & CONNECTORS
TRS T1 SENSE CIRCUIT OPEN
TRS T3 SENSE CIRCUIT OPEN
TRS T41 SENSE CIRCUIT OPEN
TRS T42 SENSE CIRCUIT OPEN
TRS T1 SENSE CIRCUIT SHORTED TO GROUND
TRS T3 SENSE CIRCUIT SHORTED TO GROUND
TRS T41 SENSE CIRCUIT SHORTED TO GROUND
TRS T42 SENSE CIRCUIT SHORTED TO GROUND
TCM (TRS T1 SENSE CIRCUIT)
TCM (TRS T3 SENSE CIRCUIT)
SHIFT LINKAGE OUT OF ADJUSTMENT.
TCM (TRS T41 SENSE CIRCUIT)
TCM (TRS T42 SENSE CIRCUIT)
TRS T1 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS T3 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS T41 SENSE CIRCUIT SHORTED TO VOLTAGE
TRS T42 SENSE CIRCUIT SHORTED TO VOLTAGE
