P0500

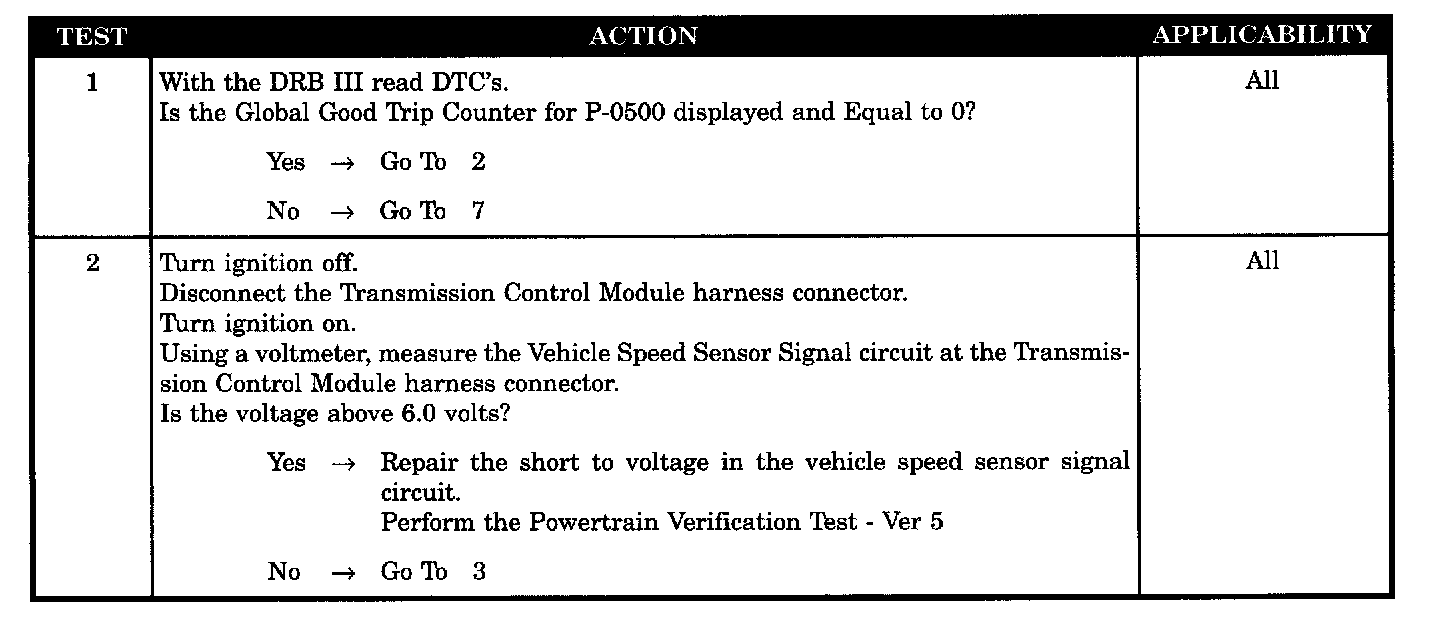

Tests 1 - 2:

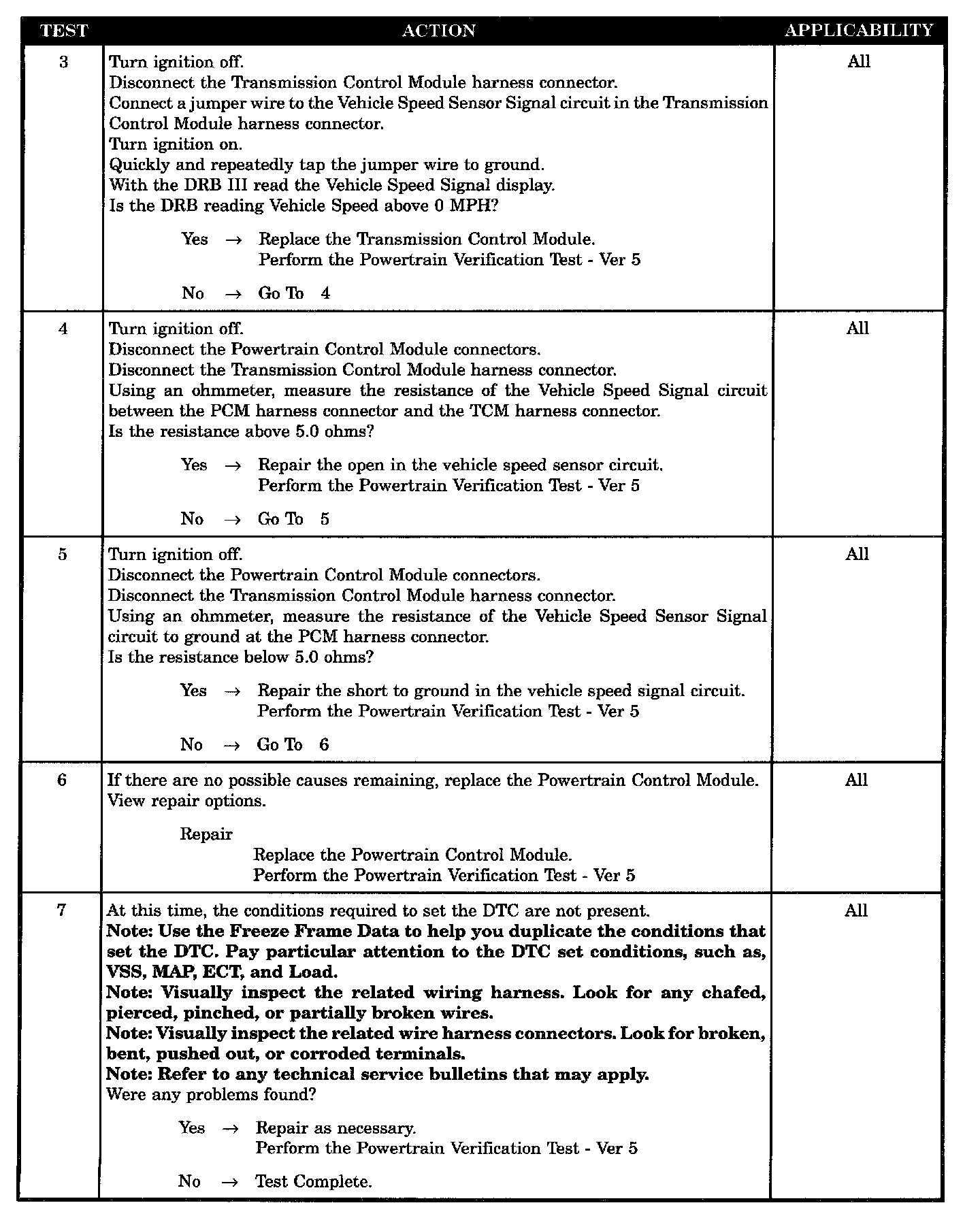

Tests 3 - 7:

SYMPTOM
P0500 - NO VEHICLE SPEED SIGNAL

WHEN MONITORED
With the engine running, transmission not in PARK or NEUTRAL, brakes not applied, and engine speed greater than 1500 rpm.

SET CONDITION
This code will set if no vehicle speed signal is received from the TCM (transmission control module) for more than 11 seconds for 2 consecutive trips.

POSSIBLE CAUSES
- Intermittent vehicle speed signal
- Vehicle speed signal circuit open
- Vehicle speed signal circuit shorted to ground
- Vehicle speed signal circuit shorted to voltage
- Powertrain control module
- Transmission control module
