P0325

Tests 1 - 2:

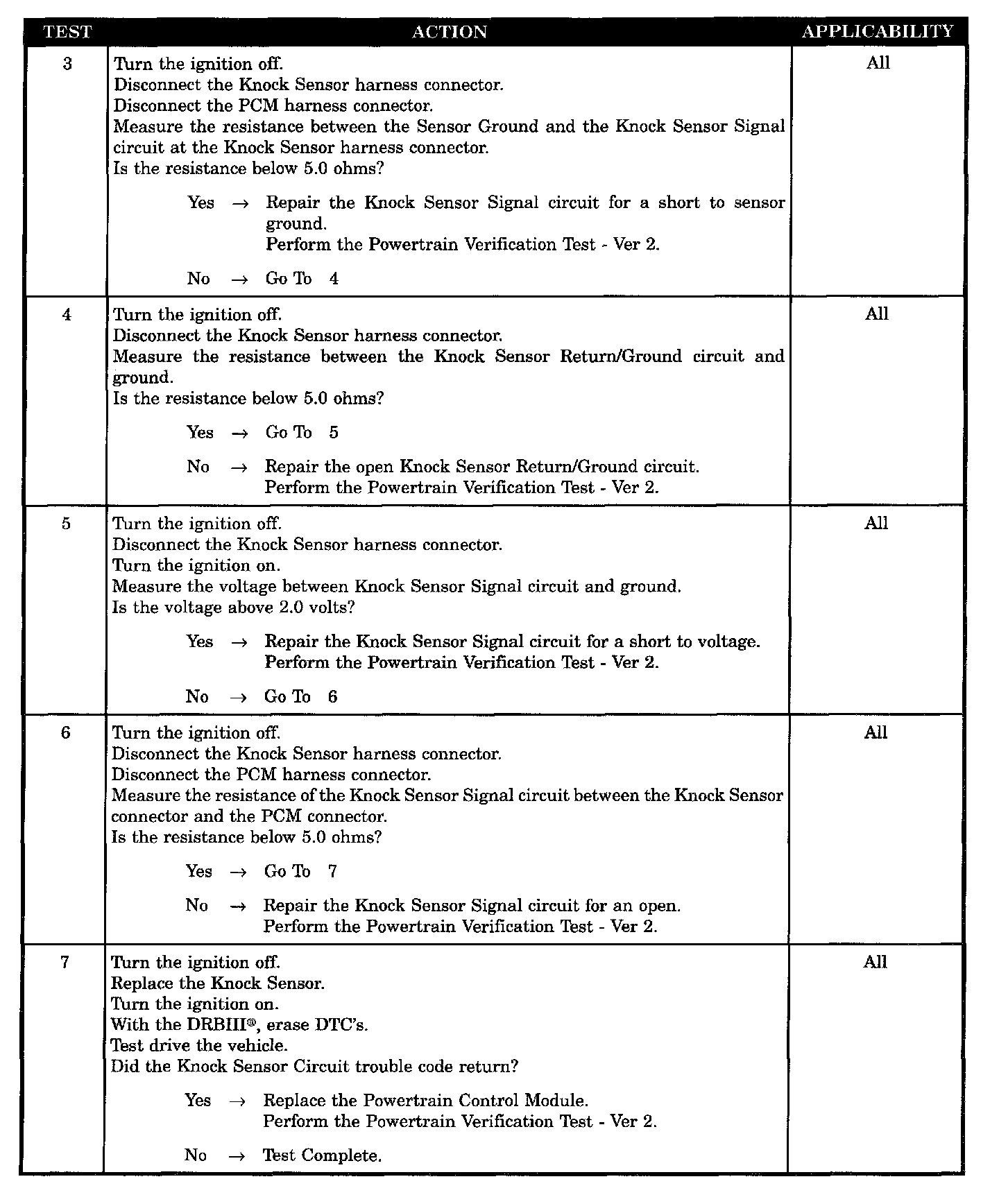

Tests 3 - 7:

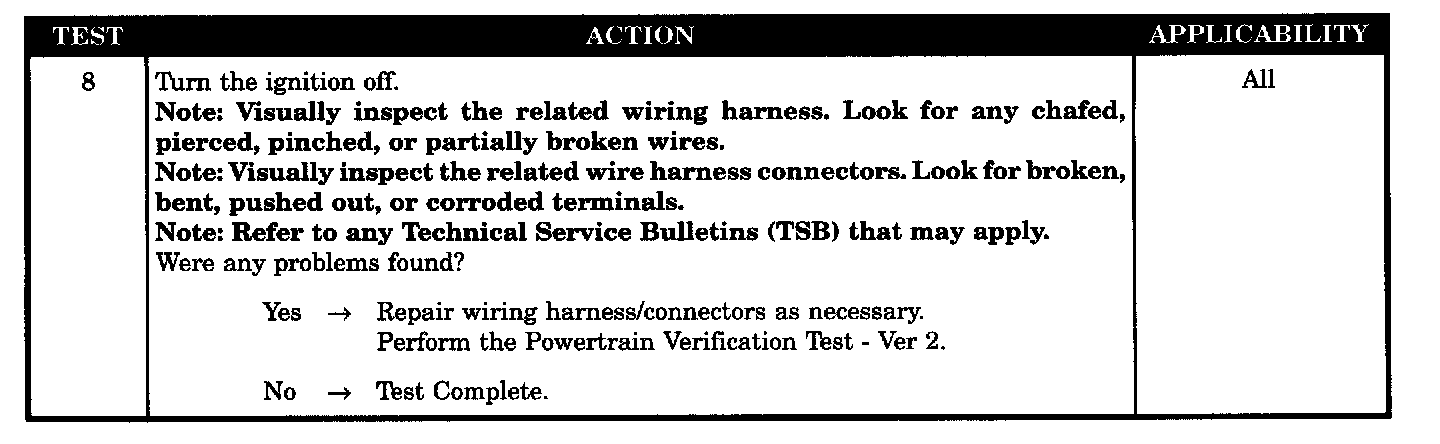

Test 8:

SYMPTOM
P0325 - KNOCK SENSOR # 1 CIRCUIT

WHEN MONITORED
With the ignition ON and the engine running.

SET CONDITION
The knock sensor circuit voltage falls below a minimum value at idle or deceleration. The minimum value is from a look-up table internal to the PCM and is based on engine rpm. DTC also sets if sensor output goes above 5.0 volts.

POSSIBLE CAUSES
- Wiring harness intermittent problem
- Knock sensor return open
- Knock sensor signal open
- Knock sensor signal shorted to ground
- Knock sensor signal shorted to sensor ground
- Knock sensor signal shorted to voltage
- PCM
