P0113

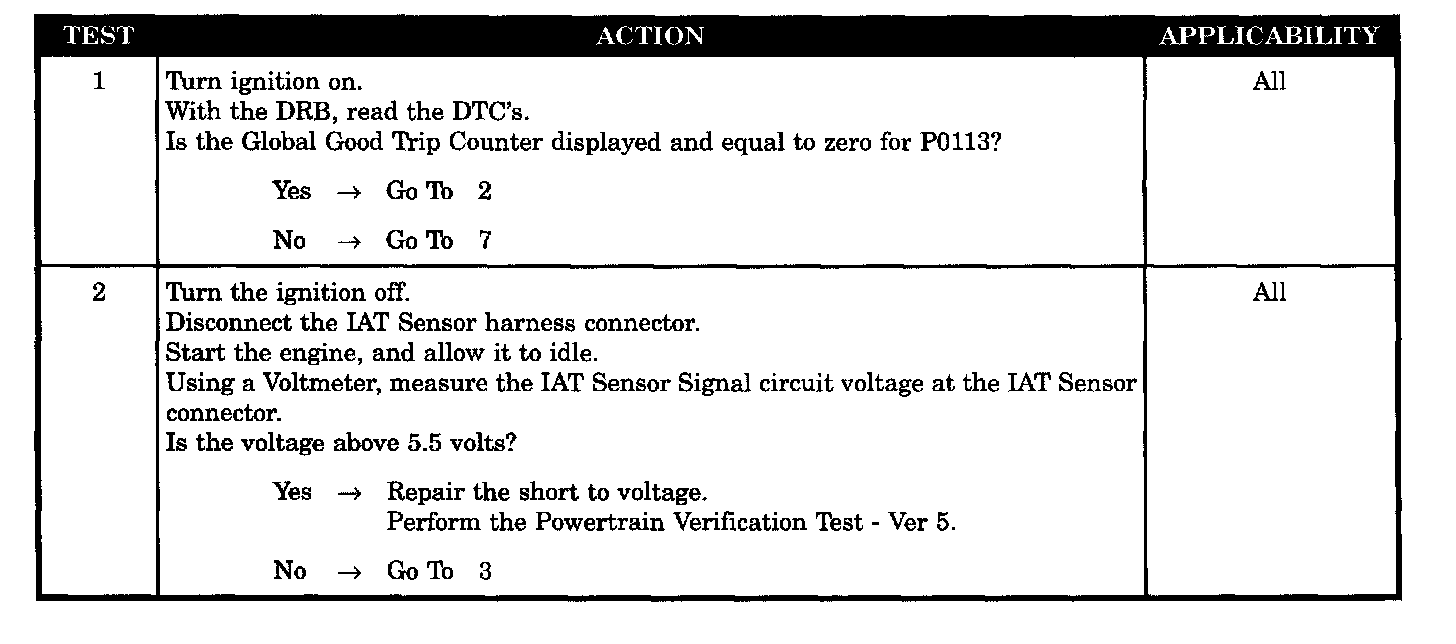

Tests 1 - 2:

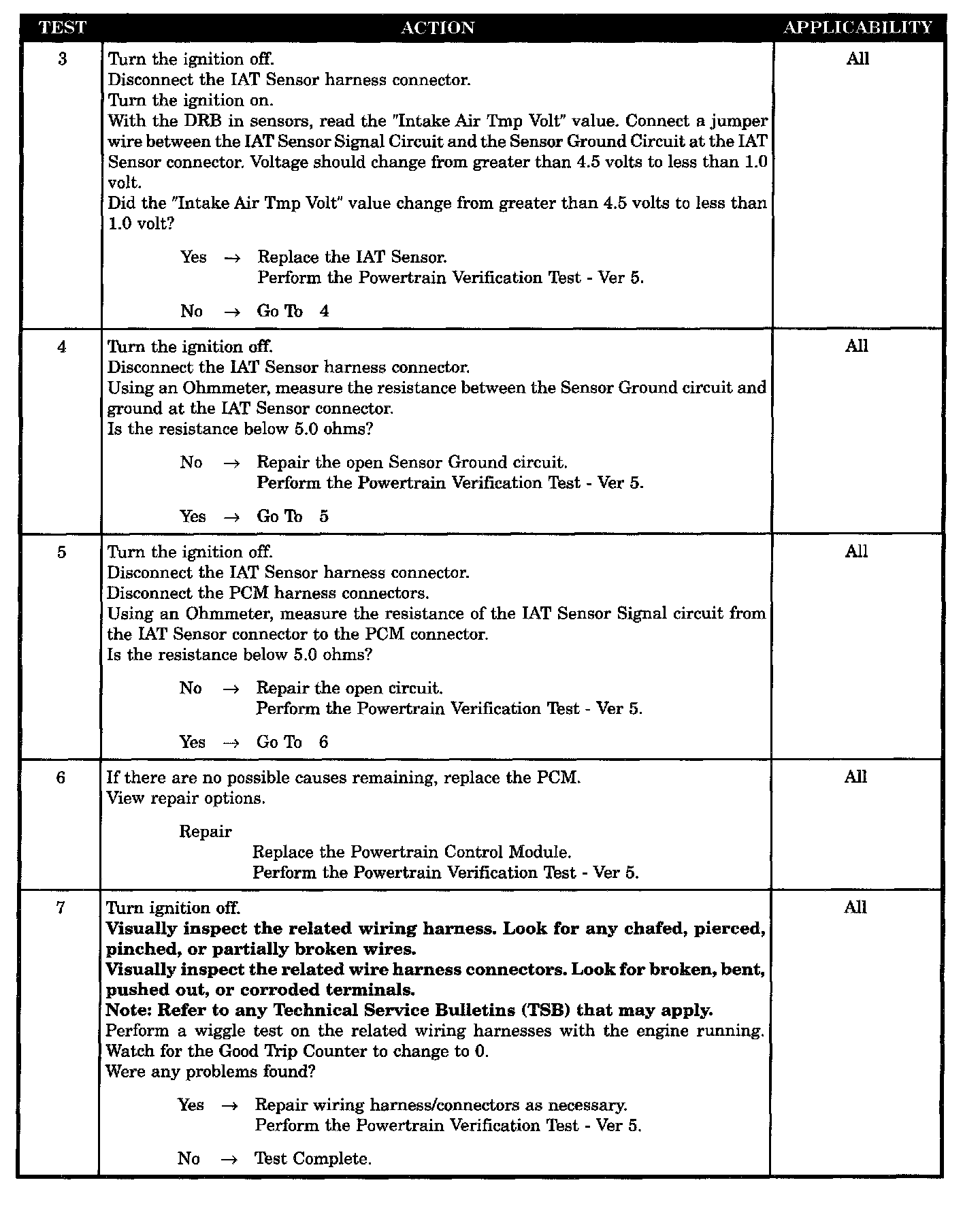

Tests 3 - 7:

SYMPTOM
P0113 - INTAKE AIR TEMPERATURE SENSOR VOLTAGE TOO HIGH

WHEN MONITORED
With the ignition ON and battery voltage greater than 10.4 volts.

SET CONDITION
The Intake Air Temperature (IAT) sensor circuit voltage at the PCM goes above 4.9 volts.

POSSIBLE CAUSES
- Sensor ground circuit open IAT
- Sensor signal circuit open IAT sensor
- IAT sensor signal circuit shorted to voltage
- Powertrain control module
- Wiring harness intermittent problem
