P0107

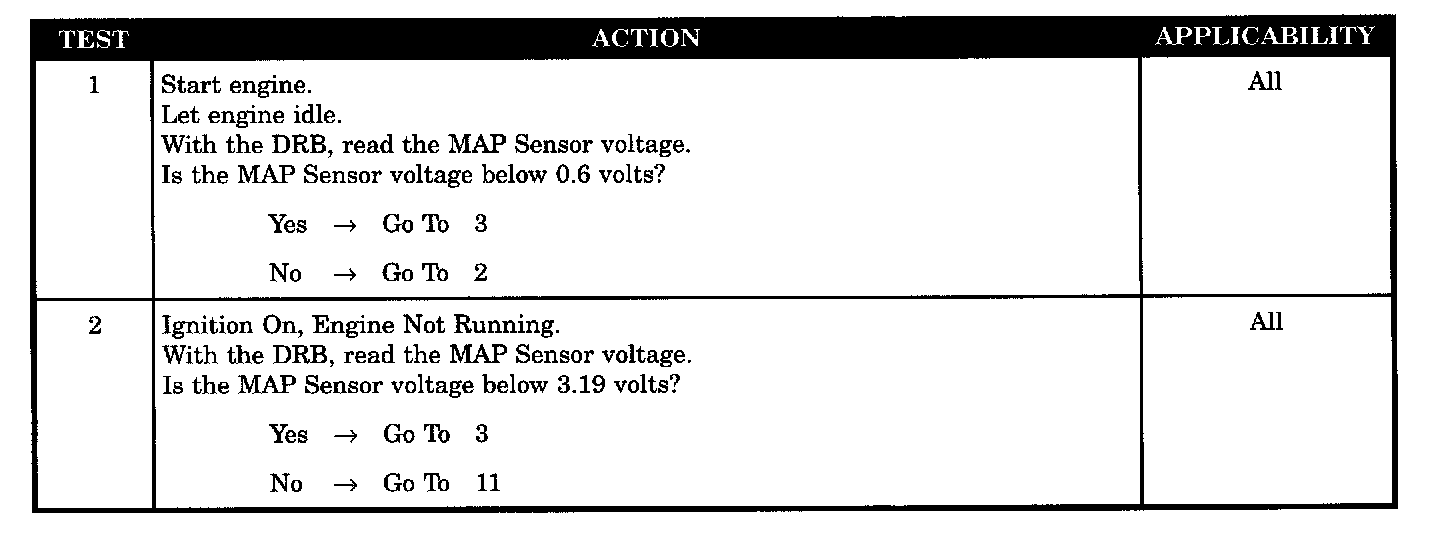

Tests 1 - 2:

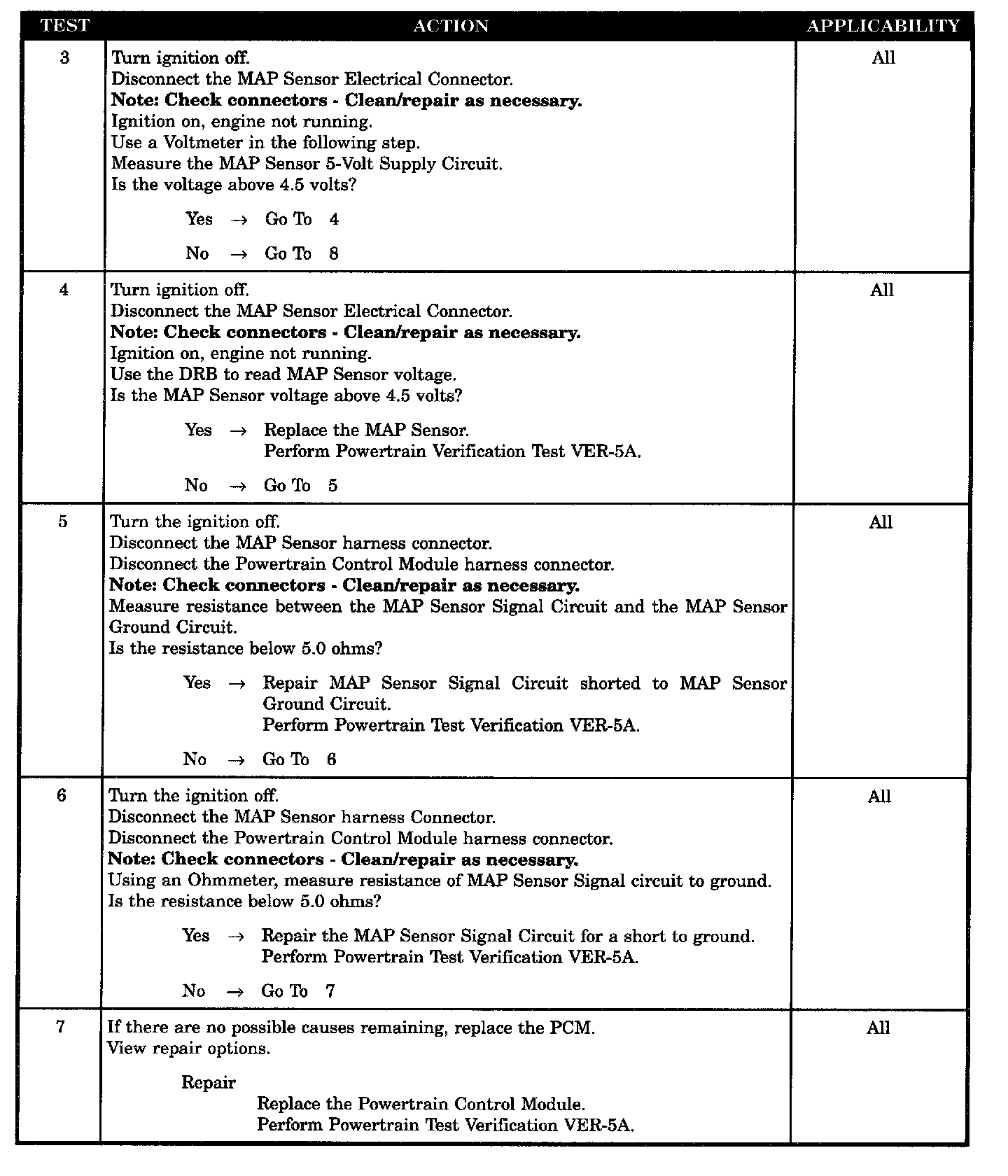

Tests 3 - 7:

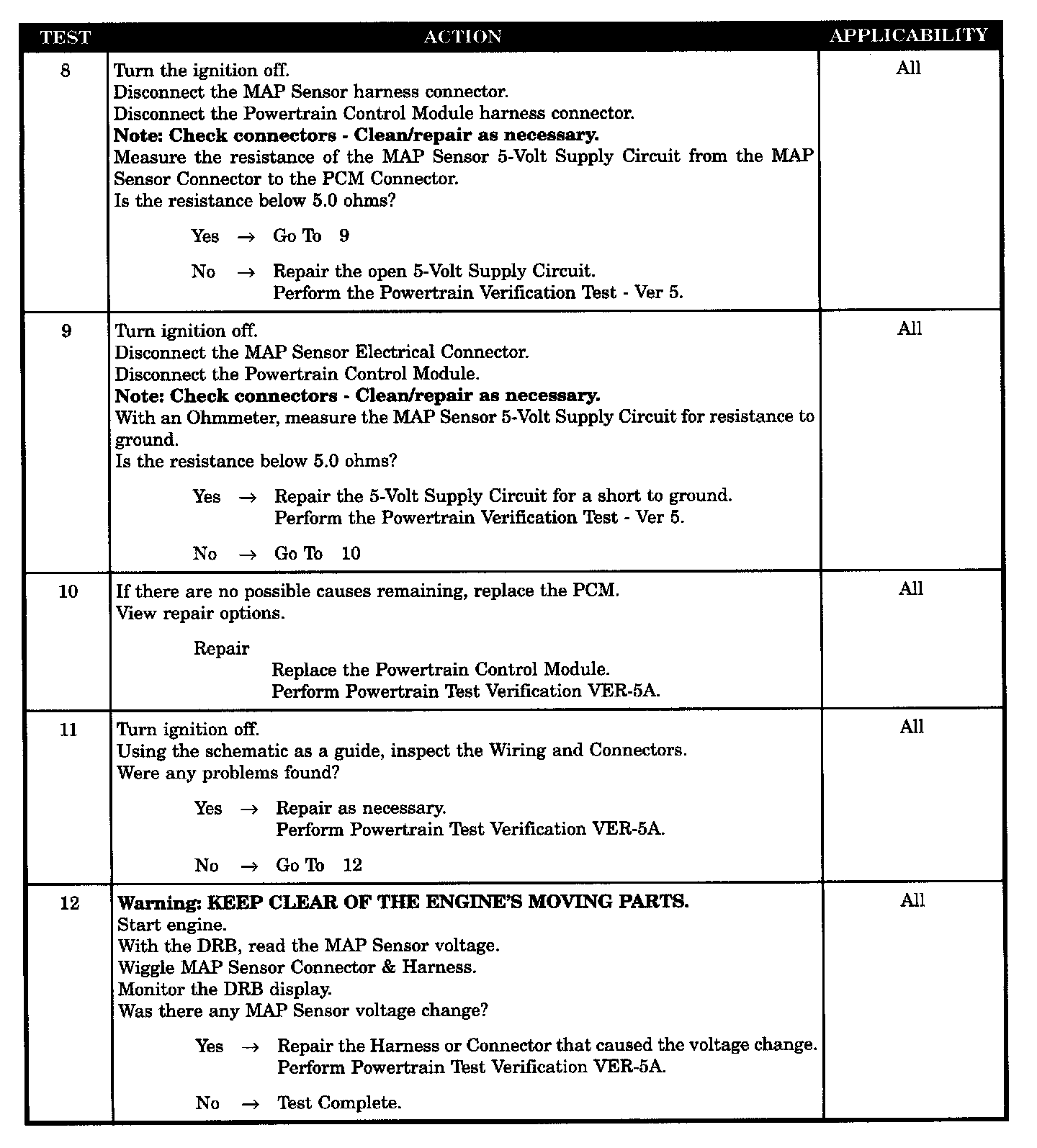

Tests 8 - 12:

SYMPTOM
P0107 - MAP SENSOR VOLTAGE TOO LOW

WHEN MONITORED
With the engine speed above 416 rpm but less than 1500 rpm, the TPS voltage less than 1.13 volts, and battery voltage greater than 10.4 volts.

SET CONDITION
The MAP sensor signal voltage is below 0.1 volt for 2.0 seconds with the engine running.

POSSIBLE CAUSES
- MAP sensor wiring harness intermittent
- MAP sensor wiring harness observable problem
- MAP sensor 5 volt supply circuit open
- MAP sensor 5 volt supply circuit shorted to ground
- MAP sensor signal circuit shorted to sensor ground circuit
- MAP sensor signal circuit shorted to ground
- MAP sensor
- PCM (5 volt supply)
- PCM (signal circuit)
