P0106

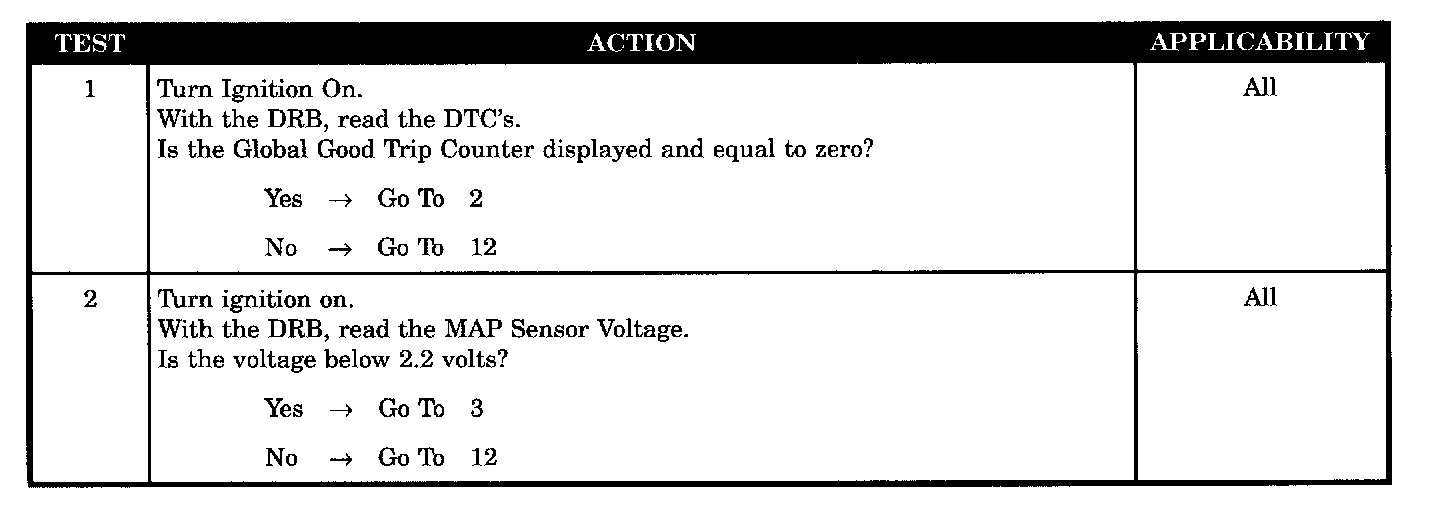

Tests 1 - 2:

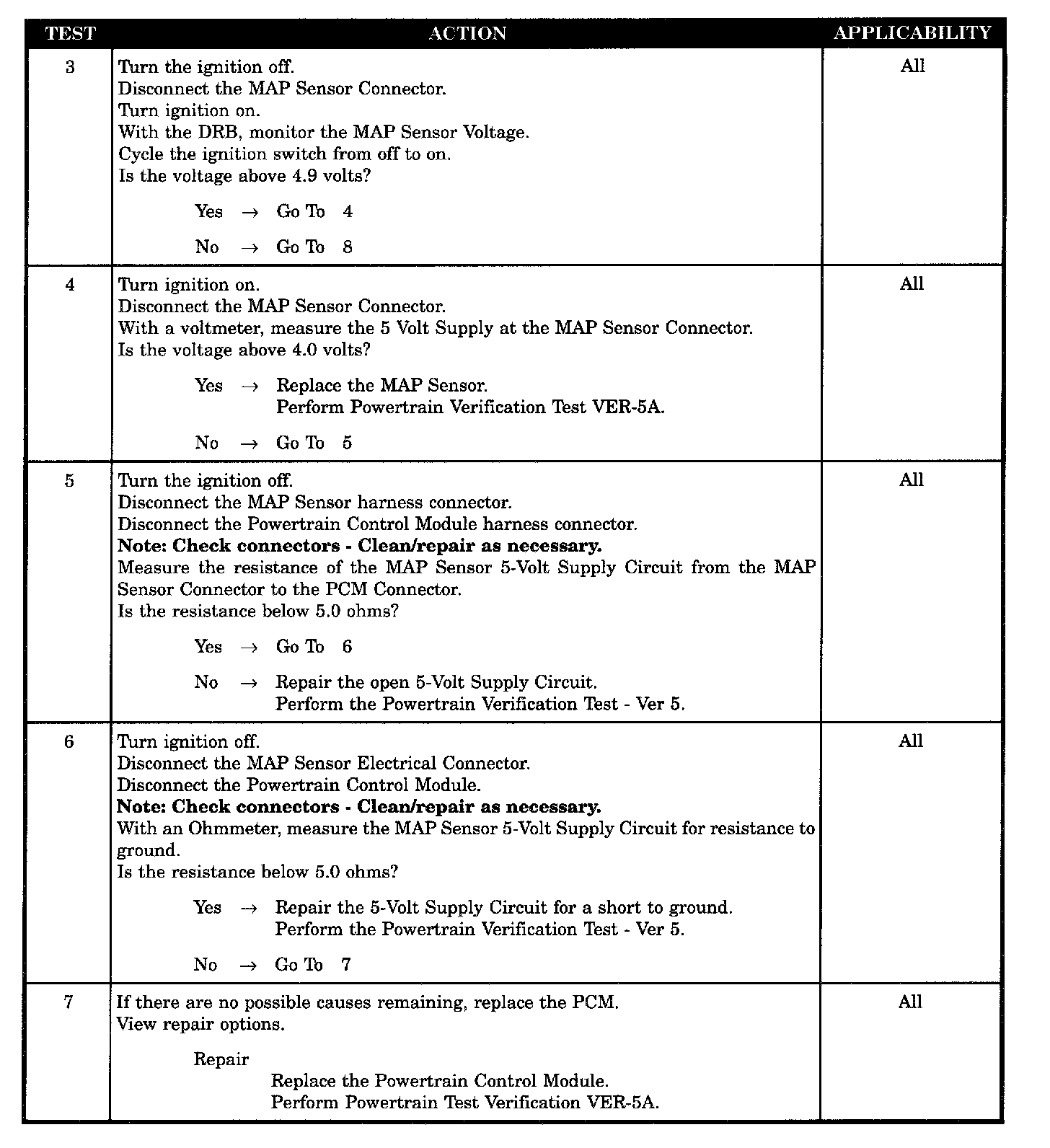

Tests 3 - 7:

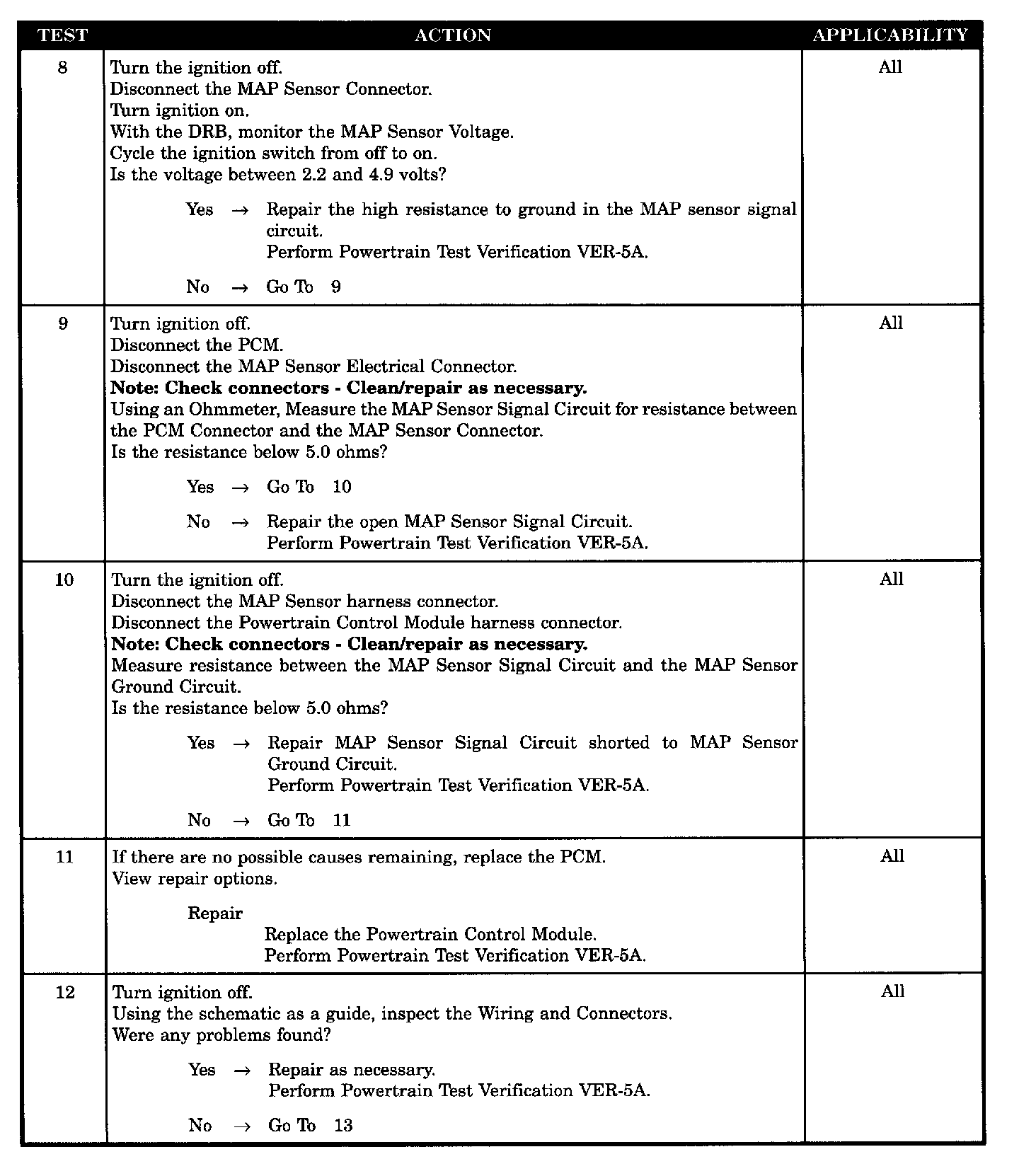

Tests 8 - 12:

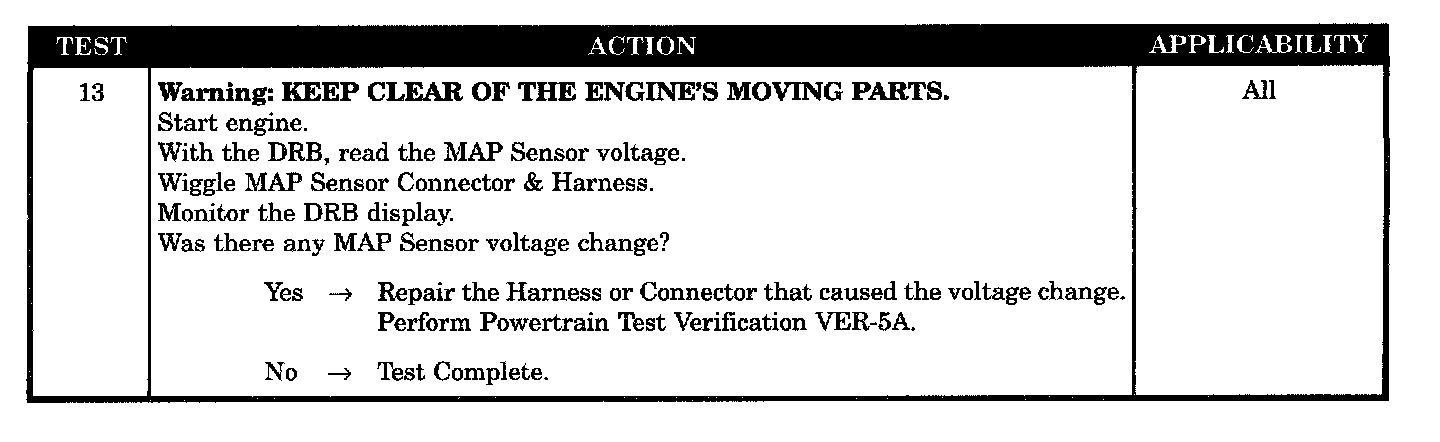

Test 13:

SYMPTOM
P0106 - BAROMETRIC PRESSURE OUT OF RANGE

WHEN MONITORED
With the ignition key ON at less than 350 milliseconds and engine speed at less than 255 RPM.

SET CONDITION
The PCM senses the voltage from the MAP sensor to be less than 2.196 volts but above 0.019 volts for 300 milliseconds.

POSSIBLE CAUSES
- MAP sensor wiring harness intermittent
- MAP sensor wiring harness observable problem
- MAP sensor 5 volt supply circuit open
- MAP sensor 5 volt supply circuit shorted to ground
- MAP sensor signal circuit shorted to sensor ground circuit
- MAP sensor signal circuit high resistance to ground
- MAP sensor signal circuit open
- MAP sensor
- PCM
- PCM defective
