Wiper Not Working at All

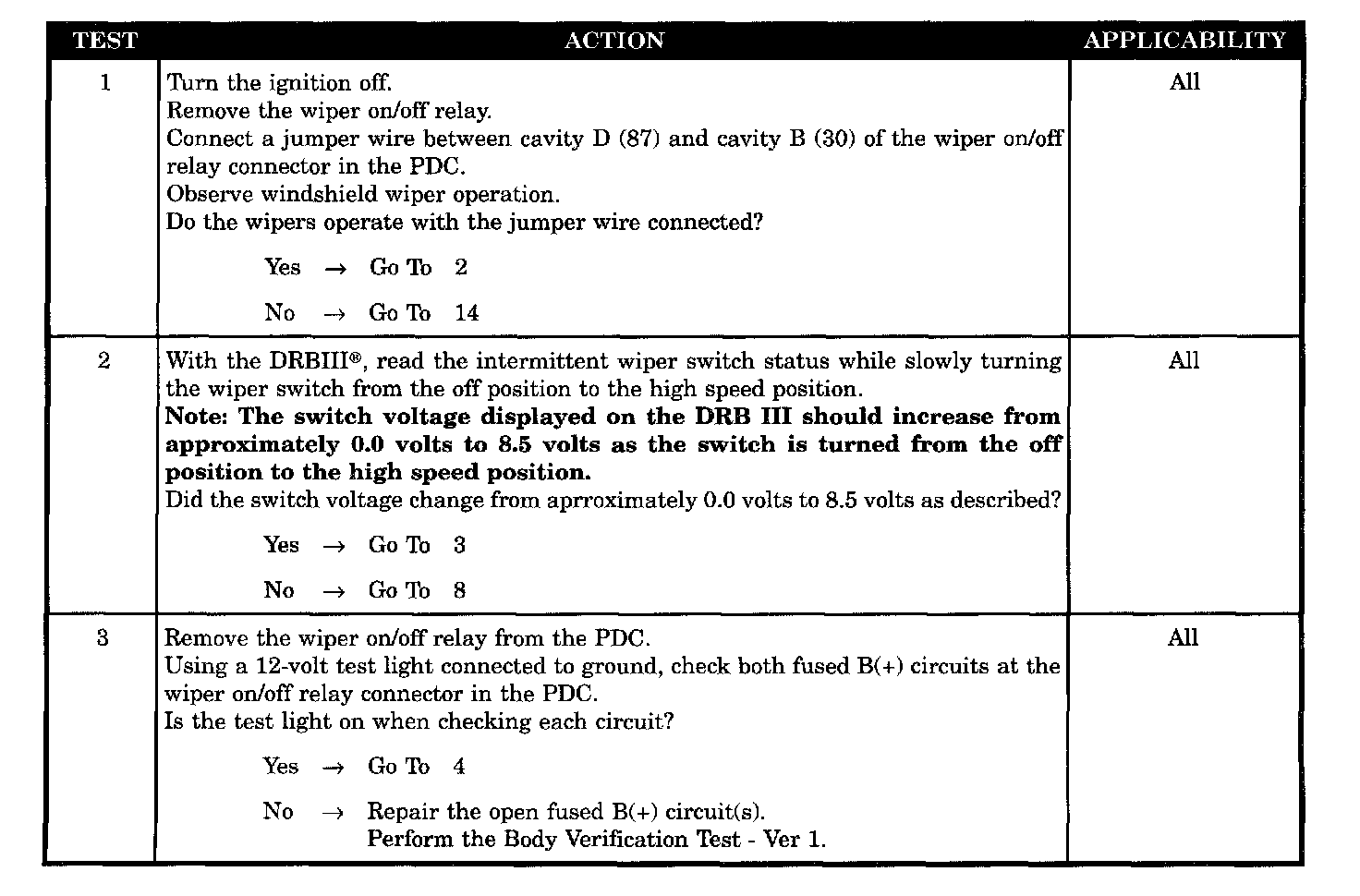

Test 1 - 3:

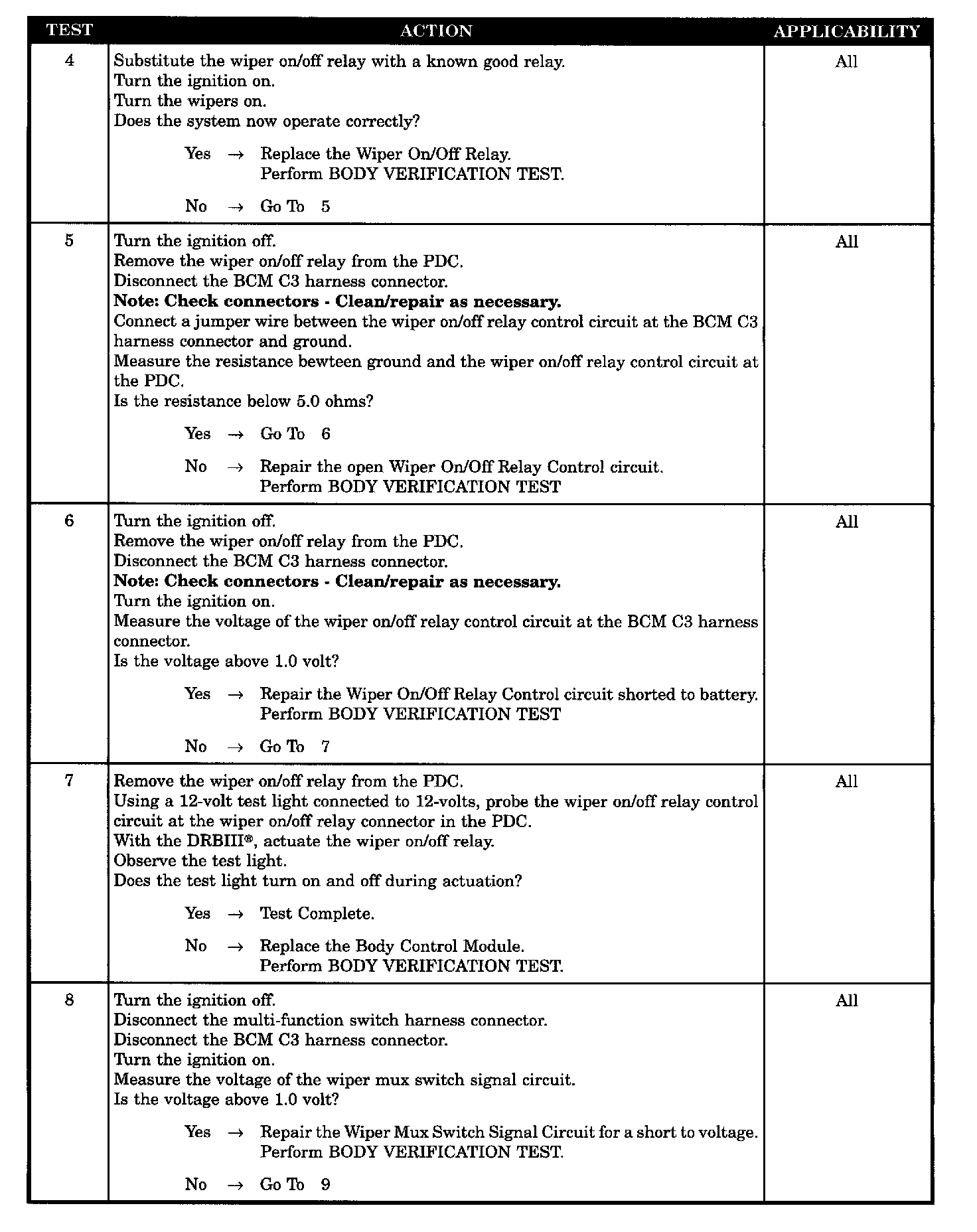

Test 4 - 8:

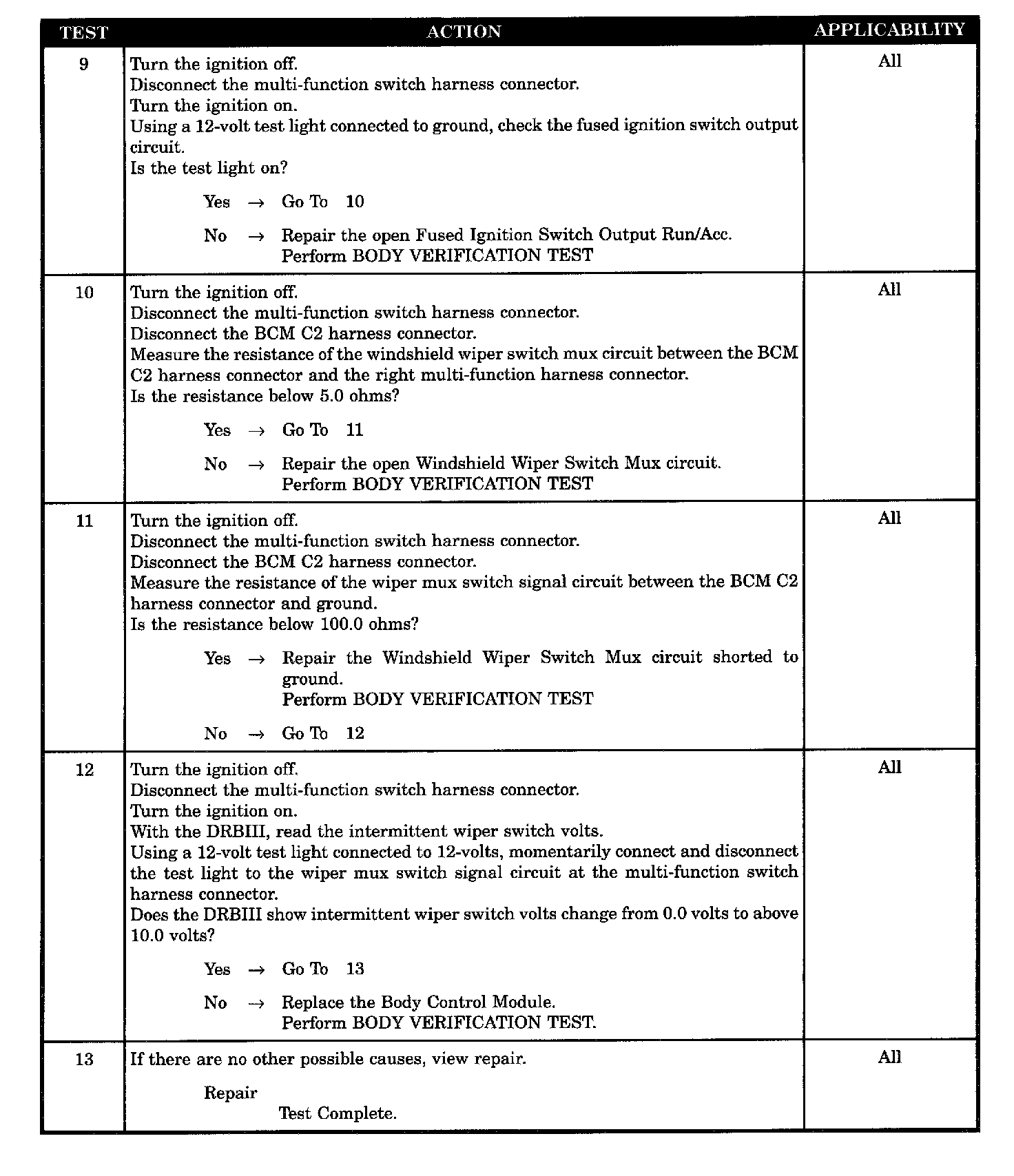

Test 9 - 13:

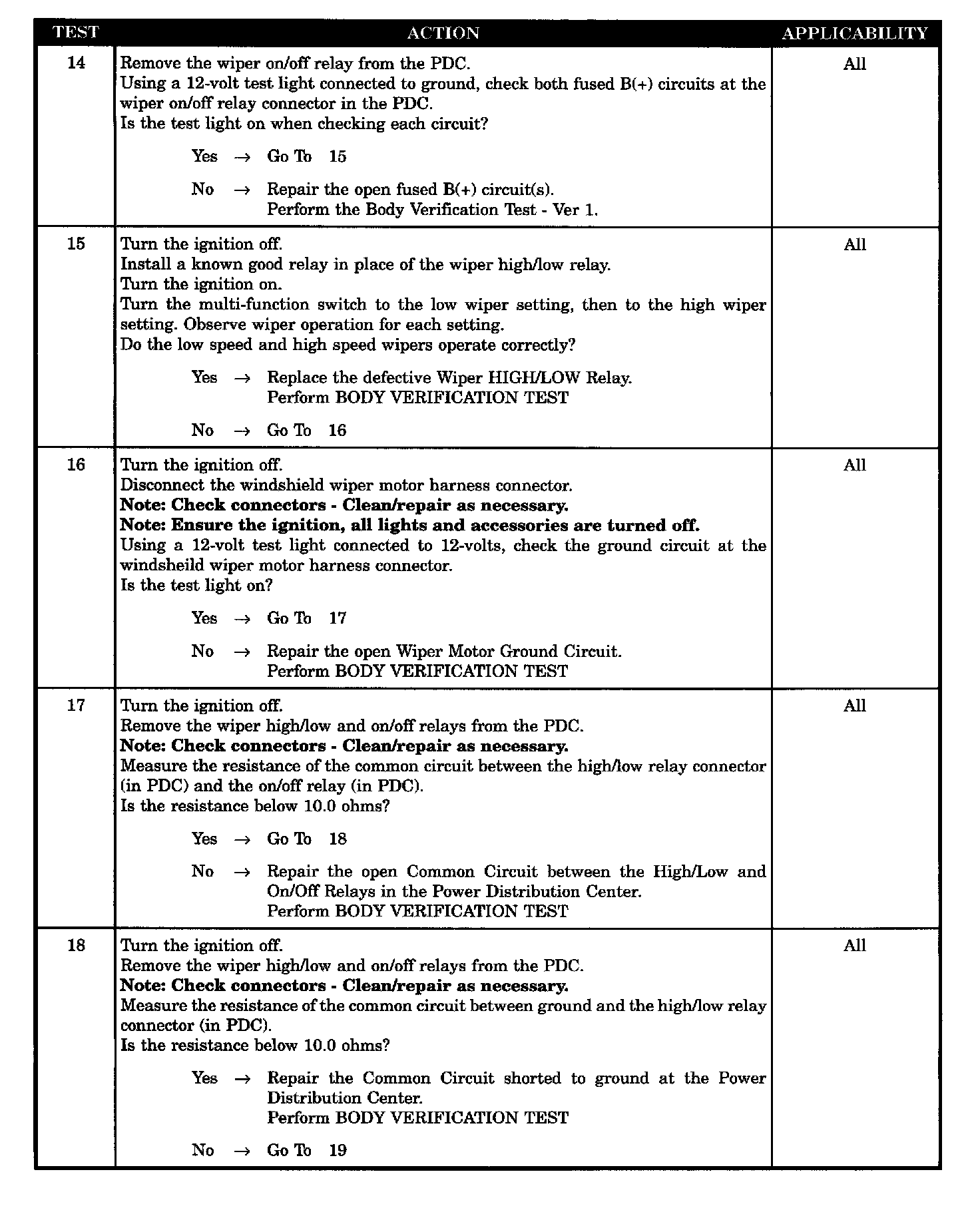

Test 14 - 18:

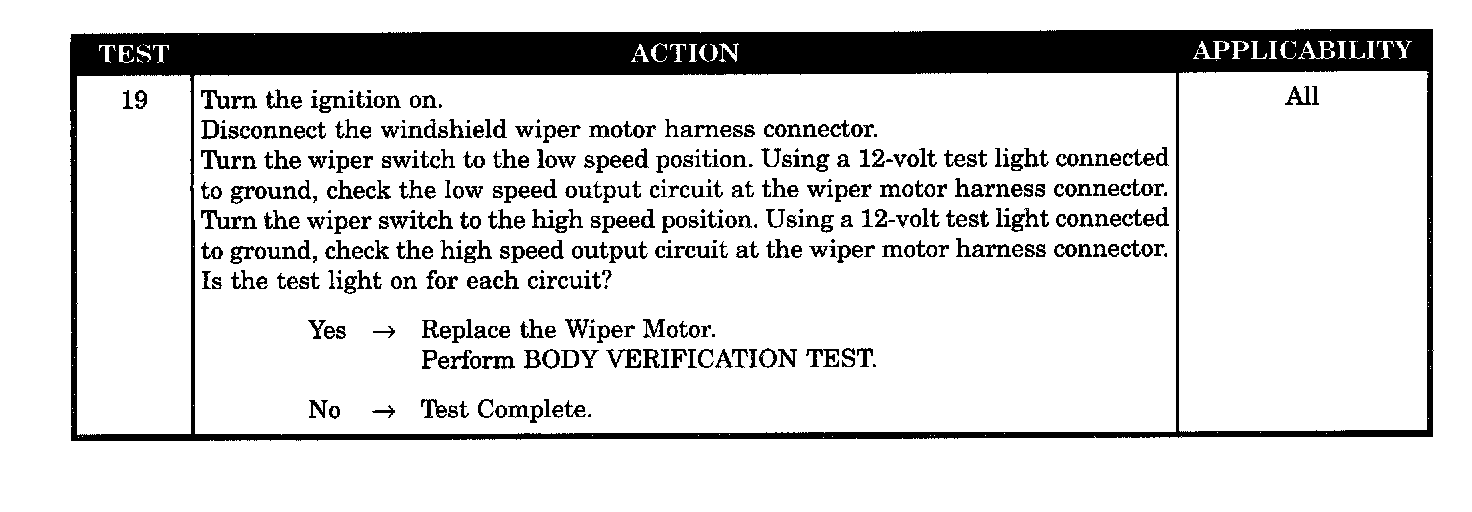

Test 19:

SYMPTOM
WIPER,NOT WORKING AT ALL

POSSIBLE CAUSES
- Fused B(+) circuit open
- Ground circuit open
- Wiper high/Low relay defective
- Fused ignition switch output run/ACC circuit open
- Wiper ON/OFF relay defective
- Common circuit shorted to ground
- Open common CKT open
- Windshield wiper switch MUX circuit open
- Windshield wiper switch MUX circuit shorted to ground
- Wiper ON/OFF relay control circuit open
- Wiper ON/OFF relay control circuit shorted to voltage
- Defective wiper motor- not working at all
- BCM defective-wiper MUX circuit open
