Washer Inoperative

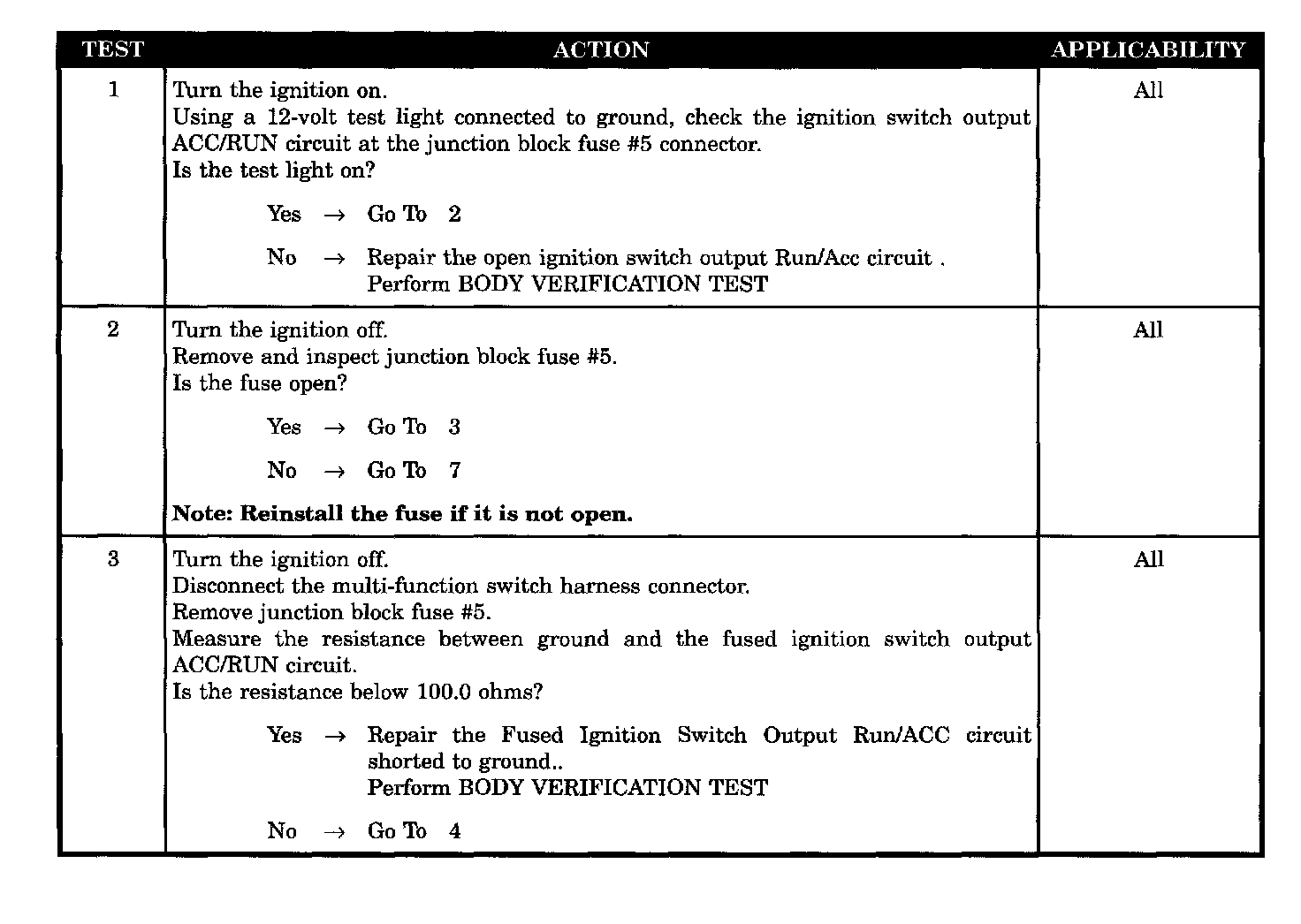

Test 1 - 3:

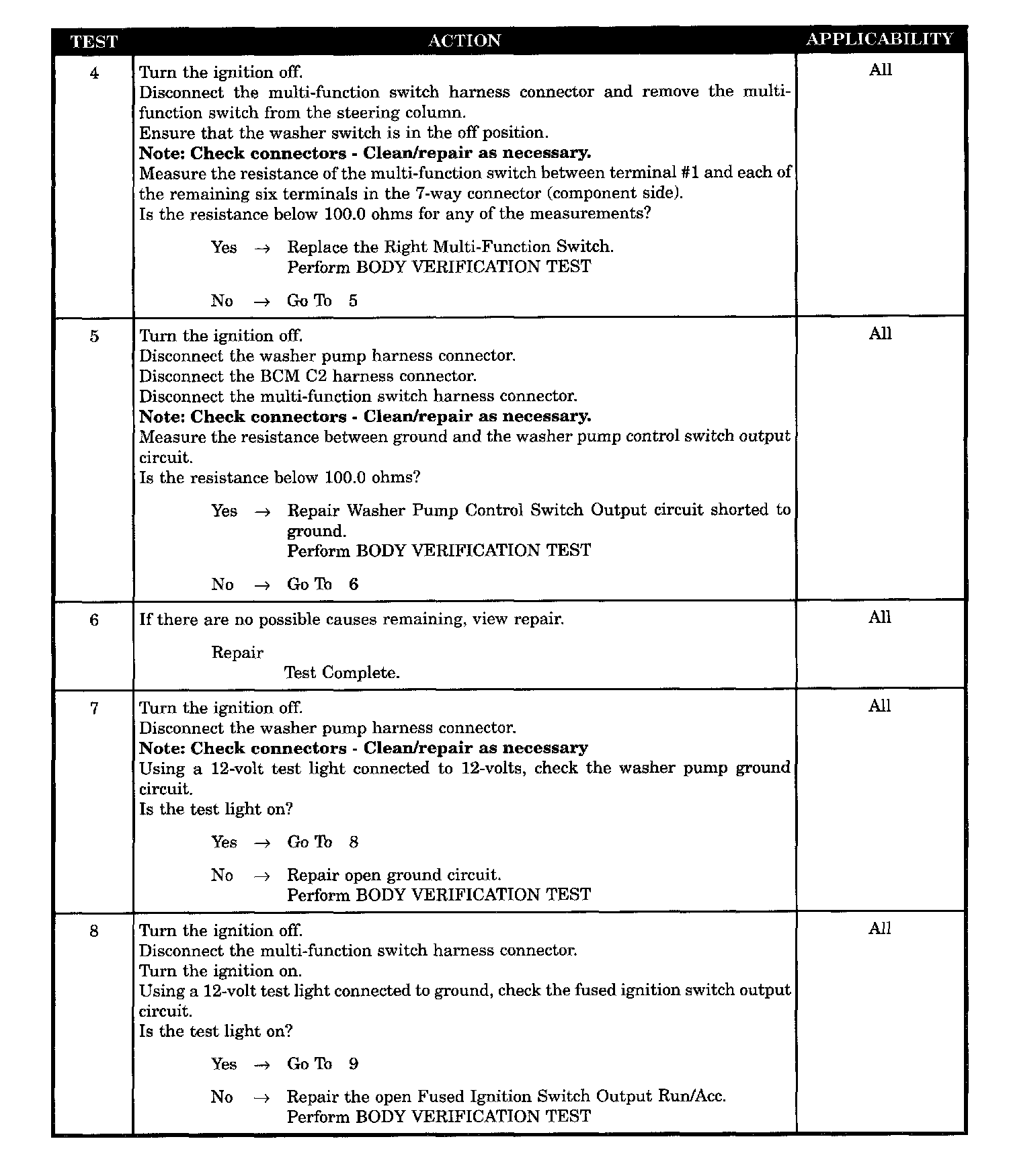

Test 4 - 8:

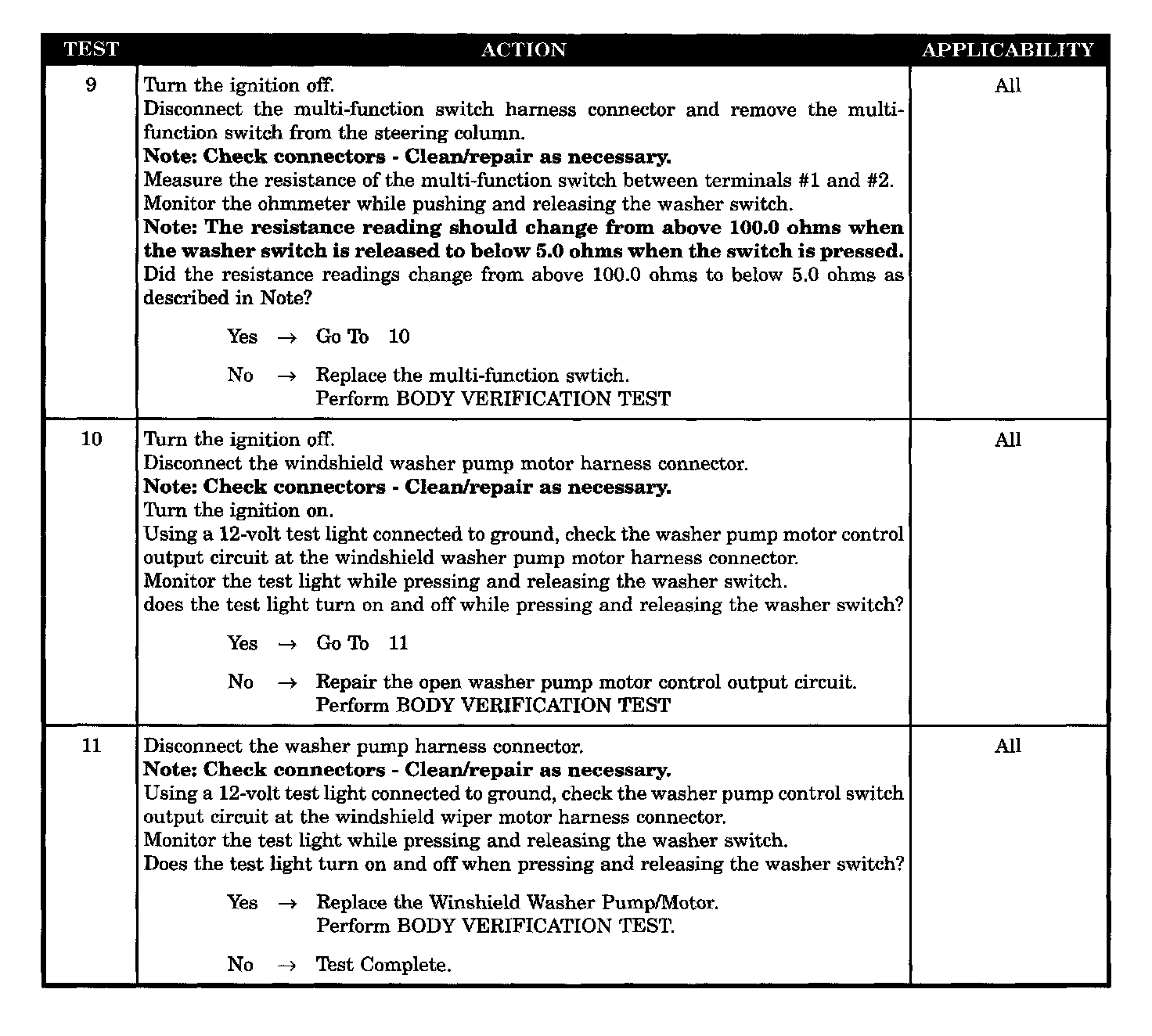

Test 9 - 11:

SYMPTOM
WASHER,INOPERATIVE

POSSIBLE CAUSES
- Ground circuit open
- Washer pump open
- Fused ignition switch output run/ACC circuit open
- Washer pump switch open
- Washer pump control switch output circuit open
- Fused ignition switch output run/ACC short to ground
- Washer pump shorted
- Washer pump motor control circuit short to ground
- Ignition switch output run/ACC circuit open
- Washer pump switch internally shorted
