VTSS Indicator Inoperative

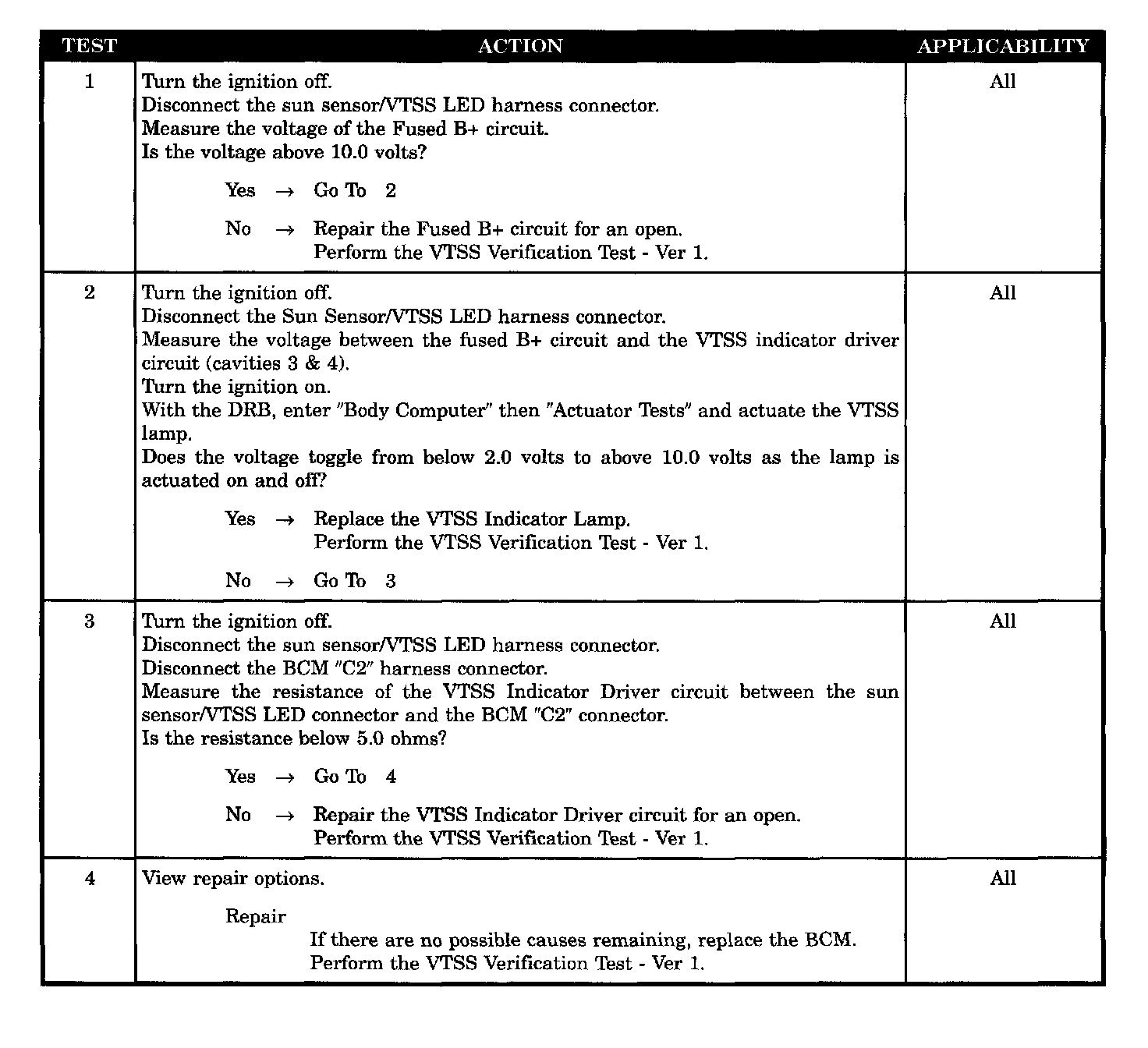

Test 1 - 4:




SYMPTOM
VTSS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Open fused B+ circuit
- Open VTSS indicator driver circuit
- Open VTSS indicator lamp
- Body control module
