Speed Proportional Steering Solenoid Over-Temperature

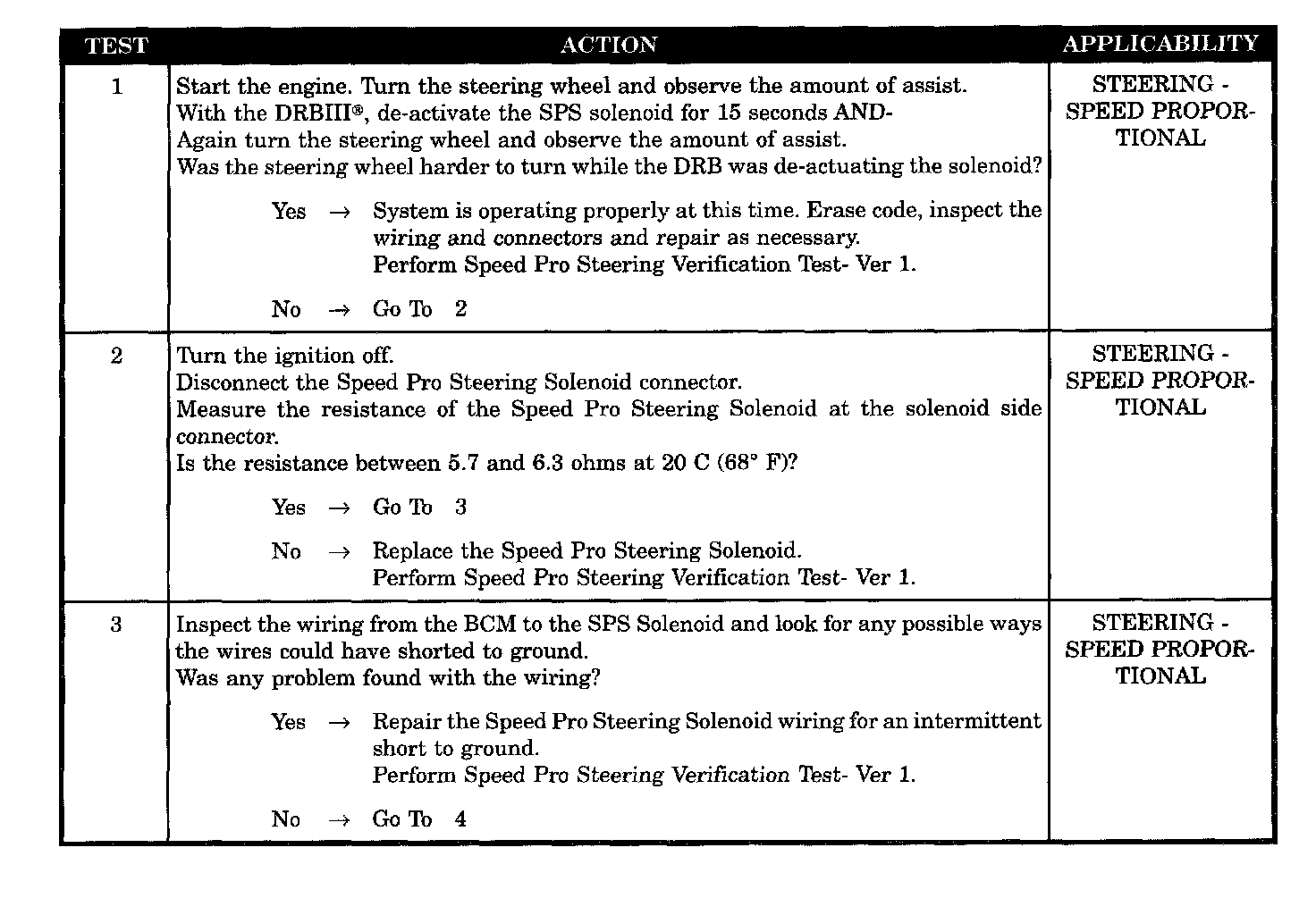

Test 1 - 3:

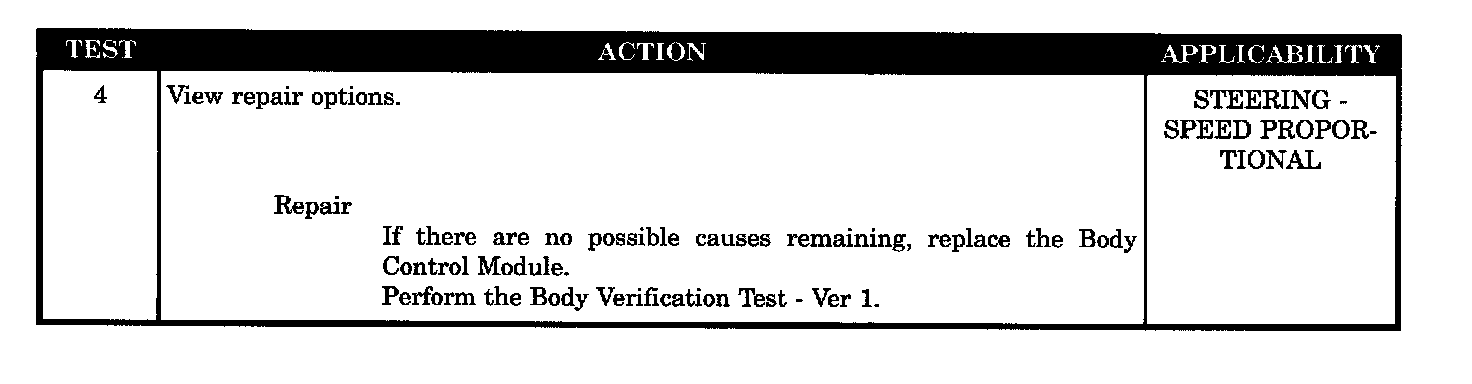

Test 4:

SYMPTOM
SPEED PRO STEERING SOLENOID OVER-TEMPERATURE

WHEN MONITORED
With ignition ON.

SET CONDITION
BCM detects an over temperature condition on its speed proportional output driver

POSSIBLE CAUSES
- Speed PRO steering solenoid wiring intermittent short to ground
- Open/Shorted speed PRO steering solenoid
- Speed proportional steering check solenoid over-temperature
- Body control module
