ORC Passenger Squib 1 Shorted to Ground (Active)

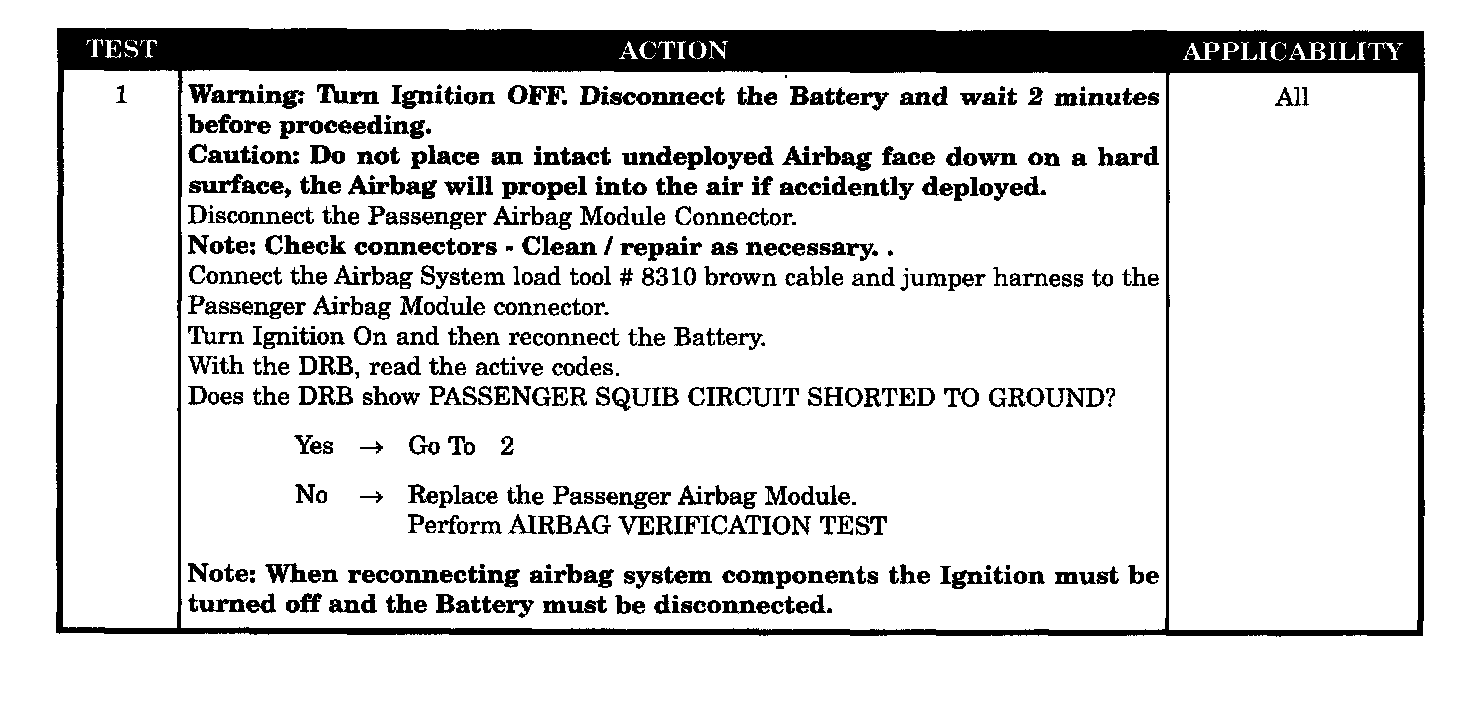

Test 1:

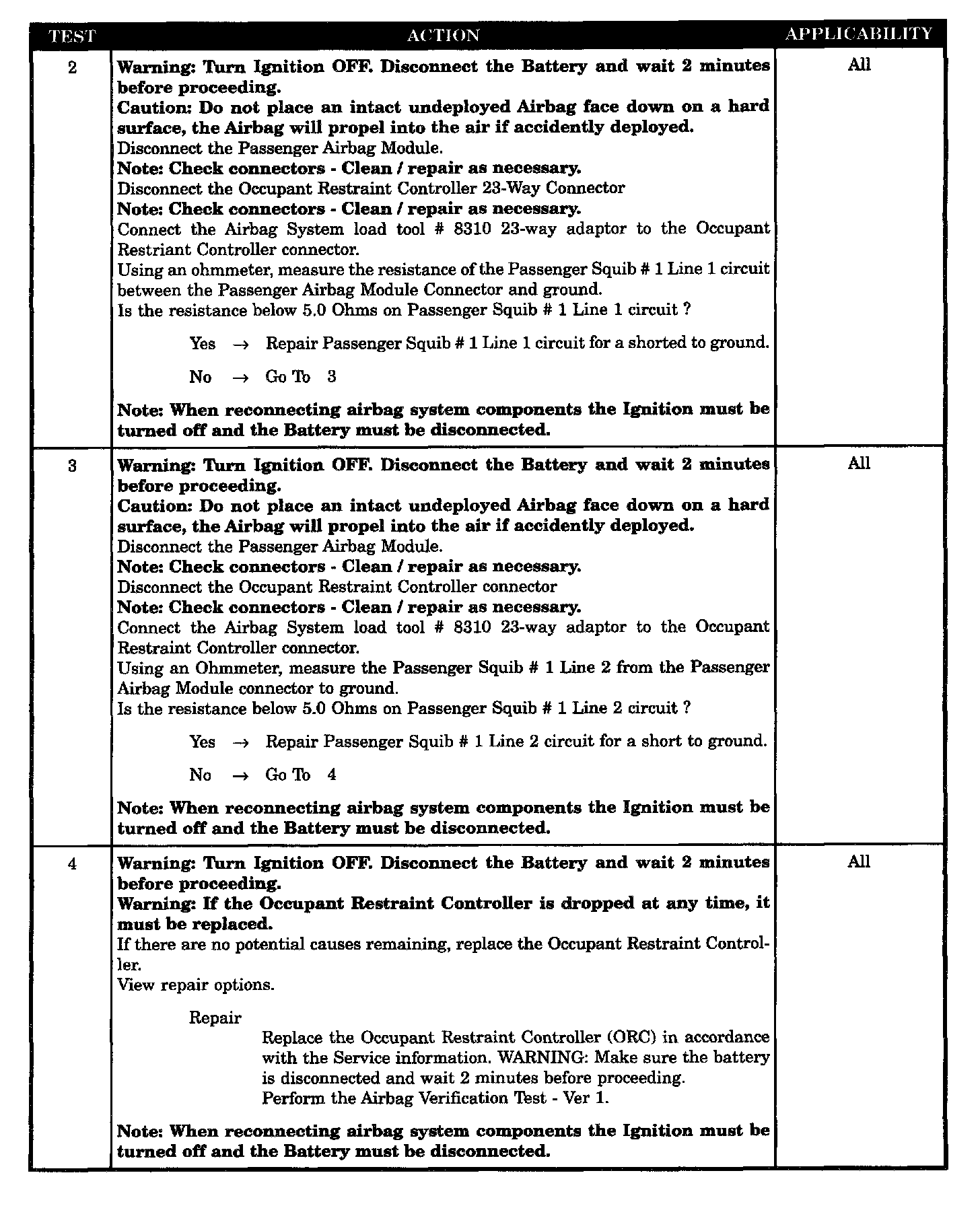

Test 2 - 4:

SYMPTOM
ORC, PASSENGER SQUIB #1 SHORTED TO GROUND (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib # 1 circuits for low resistance.

SET CONDITION
The ORC has detected a short to ground in the Passenger Squib # 1 circuits.

POSSIBLE CAUSES
- Passenger SQUIB # 1 line 1 shorted to ground
- Passenger airbag line 2 shorted to ground
- Passenger airbag module circuits shorted to ground
- ORC, passenger SQUIB # 1 circuits shorted to ground
