ORC Passenger Squib 1 Shorted to Battery (Active)

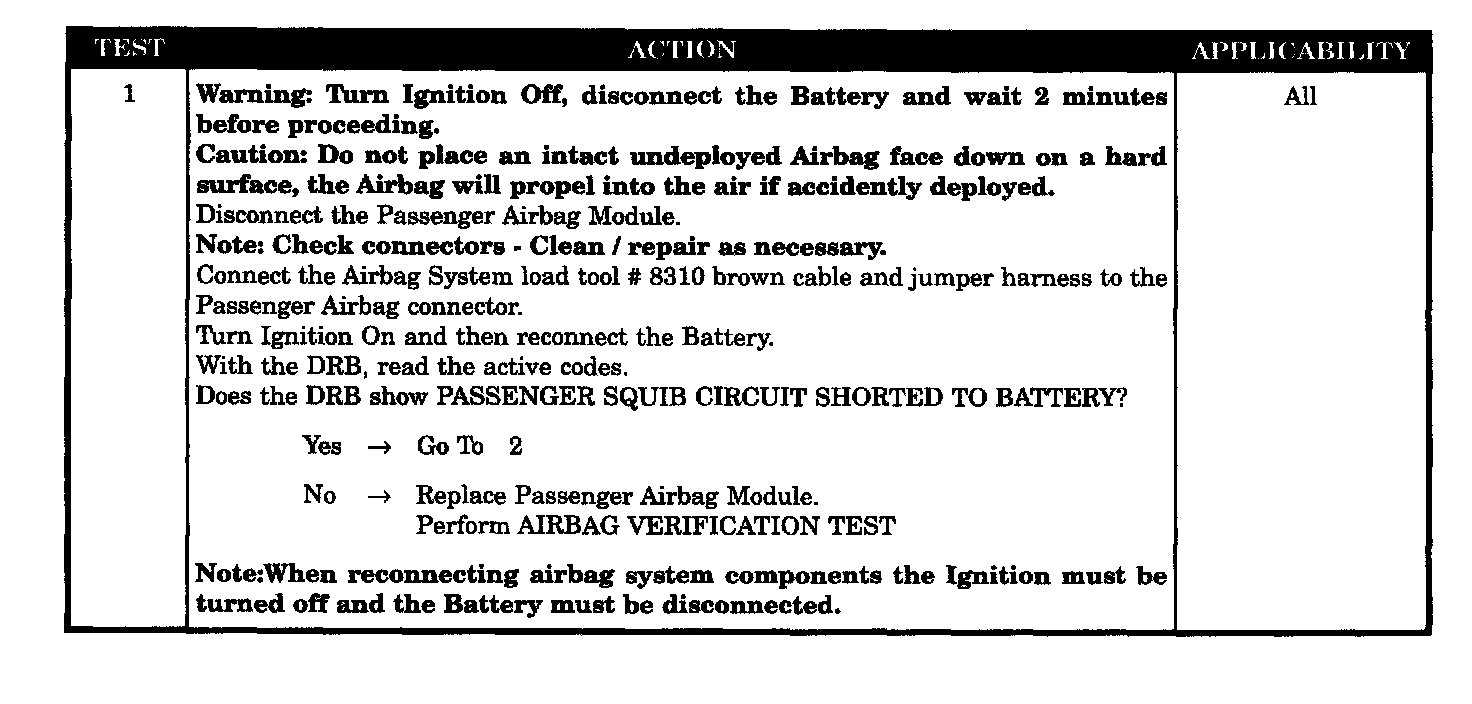

Test 1:

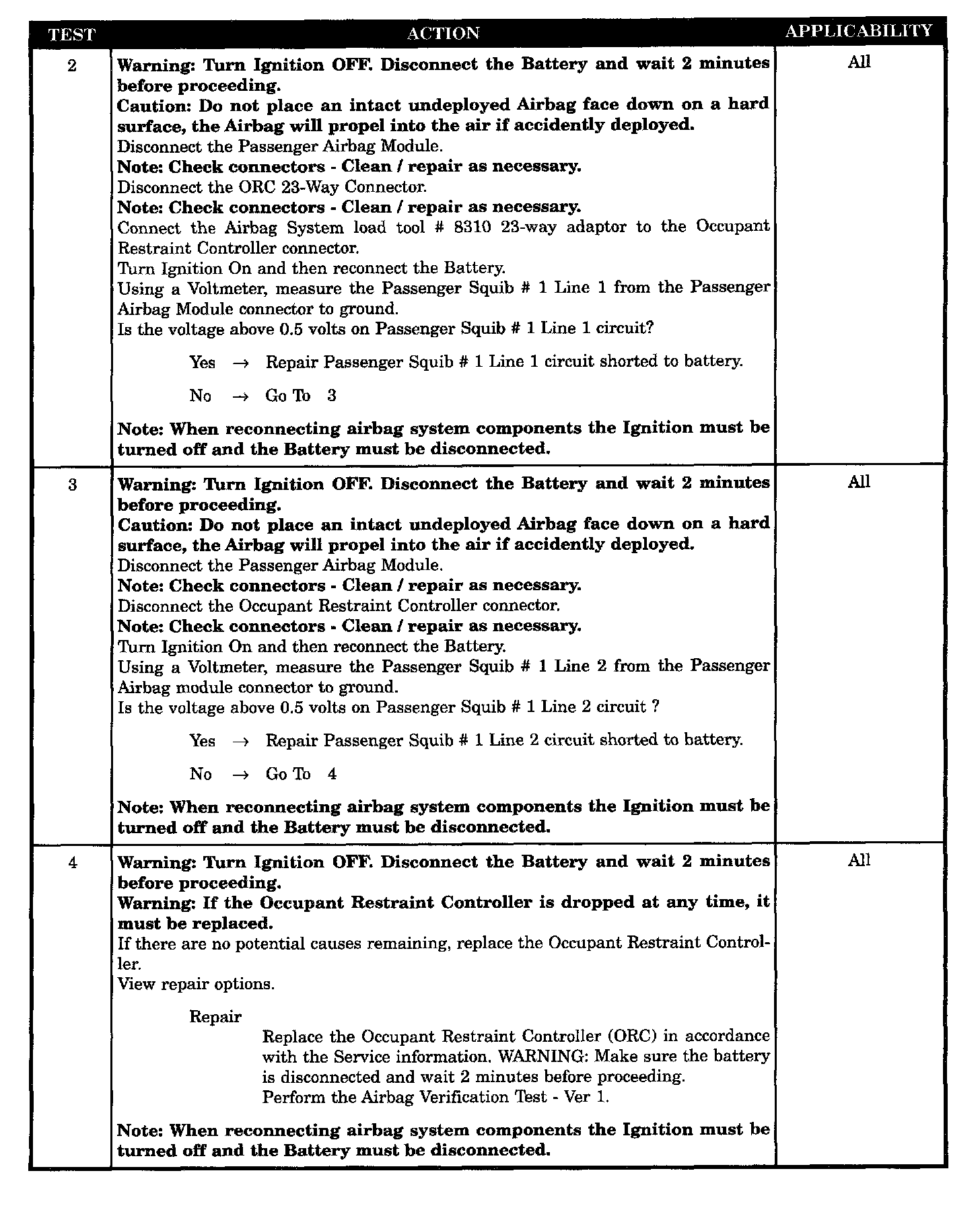

Test 2 - 4:

SYMPTOM
ORC, PASSENGER SQUIB #1 SHORTED TO BATTERY (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Passenger Squib # 1 circuits.

SET CONDITION
The ORC has detected high voltage on the Passenger Squib # 1 circuits.

POSSIBLE CAUSES
- Passenger SQUIB # 1 line 1 shorted to battery
- Passenger SQUIB # 1 line 2 shorted to battery
- Passenger airbag module circuits shorted to battery
- ORC, passenger SQUIB # 1 circuits shorted to battery
