ORC Passenger Squib 1 Circuit Shorted (Active)

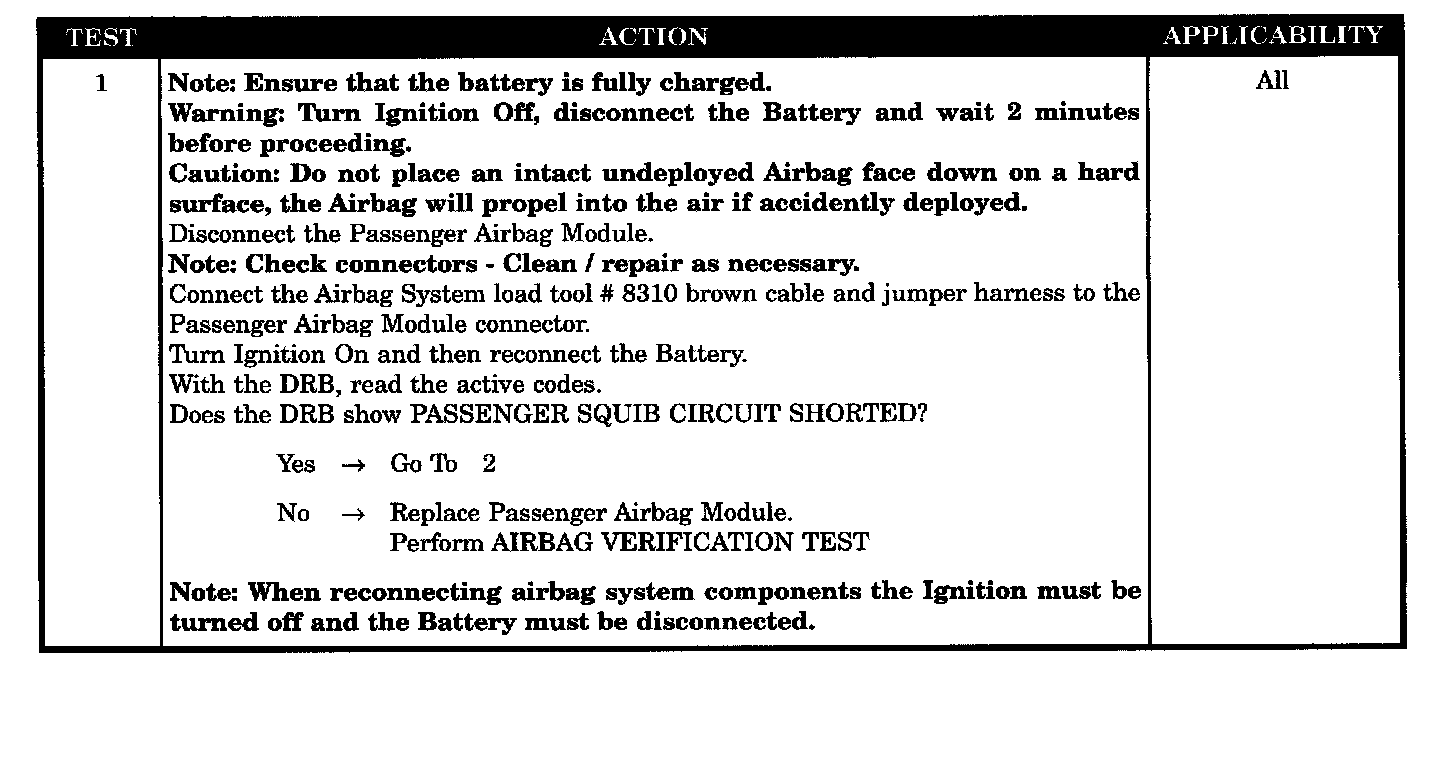

Test 1:

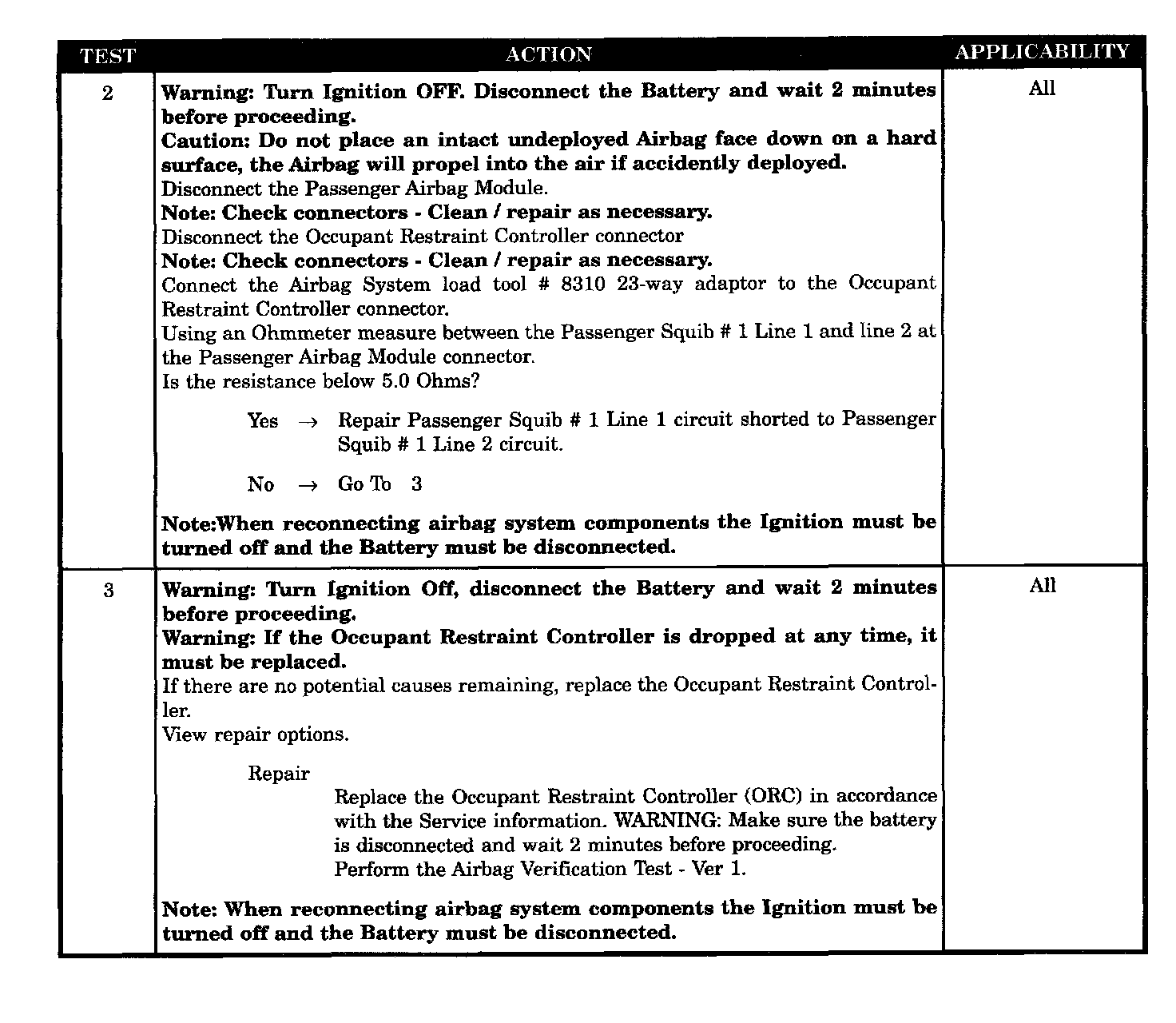

Test 2 - 3:

SYMPTOM
ORC, PASSENGER SQUIB #1 CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib # 1 circuits.

SET CONDITION
The ORC has detected low resistance in the Passenger Squib # 1 circuits.

POSSIBLE CAUSES
- Passenger SQUIB # 1 line 1 shorted to line 2
- Passenger airbag module circuits shorted
- ORC, passenger SQUIB # 1 line 1 circuit shorted to line 2
