ORC Passenger Squib 1 Circuit Open (Active)

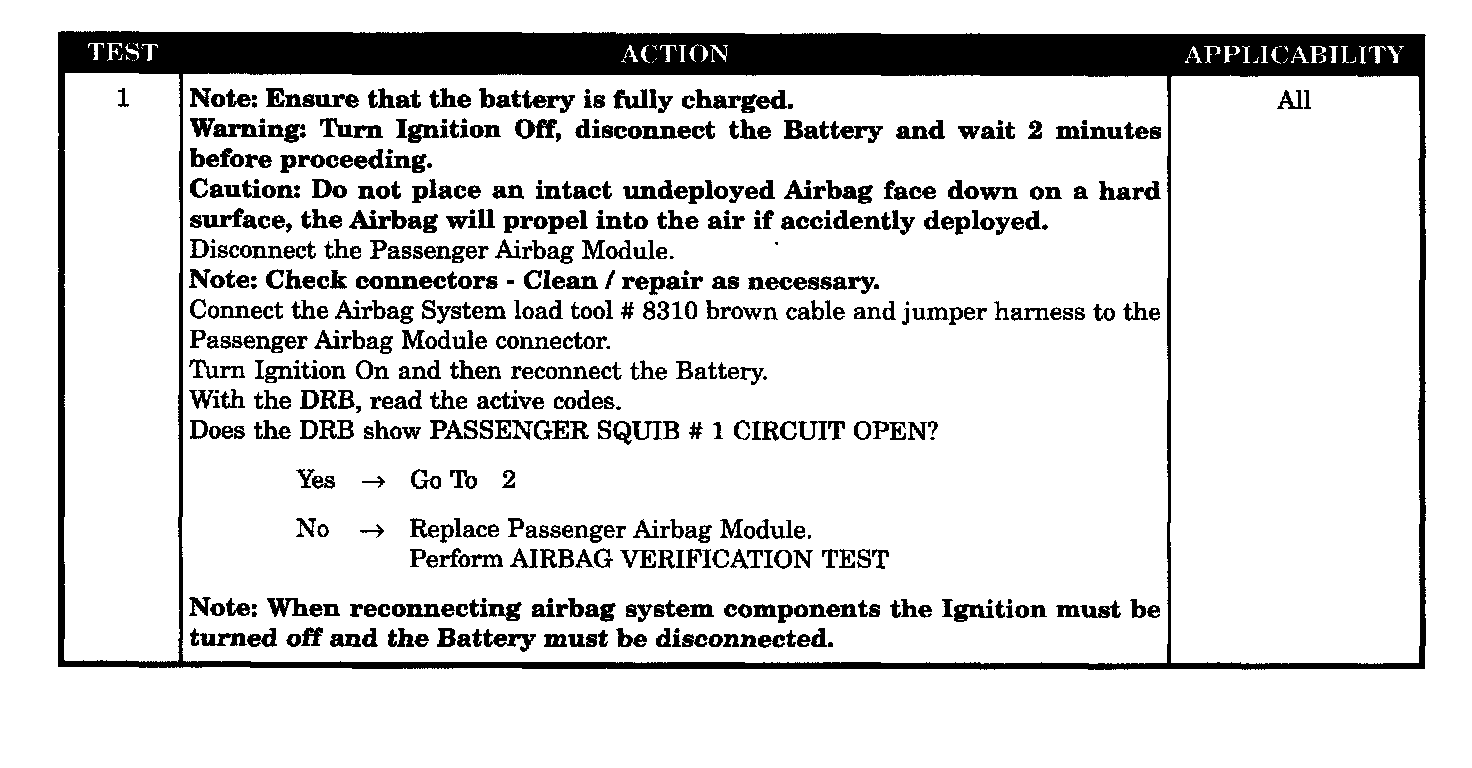

Test 1:

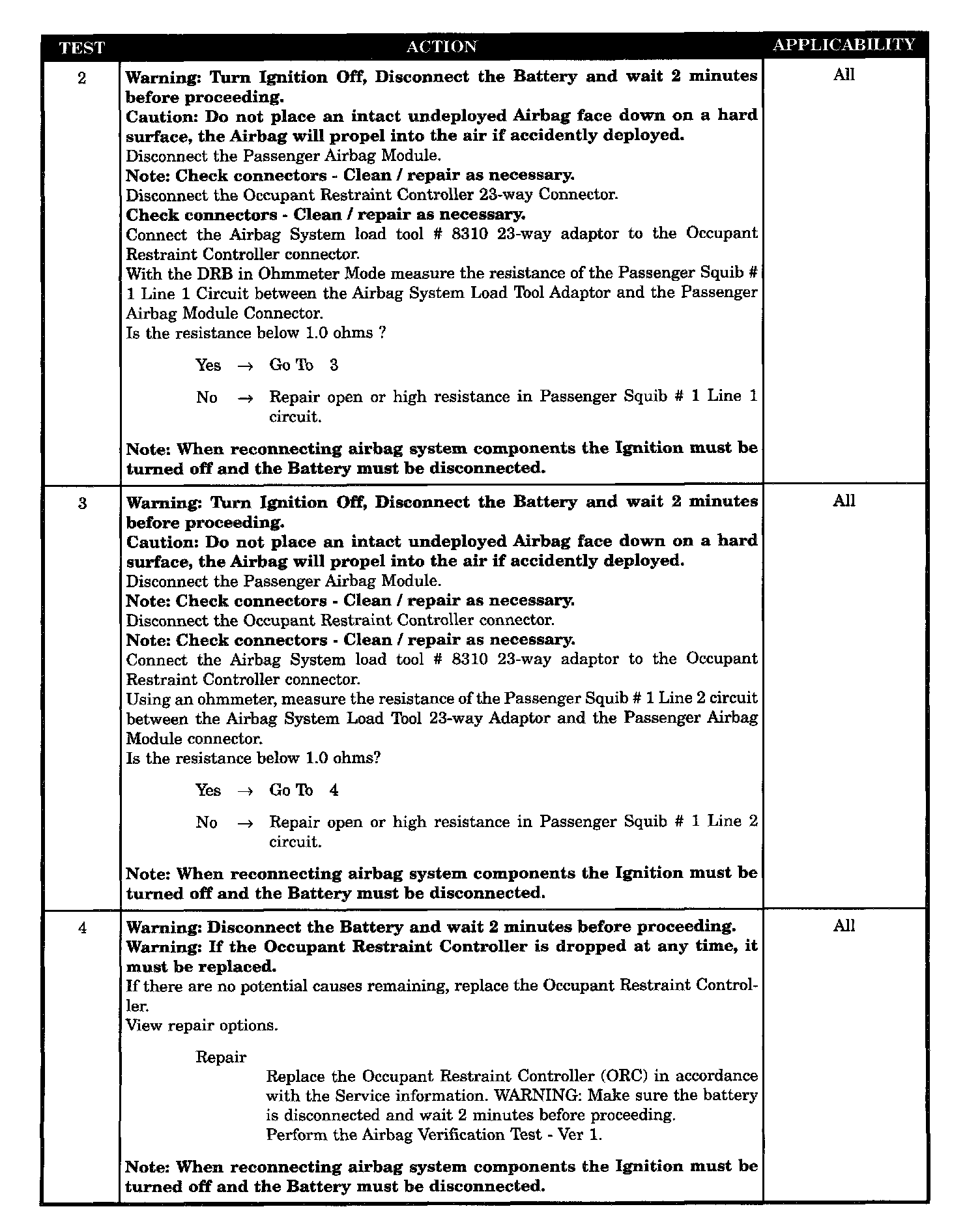

Test 2 - 4:

SYMPTOM
ORC, PASSENGER SQUIB #1 CIRCUIT OPEN (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib # 1 circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance on the Passenger Squib # 1 circuits.

POSSIBLE CAUSES
- Passenger SQUIB # 1 line 1 circuit open
- Passenger SQUIB # 1 line 2 circuit open
- Passenger airbag module circuits open
- ORC, passenger SQUIB # 1 circuits open
