ORC Loss of Ignition Run Only (Active)

Test 1 - 2:

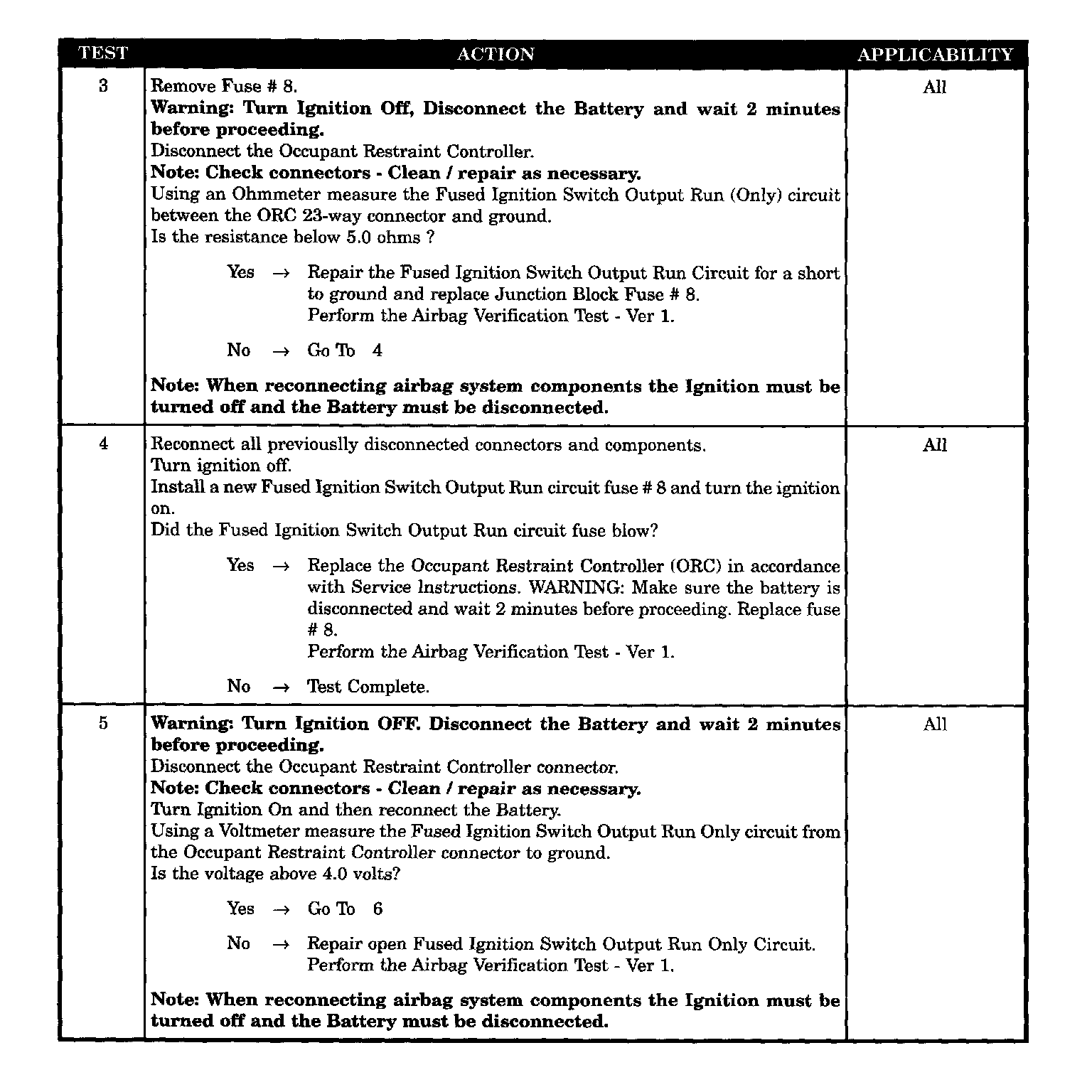

Test 3 - 5:

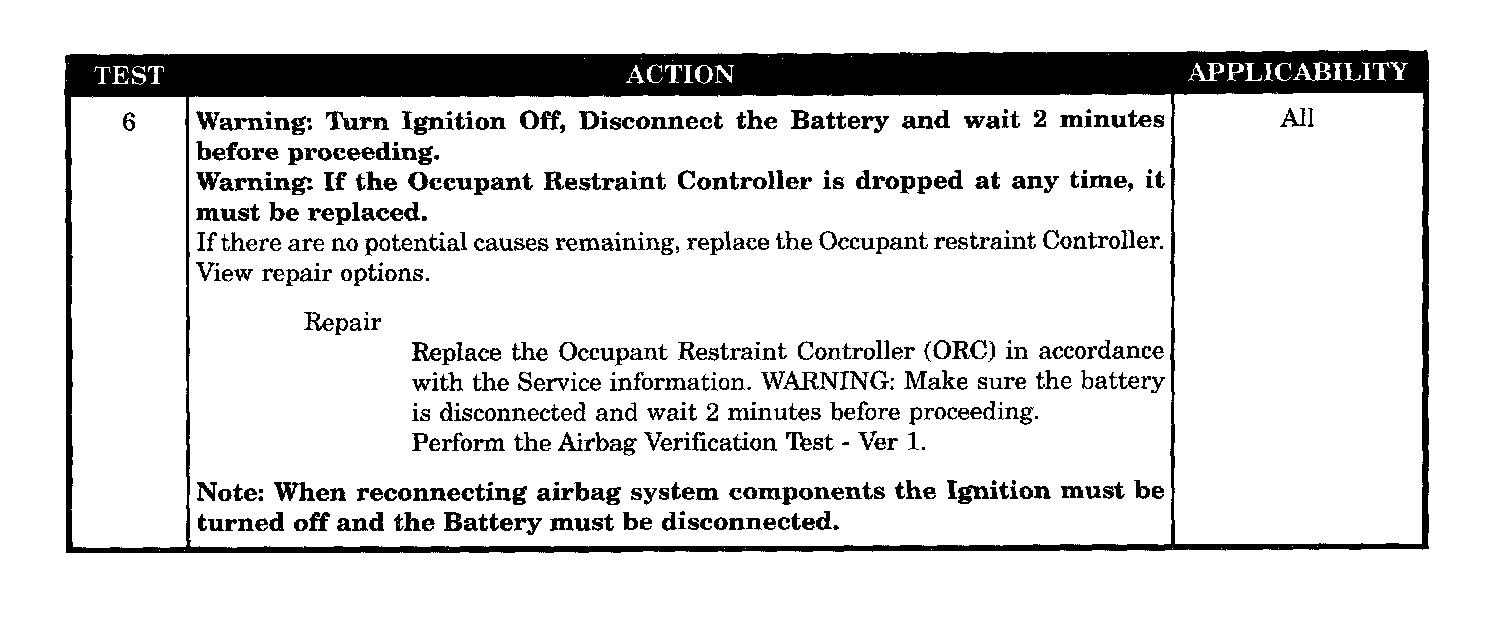

Test 6:

SYMPTOM
ORC, LOSS OF IGNITION RUN ONLY (ACTIVE)

WHEN MONITORED
With the ignition in the run only position the ORC monitors the Fused Ignition Switch Output Run circuit for proper system voltage.

SET CONDITION
If the voltage on the Fused Ignition Switch Output Run Only circuit drops below 4.5 volts, the code will set.

POSSIBLE CAUSES
- Ignition switch output run circuit
- Defective junction block fuse # 8
- Fused IGN SW output run CKT short to ground
- Fused ignition switch output run only circuit open
- ORC, fused IGN run CKT shorted to ground
- ORC, fused ignition switch output run only circuit open
