ORC Driver Squib 1 Shorted to Ground (Active)

Test 1:

Test 2 - 3:

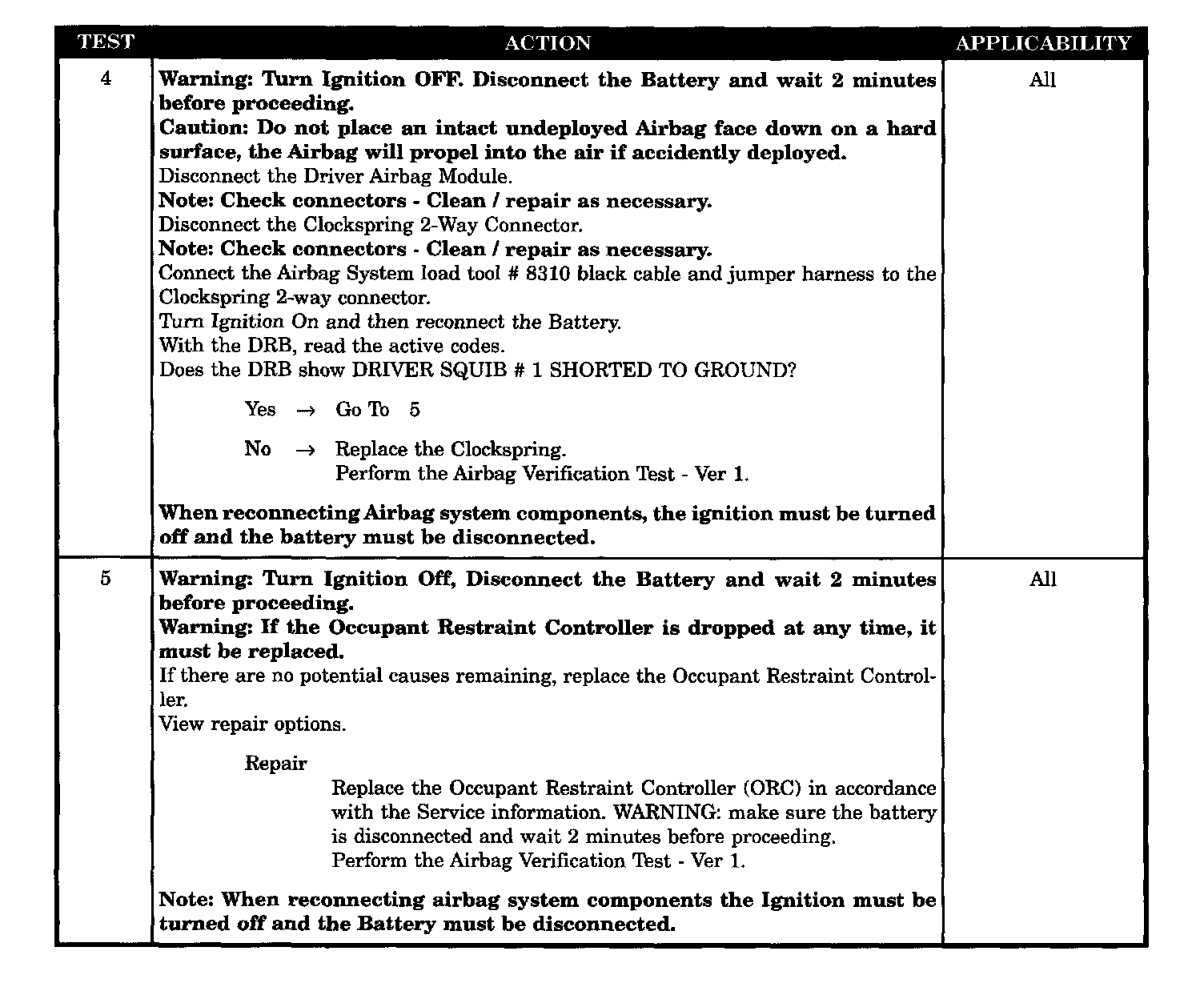

Test 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB #1 SHORTED TO GROUND (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib # 1 circuits

SET CONDITION
The ORC has detected a short to ground in the Driver Squib # 1 circuits

POSSIBLE CAUSES
- Driver SQUIB # 1 line 2 shorted to ground
- Driver SQUIB # 1 line 1 shorted to ground
- Clockspring SQUIB # 1 circuits shorted to ground
- Driver airbag module, circuits shorted to ground
- ORC, driver SQUIB #1 shorted to ground
