ORC Driver Squib 1 Shorted to Battery (Active)

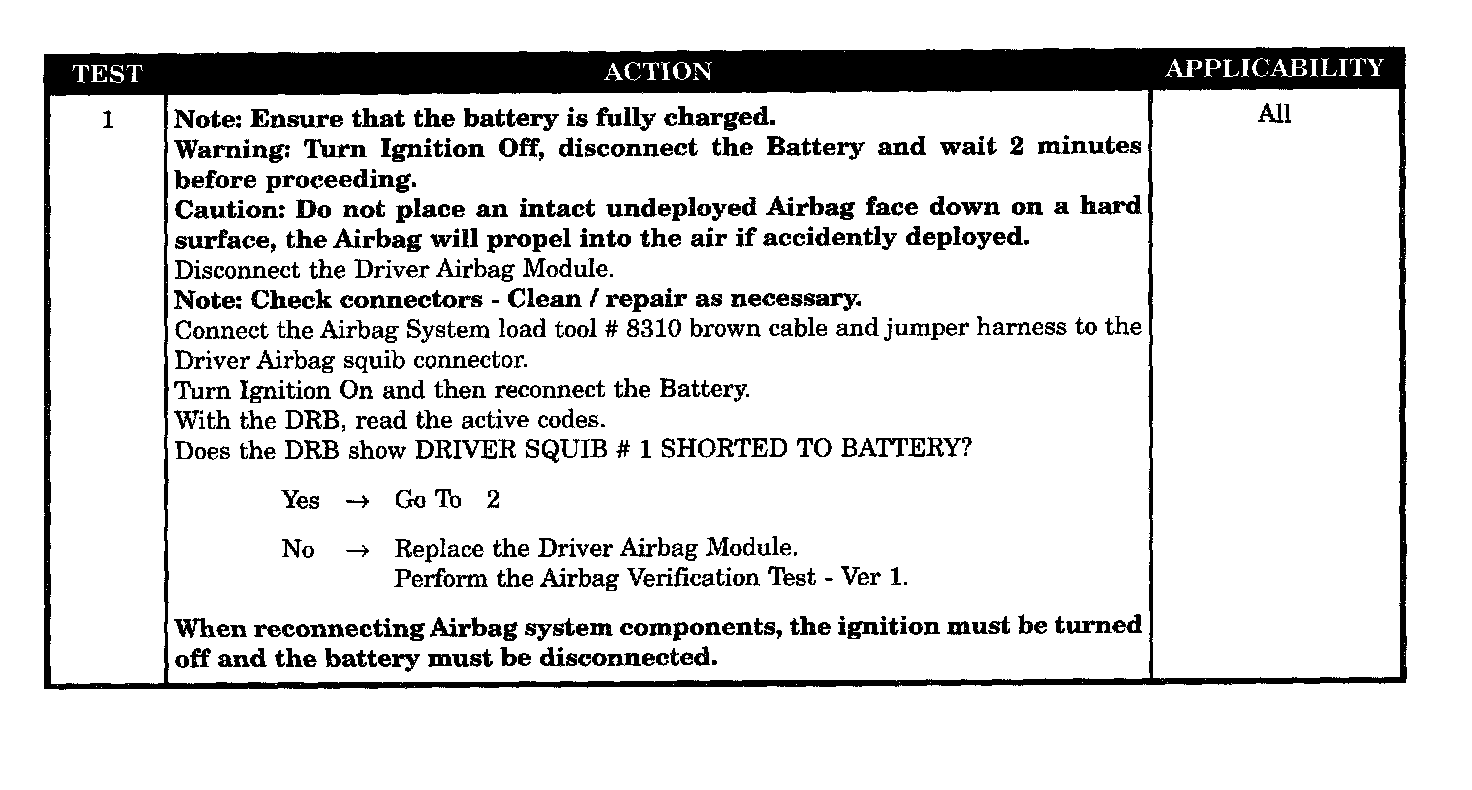

Test 1:

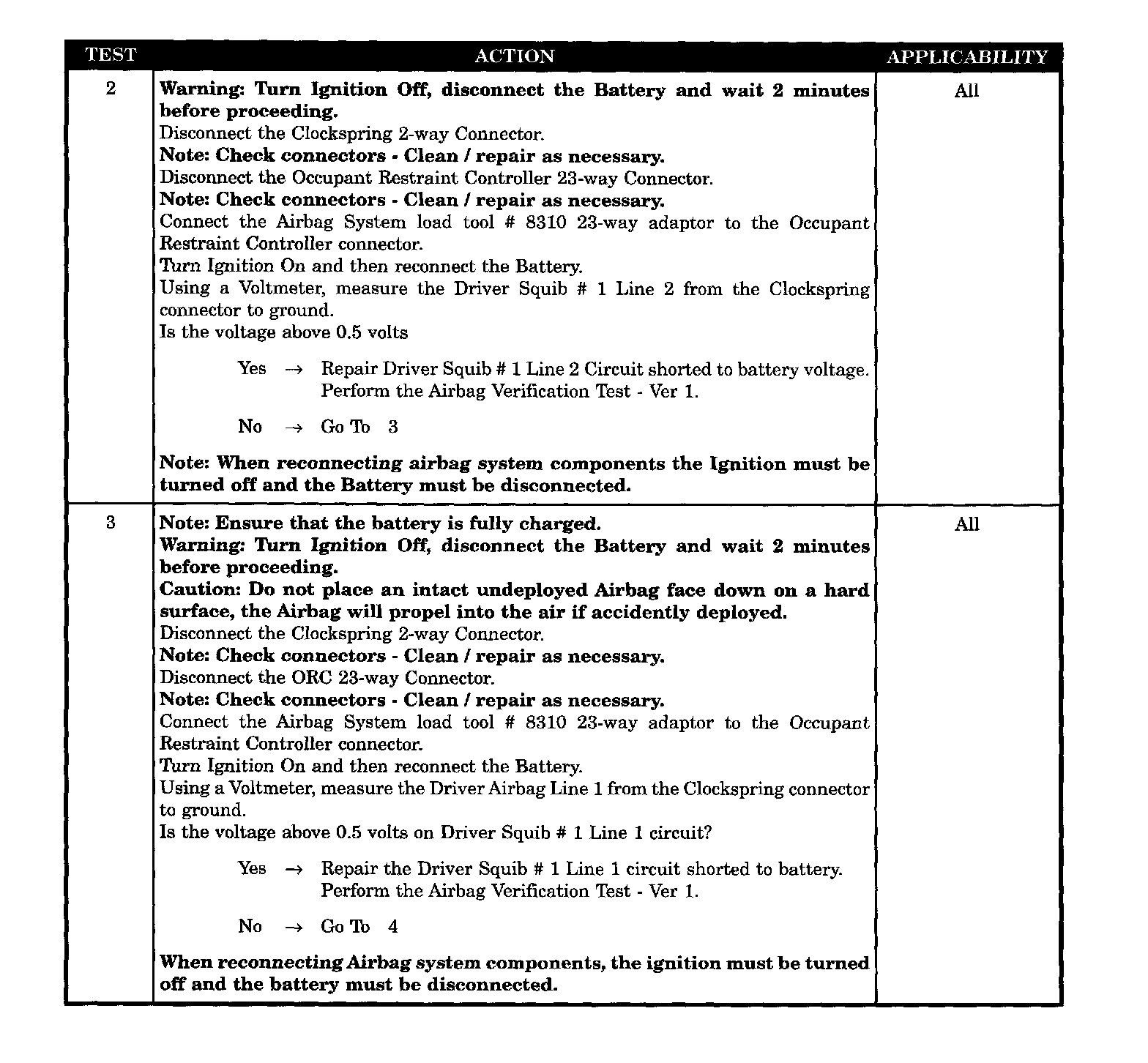

Test 2 - 3:

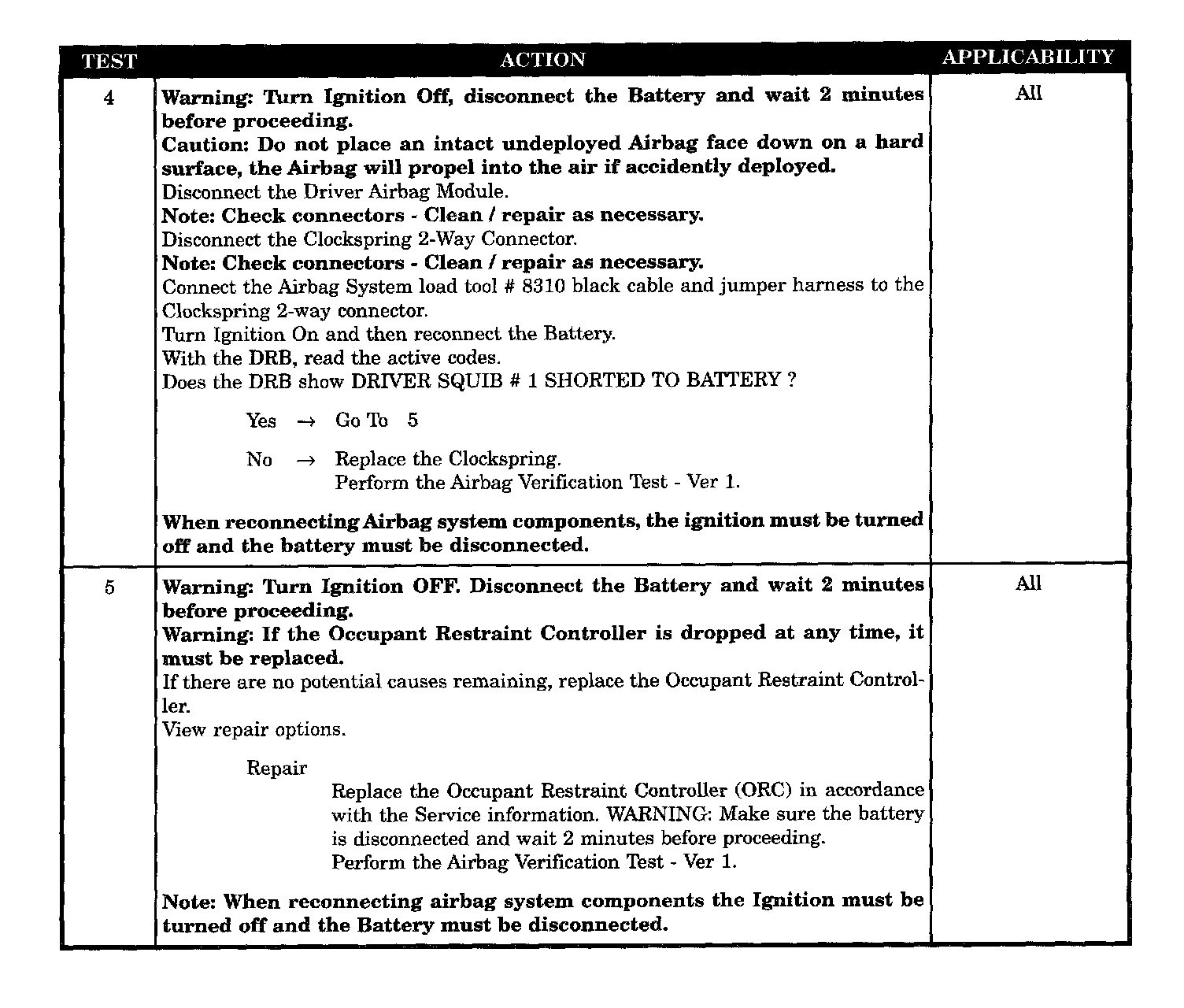

Test 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB #1 SHORTED TO BATTERY (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Driver Squib # 1 circuits.

SET CONDITION
The ORC has detected high voltage on the Driver Squib # 1 circuits.

POSSIBLE CAUSES
- Driver SQUIB # 1 line 2 shorted to battery
- Driver SQUIB # 1 line 1 shorted to battery
- Clockspring SQUIB # 1 circuits shorted to battery
- Driver airbag module short to battery
- ORC, driver SQUIB # 1 circuits shorted to battery
