ORC Driver Squib 1 Circuit Shorted (Active)

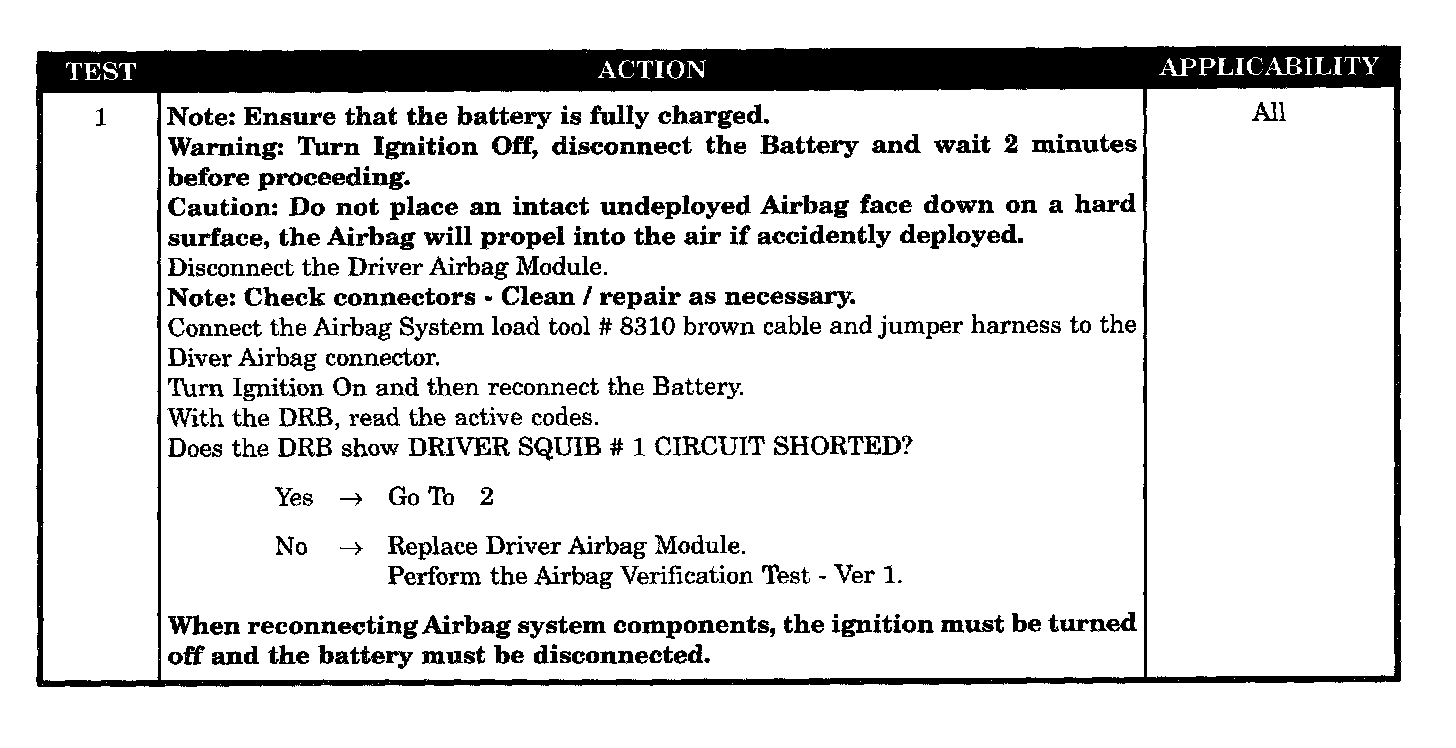

Test 1:

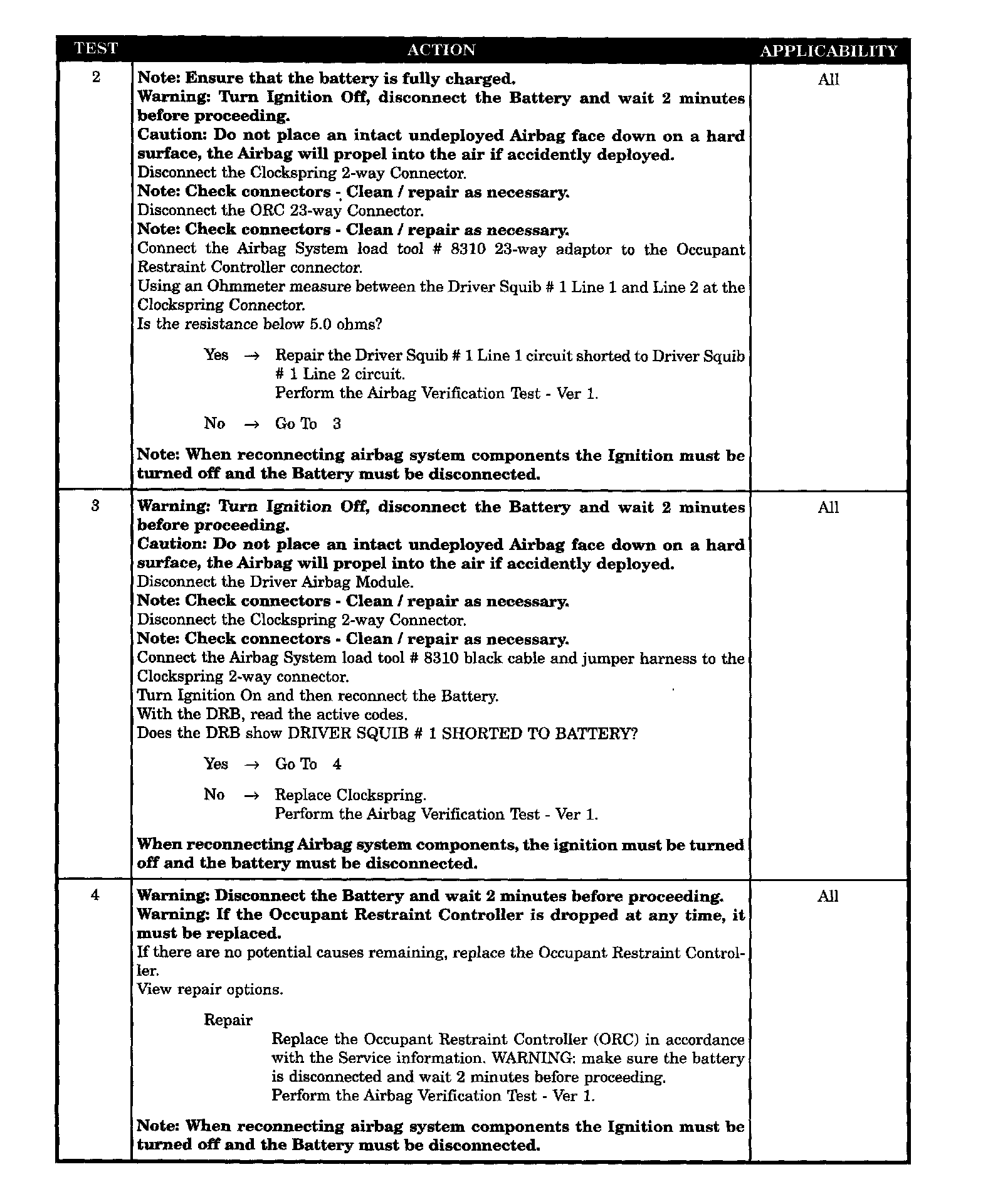

Test 2 - 4:

SYMPTOM
ORC, DRIVER SQUIB #1 CIRCUIT SHORTED (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib # 1 circuits.

SET CONDITION
The ORC has detected low resistance on the Driver Squib # 1 circuits.

POSSIBLE CAUSES
- Driver SQUIB # 1 line 1 shorted to line 2
- Clockspring, driver SQUIB # 1 line 1 shorted to line 2
- Driver airbag module line 1 shorted to line 2
- ORC, driver SQUIB # 1 circuits shorted
