ORC Driver Squib 1 Circuit Open (Active)

Test 1:

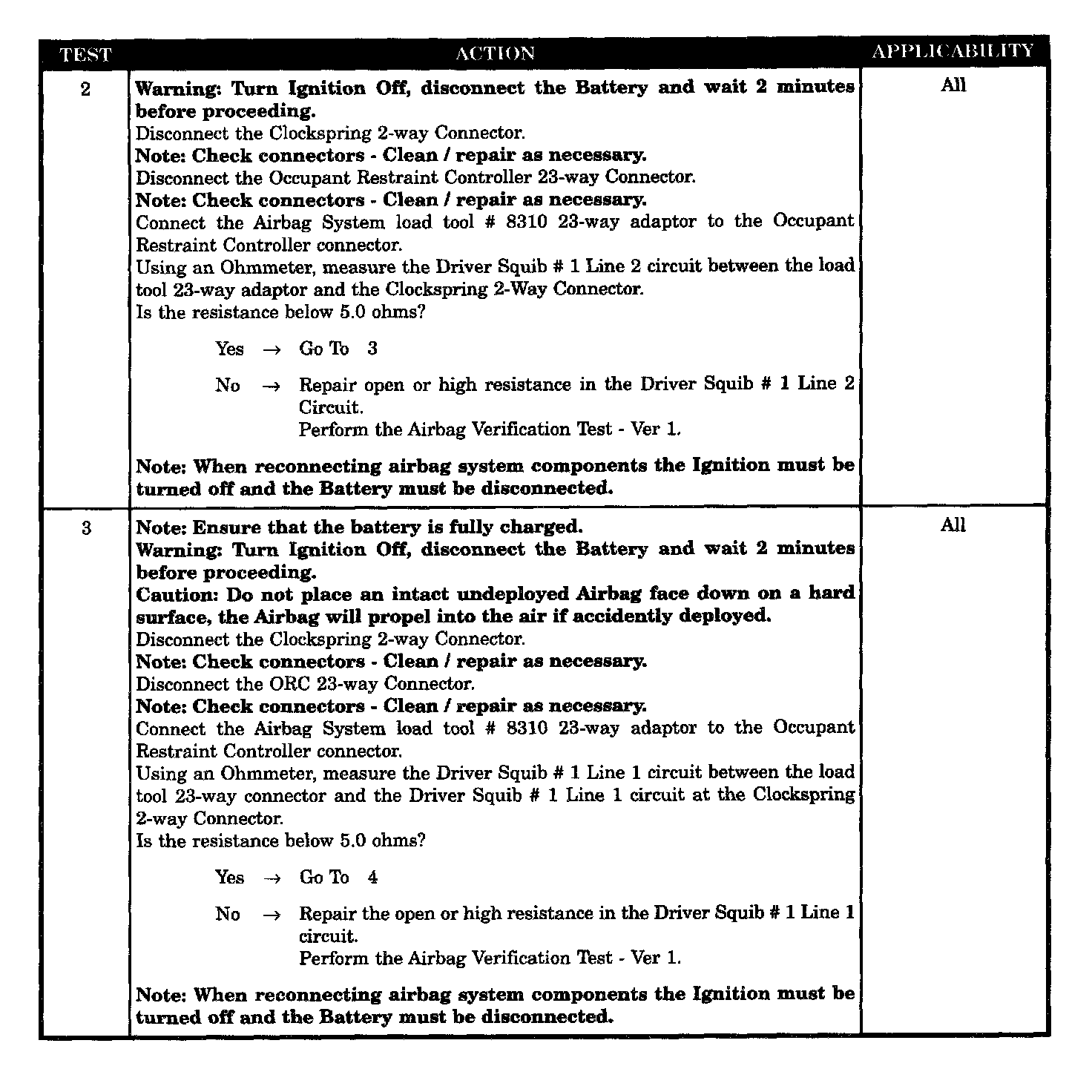

Test 2 - 3:

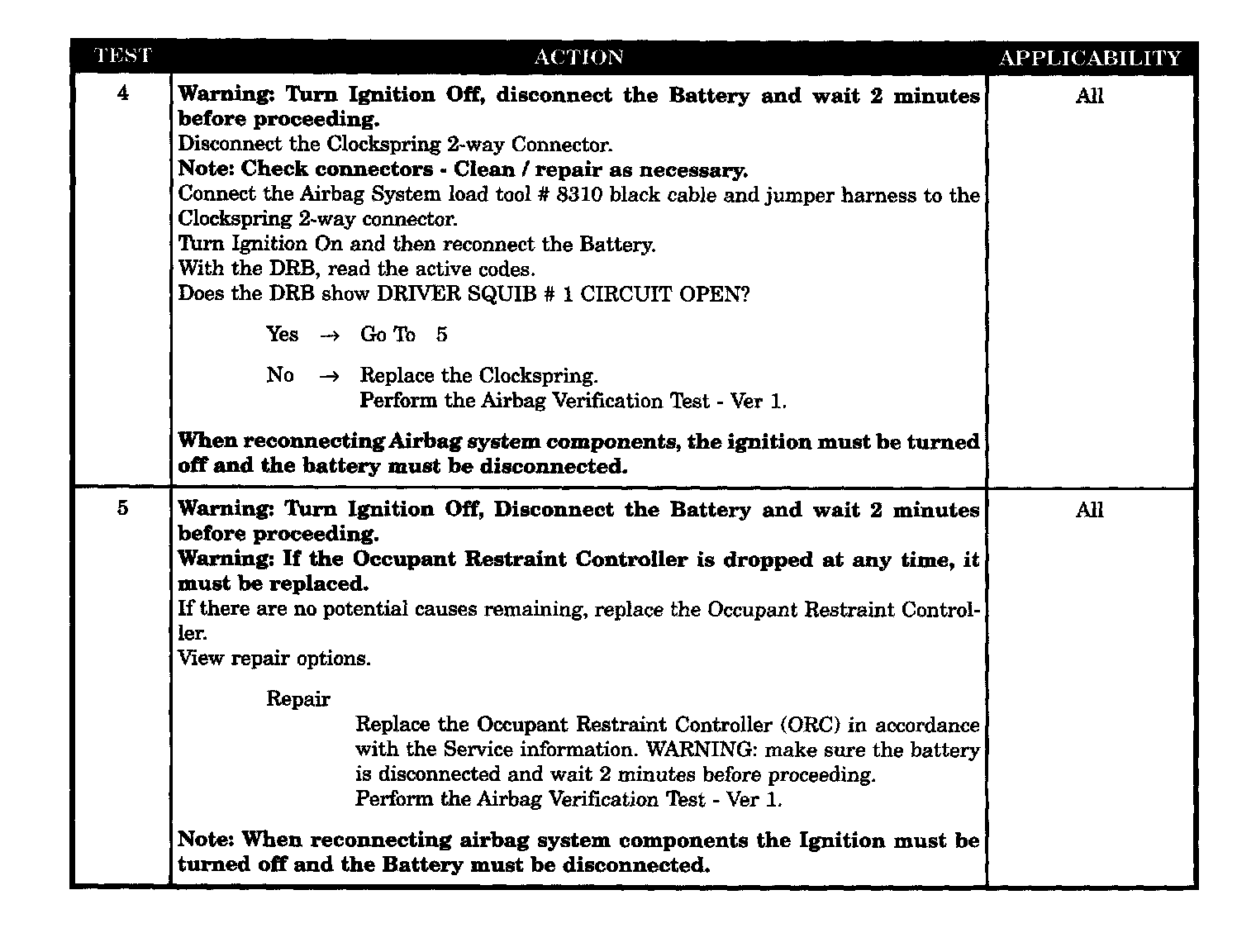

Test 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB #1 CIRCUIT OPEN (ACTIVE)

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib # 1 circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance in the Driver Squib # 1 circuits.

POSSIBLE CAUSES
- Driver SQUIB # 1 line 2 circuit open
- Driver SQUIB # 1 line 1 circuit open
- Clockspring driver SQUIB # 1 circuits open
- Driver airbag module circuit open
- ORC, driver SQUIB # 1 circuit open
