RKE Horn Chirp Inoperative
RKE Horn Chirp Inoperative

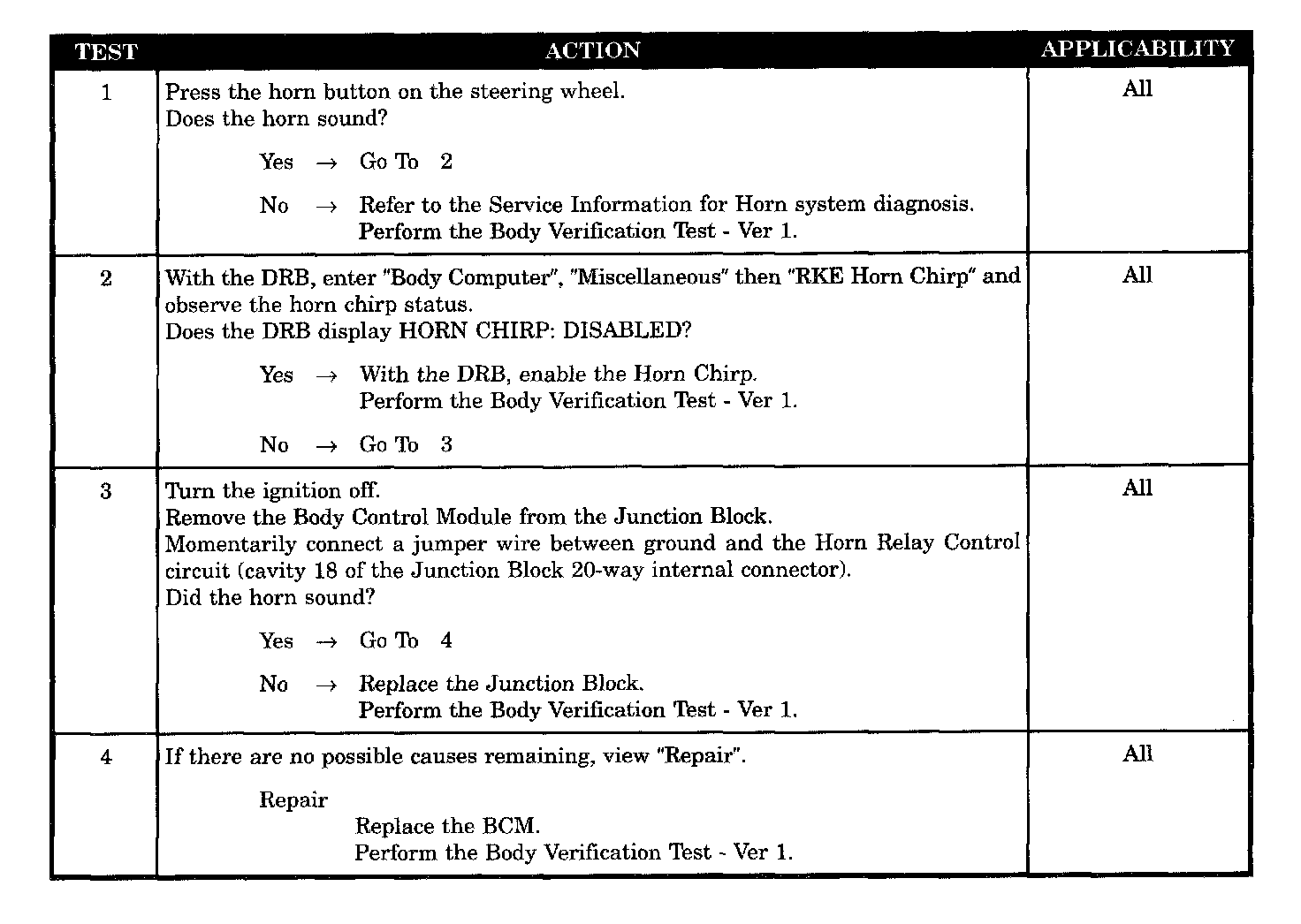

Test 1 - 4:
SYMPTOM
RKE HORN CHIRP INOPERATIVE
POSSIBLE CAUSES
-
Junction Block-horn Relay Control Circuit Open
-
Body Control Module
-
Check the Horn Operation
-
Check the RKE Horn Chirp Status
