Power Door Locks/RKE
>>
Driver Front Door Failing to Lock From Any Switch
Driver Front Door Failing to Lock From Any Switch

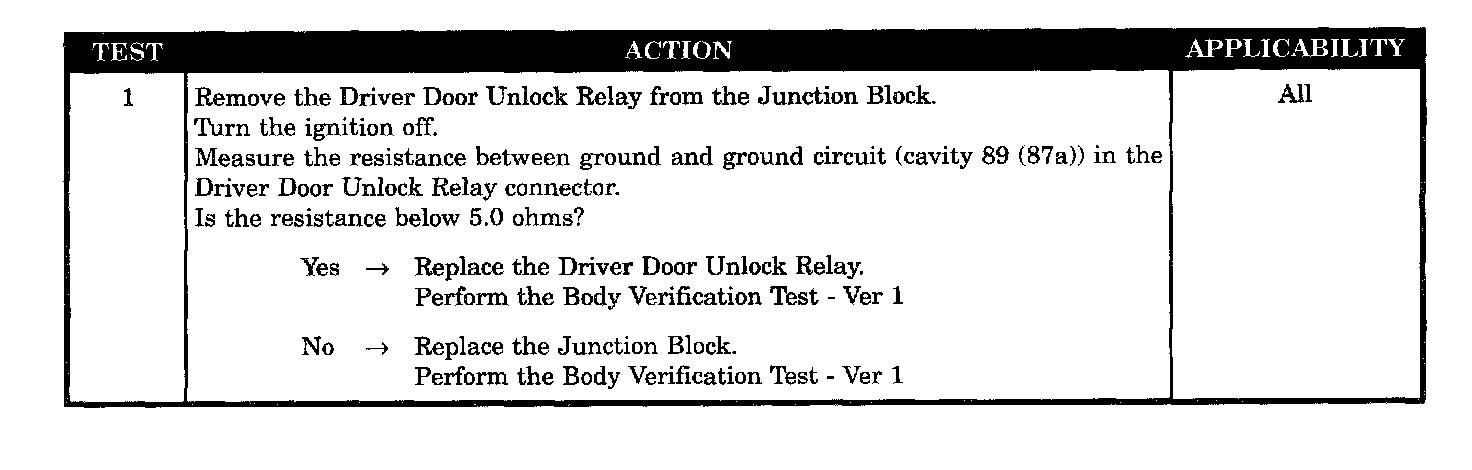

Test 1:
SYMPTOM
DRIVER FRONT DOOR FAILING TO LOCK FROM ANY SWITCH
POSSIBLE CAUSES
-
Junction Block Ground Open
-
Driver Door Unlock Relay
